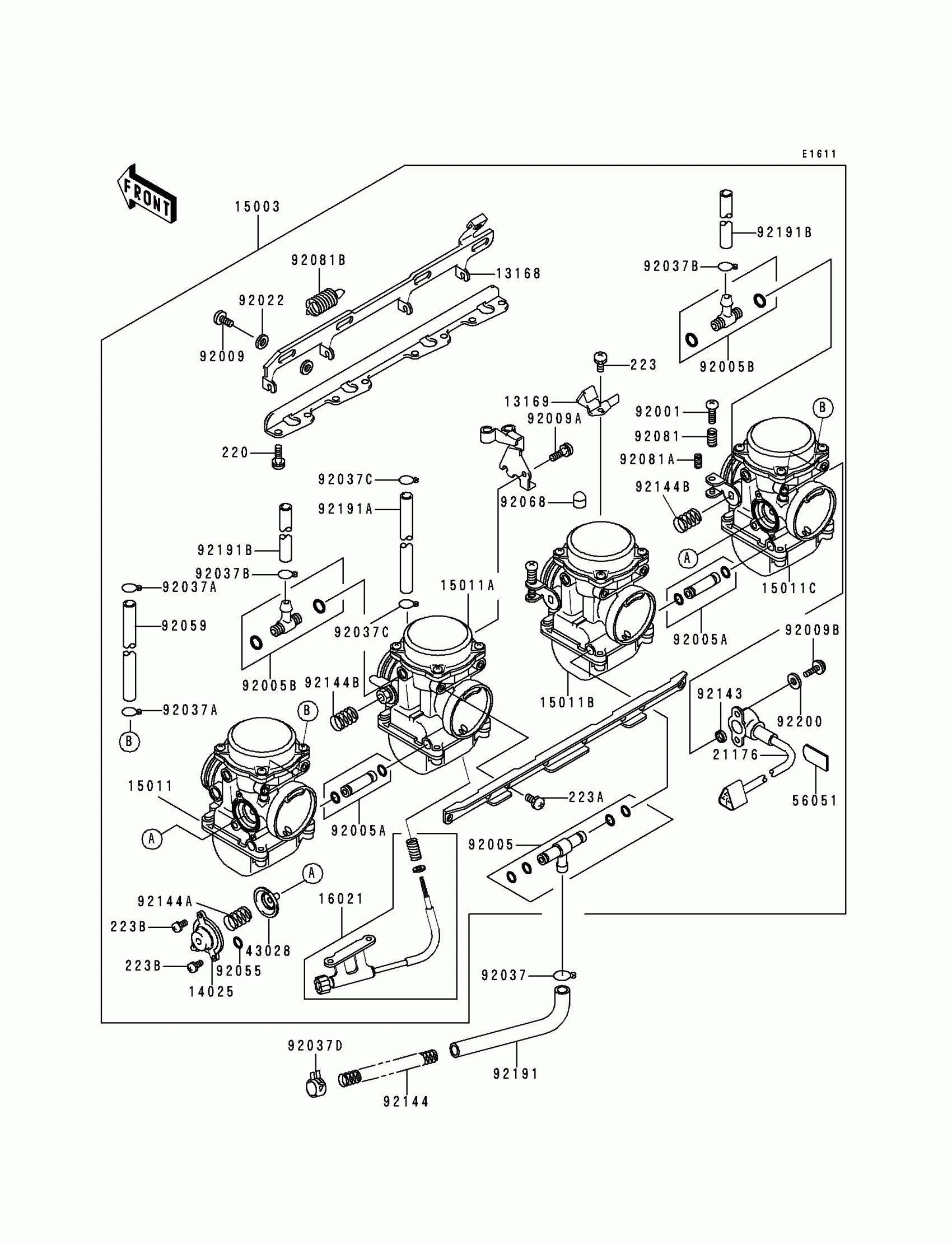

Kawasaki ZRX1100 Carburetor Diagram

#

Description
Price

220

SCREW-PAN-CROS,6X16

220B0616

Unavailable

13168

LEVER,STARTER

13168-1245

$125.91

13169

PLATE,STARTER CABLE

13169-1871

Unavailable

14025

COVER,AIR CUT VALVE

14025-1903

$59.59

15003

CARBURETOR-ASSY

15003-1460

Unavailable

15011

CARBURETOR,LH,OUTSIDE

15011-1615

Unavailable

15011A

CARBURETOR,LH,INSIDE

15011-1616

$628.58

15011B

CARBURETOR,RH,INSIDE

15011-1617

$628.58

15011C

CARBURETOR,RH,OUTSIDE

15011-1618

$628.58

16021

SCREW-THROTTLE STOP

16021-1204

Unavailable

21176

SENSOR,THROTTLE

21176-1073

$501.95

43028

DIAPHRAGM,4.9MM,AIR CUT VALVE

43028-1084

Unavailable

56051

MARK,K-TRIC

56051-1480

$19.42

92001

BOLT,THROTTLE ADJUST

92001-1998

$15.88

92005

FITTING

92005-1288

$31.60

92005A

FITTING

92005-1310

$30.97

92005B

FITTING

92005-1314

$36.95

92009

SCREW

92009-1262

$5.25

92009A

SCREW,5X10

92009-1365

$5.61

92009B

SCREW

92009-1781

$2.25

92022

WASHER,6.1X11X0.8,POLYACETAL

92022-1199

$3.67

92037

CLAMP-HOSE

92037-1104

$1.09

92037A

CLAMP,TUBE

92037-1142

$3.29

92037B

CLAMP,TUBE

92037-1185

$4.64

92037C

CLAMP,TUBE

92037-1201

$3.51

92037D

CLAMP

92037-2082

$1.09

92055

RING-O

92055-1245

$4.23

92059

TUBE,3.5X6.5X180

92059-1140

$21.76

92068

PLUG,12X25

92068-006

$3.25

92081

SPRING

92081-1620

$3.78

92081A

SPRING,THROTTLE ADJUST LWR

92081-1621

$3.95

92081B

SPRING,STARTER LEVER

92081-1762

$22.88

92143

COLLAR

92143-1907

$7.24

92144

SPRING,FUEL TUBE

92144-1874

$6.12

92144A

SPRING

92144-1885

$12.36

92144B

SPRING,THROTTLE ADJUST CNT

92144-1986

Unavailable

92191

TUBE,FUEL

92191-1007

$10.12

92191A

TUBE

92191-1017

$8.67

92191B

TUBE,AIR VENT

92191-1118

$38.81

92200

WASHER

92200-1369

$4.10

223

SCREW-PAN-WS-CROS,4X20

223C0420

Unavailable

223A

SCREW-PAN-WS-CROS,5X10

223C0510

$3.14

223B

SCREW-PAN-WS-CROS,4X8

223D0408

$1.00
