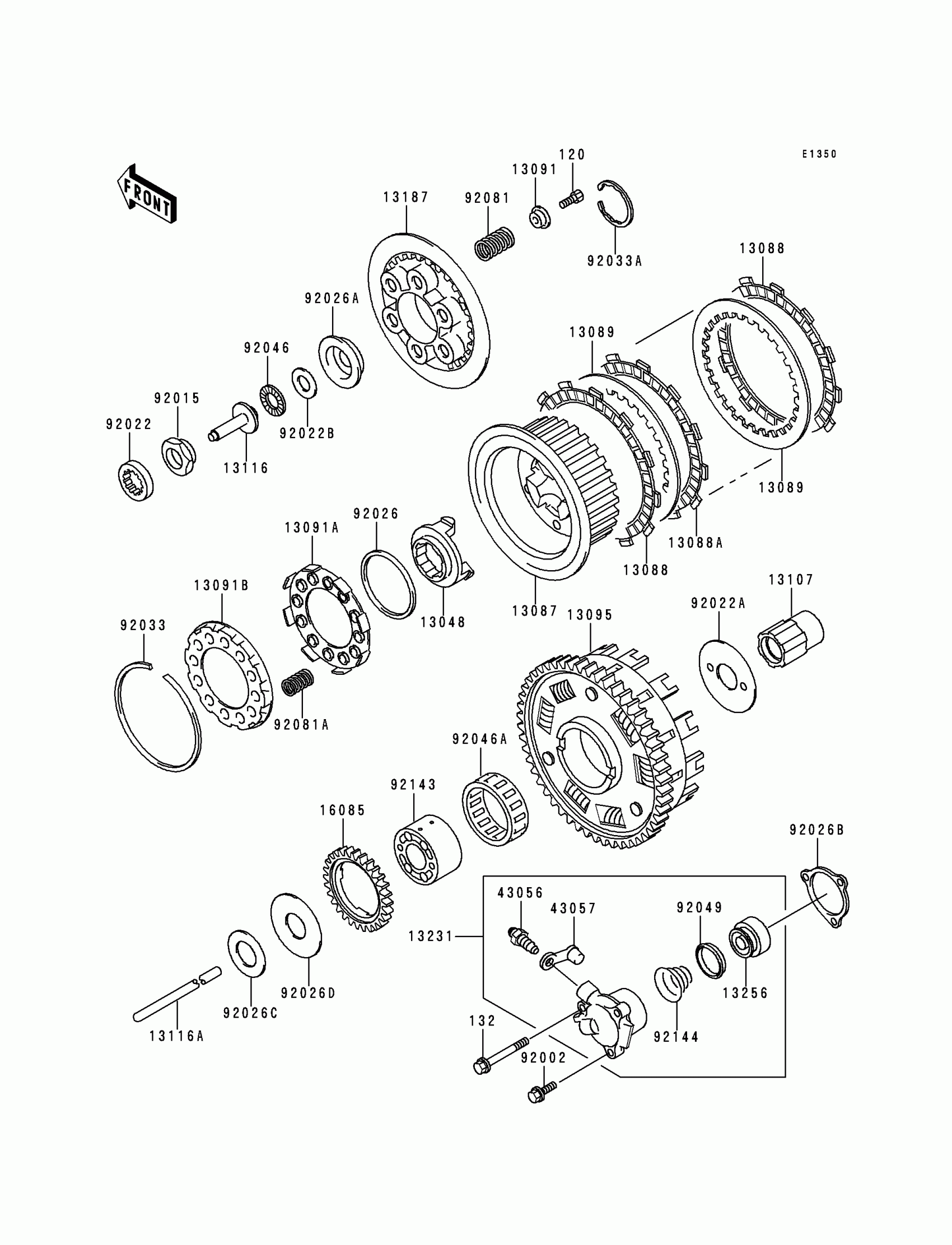

Kawasaki ZRX1100 Clutch Diagram

#

Description
Price

120

BOLT-SOCKET,6X16

120Q0616

Unavailable

132

BOLT-FLANGED-SMALL

132J0680

$5.55

13048

CAM-DAMPER

13048-1007

$91.65

13087

HUB-CLUTCH

13087-1171

$164.61

13088

PLATE-FRICTION

13088-040

$12.57

13088A

PLATE-FRICTION

13088-1087

$20.06

13089

PLATE-CLUTCH,T=2.3

13089-1004

$13.16

13091

HOLDER,CLUTCH SPRING

13091-1041

$12.23

13091A

HOLDER,DAMPER SPRING,RH

13091-1042

$25.81

13091B

HOLDER,DAMPER SPRING,LH

13091-1043

$25.81

13095

HOUSING-COMP-CLUTCH

13095-1356

Unavailable

13107

SHAFT,CLUTCH

13107-1299

$78.57

13116

ROD-PUSH,CLUTCH

13116-1102

$36.78

13116A

ROD-PUSH,CLUTCH

13116-1140

Unavailable

13187

PLATE-CLUTCH OPERATING

13187-1082

Unavailable

13231

RELEASE-ASSY-CLUTCH

13231-1072

$127.11

13256

PISTON

13256-1052

$59.07

16085

GEAR,OIL PUMP,37T

16085-1235

$141.10

43056

BREATHER

43056-1052

$14.30

43057

CAP-BREATHER

43057-1001

$4.91

92002

BOLT,6X25

92002-1344

Unavailable

92015

NUT,20MM

92015-1555

$13.08

92022

WASHER,TOOTHED,25X40X5

92022-1114

$14.90

92022A

WASHER,CLUTCH THRUST

92022-1221

$15.04

92022B

WASHER,15.1X29X1.0

92022-1463

$5.00

92026

SPACER,59X70X3.5

92026-1043

$27.73

92026A

SPACER,CLUTCH

92026-1202

$43.03

92026B

SPACER,CLUTCH RELEASE

92026-1263

$16.69

92026C

SPACER,25X45X2.0

92026-1306

$18.25

92026D

SPACER,25X62X2.0

92026-1307

$18.25

92033

RING-SNAP

92033-1029

$15.74

92033A

RING-SNAP,50MM

92033-1177

$8.79

92046

BEARING-NEEDLE,AXK1102

92046-1052

$14.47

92046A

BEARING-NEEDLE,K550X62X18

92046-1200

$37.59

92049

SEAL-OIL,PISTON

92049-1165

$19.64

92081

SPRING,CLUTCH

92081-1114

$7.55

92081A

SPRING,CLUTCH DAMPER

92081-1115

$7.55

92143

COLLAR,CLUTCH

92143-1429

$83.37

92144

SPRING,CLUTCH RELEASE

92144-1084

$8.51
