Description

Price

220

SCREW-PAN-CROS,4X14

220D0414

$4.60

225

SCREW-PAN-WSP-CROS,4X18

225C0418

$4.01

13280

HOLDER,NEEDLE JET

13280-1054

$34.37

16005

TOP-CHAMBER,MIXING

16005-1054

$45.23

16007

SEAT-SPRING,VALVE

16007-1117

$25.03

16009

NEEDLE-JET,N3RK

16009-1944

$42.62

16014

SCREW-PILOT AIR

16014-1080

$22.09

16016

PLUNGER,STARTER

16016-1090

$66.52

16017

JET-NEEDLE

16017-1265

Unavailable

16030

VALVE-FLOAT

16030-1057

$47.13

16031

FLOAT

16031-1077

$53.59

16044

CLAMP,FLOAT VALVE

16044-007

$7.91

16126

VALVE,VACUUM

16126-1338

$195.63

92009

SCREW,DRAIN,M6X0.75

92009-1551

$9.91

92055

RING-O,FLOAT CHAMBER

92055-1222

$17.44

92063

JET-MAIN,#95

92063-1001

$15.04

92063A

JET-MAIN,#90

92063-1003

$14.79

92063B

JET-MAIN,#92

92063-1004

$15.04

92063C

JET-MAIN,#98

92063-1005

$15.04

92063D

JET-MAIN,#100

92063-1008

$15.04

92064

JET-PILOT,#35

92064-1101

$17.03

92066

PLUG,PILOT AIR SCREW,6.9X2

92066-1051

$5.05

92145

SPRING,VACUUM VALVE

92145-1064

$29.95

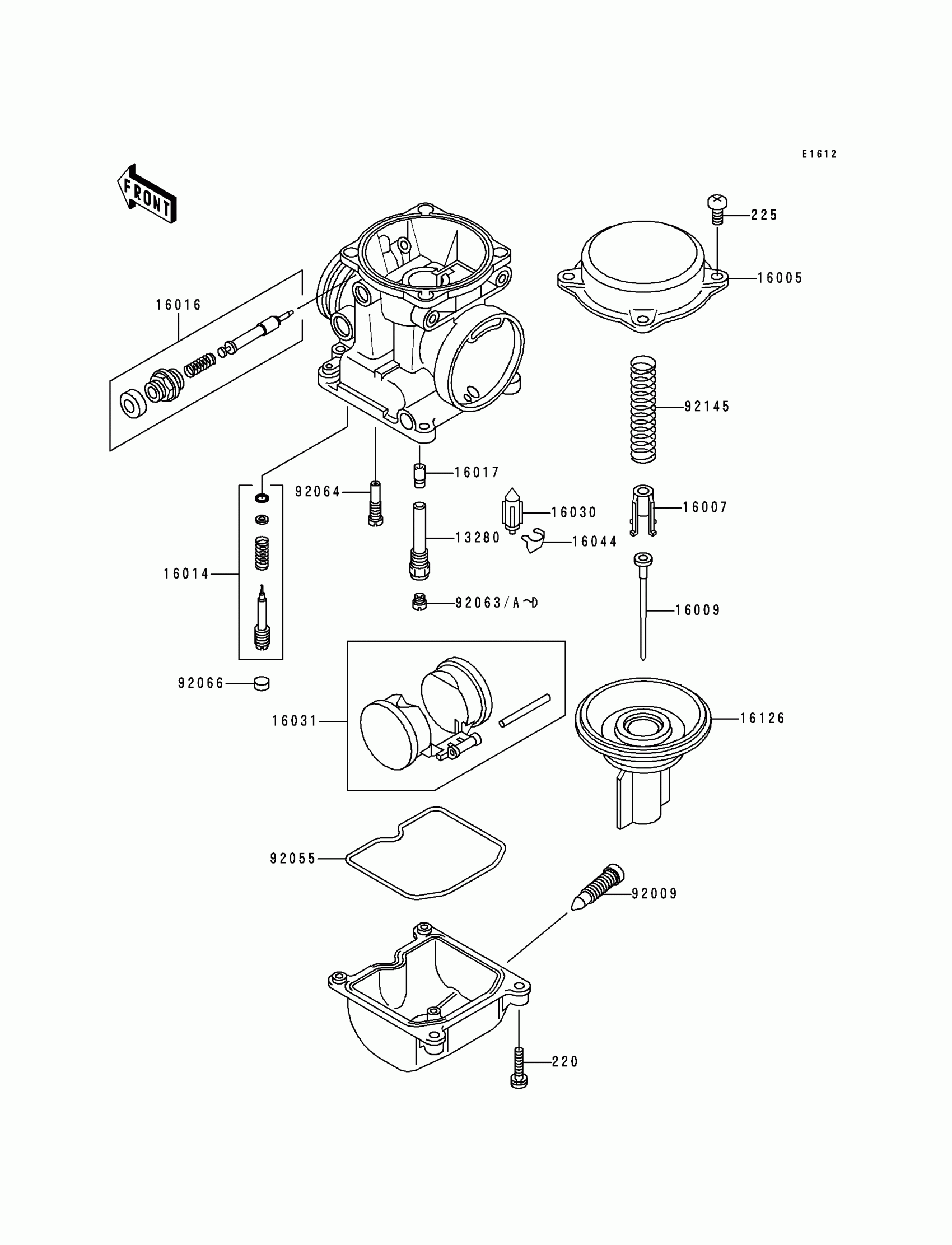

Kawasaki ZRX1100 Carburetor Parts Diagram

SCREW-PAN-CROS,4X14

SCREW-PAN-WSP-CROS,4X18

HOLDER,NEEDLE JET

TOP-CHAMBER,MIXING

SEAT-SPRING,VALVE

NEEDLE-JET,N3RK

SCREW-PILOT AIR

PLUNGER,STARTER

JET-NEEDLE

VALVE-FLOAT

FLOAT

CLAMP,FLOAT VALVE

VALVE,VACUUM

SCREW,DRAIN,M6X0.75

RING-O,FLOAT CHAMBER

JET-MAIN,#95

JET-MAIN,#90

JET-MAIN,#92

JET-MAIN,#98

JET-MAIN,#100

JET-PILOT,#35

PLUG,PILOT AIR SCREW,6.9X2

SPRING,VACUUM VALVE
