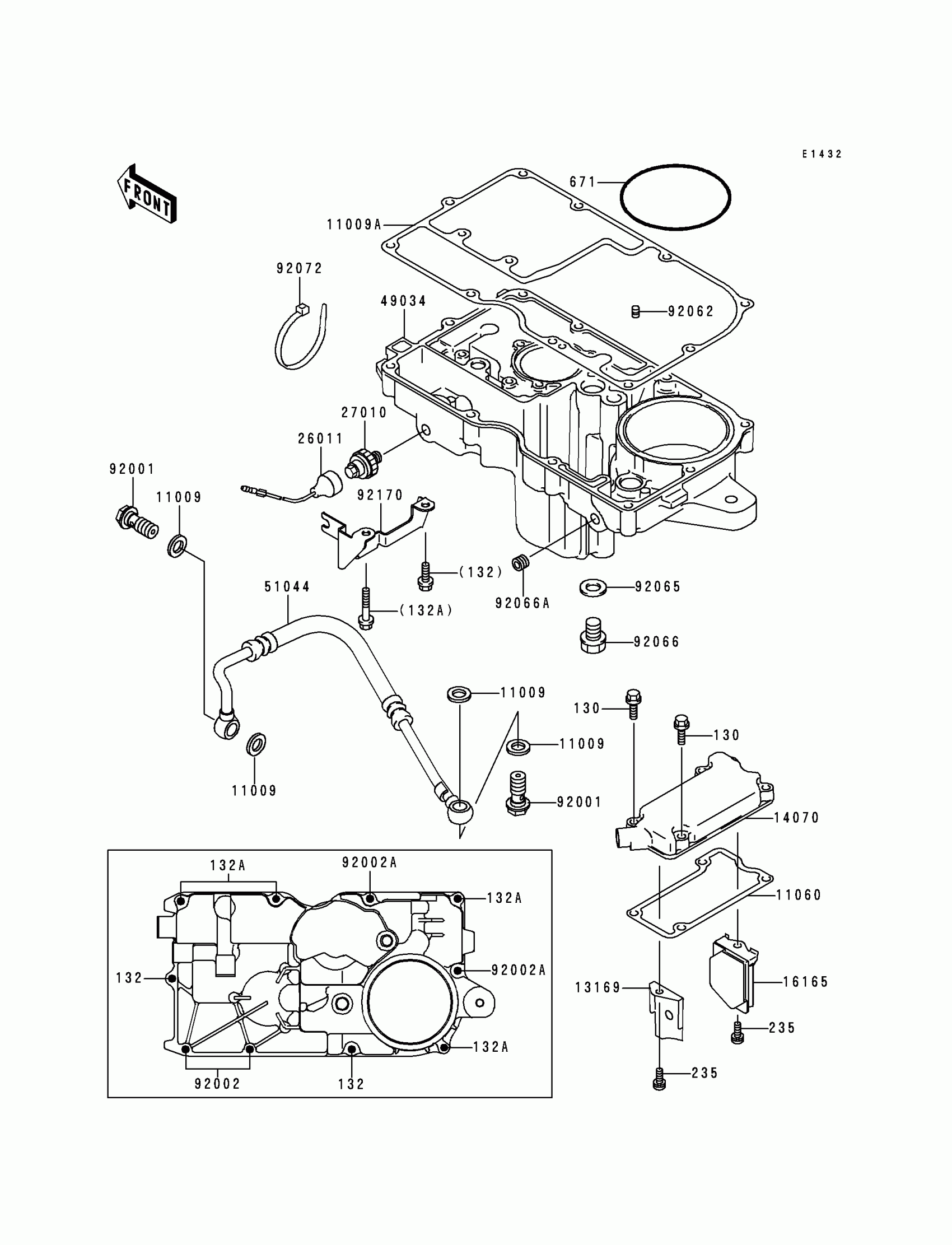

Kawasaki ZRX1100 Breather Cover/Oil Pan Diagram
#
Description
Price
130
BOLT-FLANGED,6X25
130P0625
$4.15
132
BOLT-FLANGED-SMALL,6X25
132J0625
$2.62
132A
BOLT-FLANGED-SMALL,6X40
132J0640
$4.44
235
SCREW-PAN-WP-CROS,6X10
235B0610
$3.51
671
O RING,90MM
671B2590
$9.91
11009
GASKET,14X19.5X1.4
11009-1461
$4.96
11009A
GASKET,OIL PAN
11009-1981
$25.51
11060
GASKET,BREATHER BODY
11060-1339
Unavailable
13169
PLATE,BREATHER
13169-1967
$7.60
14070
BODY-BREATHER
14070-1084
$88.15
16165
SEPARATOR,OIL
16165-1053
$48.91
26011
WIRE-LEAD
26011-1371
$21.29
27010
SWITCH,OIL PRESSURE
27010-1313
$40.13
49034
PAN-OIL
49034-1122
$217.64
51044
TUBE-ASSY,OIL
51044-1199
$142.03
92001
BOLT,14X28.5
92001-1930
$9.51
92002
BOLT,6X25
92002-1344
Unavailable
92002A
BOLT,6X40
92002-1345
$7.71
92062
NOZZLE,6X8,BLACK
92062-1079
$8.58
92065
GASKET,12X22X2
92065-097
$0.74
92066
PLUG,OIL DRAIN,12X15
92066-1174
$6.16
92066A
PLUG,PT1/8X7
92066-1342
$6.51
92072
BAND,L=202
92072-1195
$1.56
92170
CLAMP,OIL TUBE
92170-1189
$12.72
