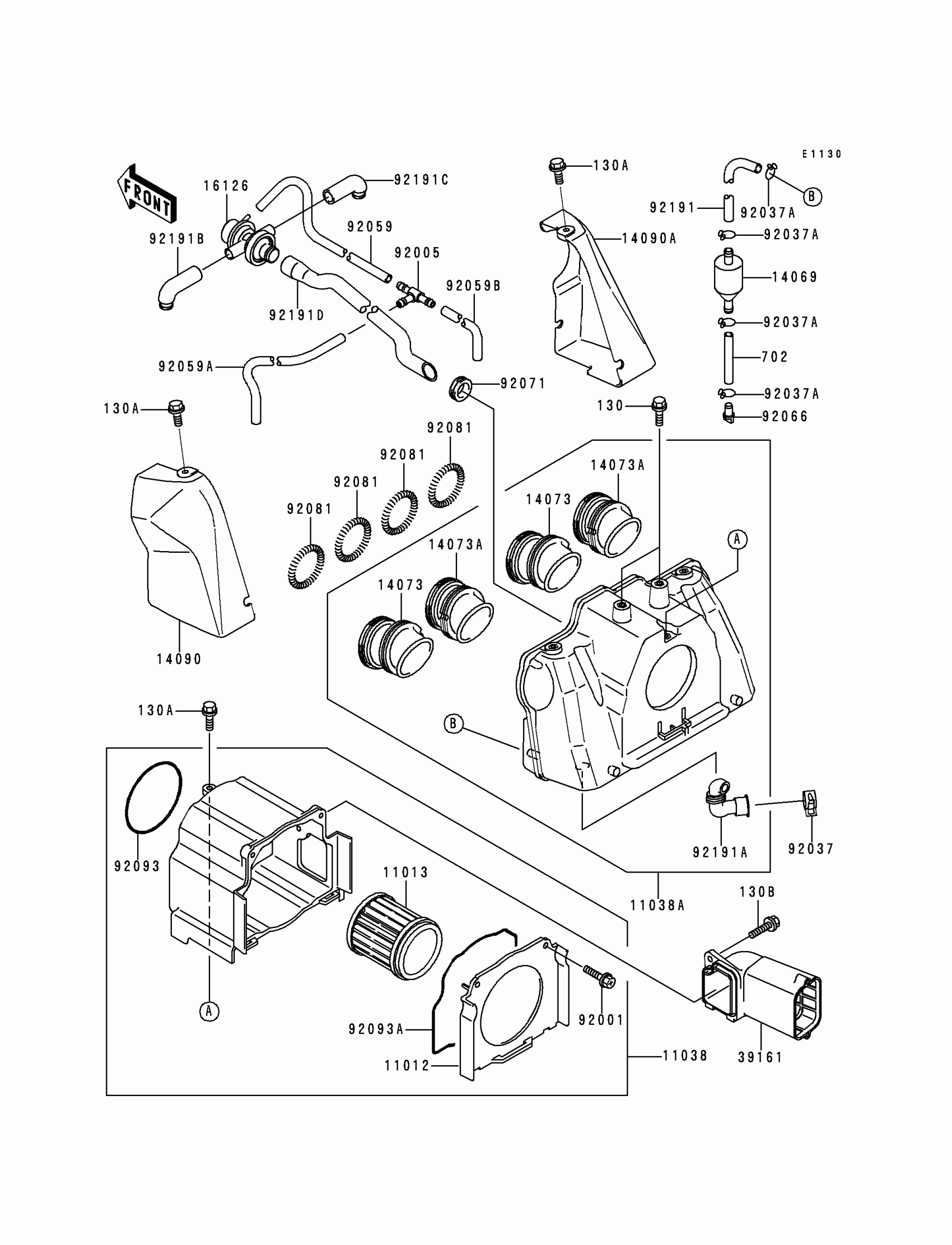

Kawasaki ZRX1100 Air Cleaner Diagram

#

Description
Price

130

BOLT-FLANGED

130J0610

$2.33

130A

BOLT-FLANGED,6X14,BLACK

130J0614

$2.33

130B

BOLT-FLANGED

130J0620

$0.43

702

TUBE-RUBBER,7X10X60

702A0760

$3.70

11012

CAP,AIR FILTER

11012-1987

Unavailable

11013

ELEMENT-AIR FILTER

11013-1235

$54.11

11038

CASE-ASSY-AIR FILTER,RR

11038-1114

Unavailable

11038A

CASE-ASSY-AIR FILTER,FR

11038-1120

$219.96

14069

BREATHER

14069-1051

$10.19

14073

DUCT,#1

14073-1685

$33.09

14073A

DUCT,#2

14073-1686

$33.09

14090

COVER,AIR CLEANER,LH,F.C.GRAY

14090-1789-3L

$117.54

14090A

COVER,AIR CLEANER,RH,F.C.GRAY

14090-1790-3L

$110.24

16126

VALVE,AIR SWITCH

16126-1337

Unavailable

39161

SILENCER-ASSY-INTAKE

39161-1077

Unavailable

92001

BOLT,6X20

92001-1091

$3.92

92005

FITTING,TUBE,T-TYPE

92005-1017

Unavailable

92037

CLAMP,HOSE CLIP

92037-1460

$10.81

92037A

CLAMP,TUBE

92037-147

$7.34

92059

TUBE,4X9X220

92059-1040

$10.19

92059A

TUBE,4X9X230

92059-1068

$19.09

92059B

TUBE,4X9X80

92059-1365

$13.61

92066

PLUG,DRAIN

92066-1211

$8.51

92071

GROMMET,AIR FILTER

92071-1042

$7.27

92081

SPRING,COIL,BLACK

92081-1457

$11.40

92093

SEAL,AIR FILTER

92093-1338

$11.29

92093A

SEAL,AIR FILTER

92093-1432

$5.25

92191

TUBE

92191-1006

$10.79

92191A

TUBE,DRAIN TUBE

92191-1124

$18.32

92191B

TUBE,AIR SWITCH LH

92191-1125

Unavailable

92191C

TUBE,AIR SWITCH RH

92191-1126

$20.80

92191D

TUBE,AIR SWITCH-AIR FILTER

92191-1127

$34.26
