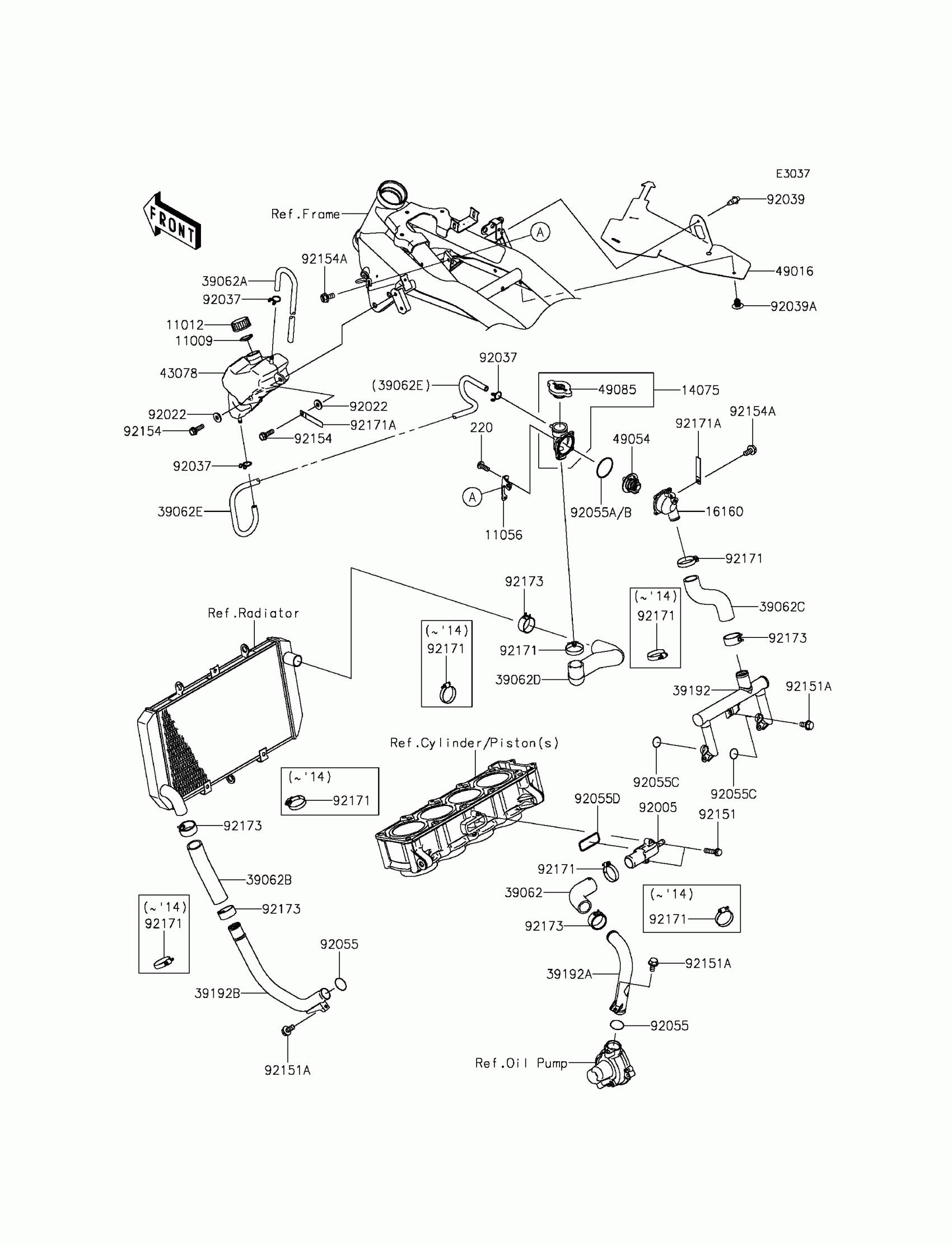

Kawasaki ZR800 (European) Water Pipe Diagram

#

Description
Price

220

SCREW-PAN-CROS,5X14

220AA0514

$4.43

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.42

11012

CAP

11012-1084

$1.72

11056

BRACKET,THERMOSTAT

11056-1800

$5.86

14075

CAP-ASSY

14075-0001

$142.53

16160

BODY,LWR

16160-0725

$70.40

39062

HOSE-COOLING,PUMP-CYLINDER

39062-0605

$34.42

39062A

HOSE-COOLING,OVER FLOW

39062-0632

$35.43

39062B

HOSE-COOLING,RAD.-PIPE

39062-0673

$28.94

39062C

HOSE-COOLING,HEAD-THERMO

39062-0674

$35.78

39062D

HOSE-COOLING,THERMO-RAD.

39062-0675

$76.20

39062E

HOSE-COOLING,DRAIN

39062-1610

$11.10

39192

PIPE-WATER

39192-0073

$214.11

39192A

PIPE-WATER

39192-0566

$61.20

39192B

PIPE-WATER

39192-0568

$61.20

43078

RESERVOIR

43078-0559

$41.05

49016

COVER-SEAL

49016-0600

$19.41

49054

THERMOSTAT

49054-0004

$59.01

49085

CAP-ASSY-PRESSURE

49085-1066

$37.42

92005

FITTING

92005-0744

$21.41

92022

WASHER,6.5X16X2

92022-1565

$3.92

92037

CLAMP,TUBE

92037-147

$7.34

92039

RIVET

92039-0709

$2.67

92039A

RIVET

92039-0722

$1.63

92055

RING-O,20.8X2.4

92055-0114

$3.90

92055A

RING-O,53.5X2.6

92055-0831

$7.85

92055C

RING-O,18.54X2.6

92055-1350

$4.34

92055D

RING-O

92055-1402

$7.84

92151

BOLT,FLANGED-SMALL,6X25

92151-1930

$2.80

92151A

BOLT,6X12

92151-1997

$1.54

92154

BOLT,FLANGED,6X20

92154-0776

$2.32

92154A

BOLT,FLANGED,6X12

92154-1050

$1.97

92171

CLAMP

92171-0179

$8.20

92171A

CLAMP,L=60

92171-0652

$2.61

92173

CLAMP

92173-0072

$7.24
