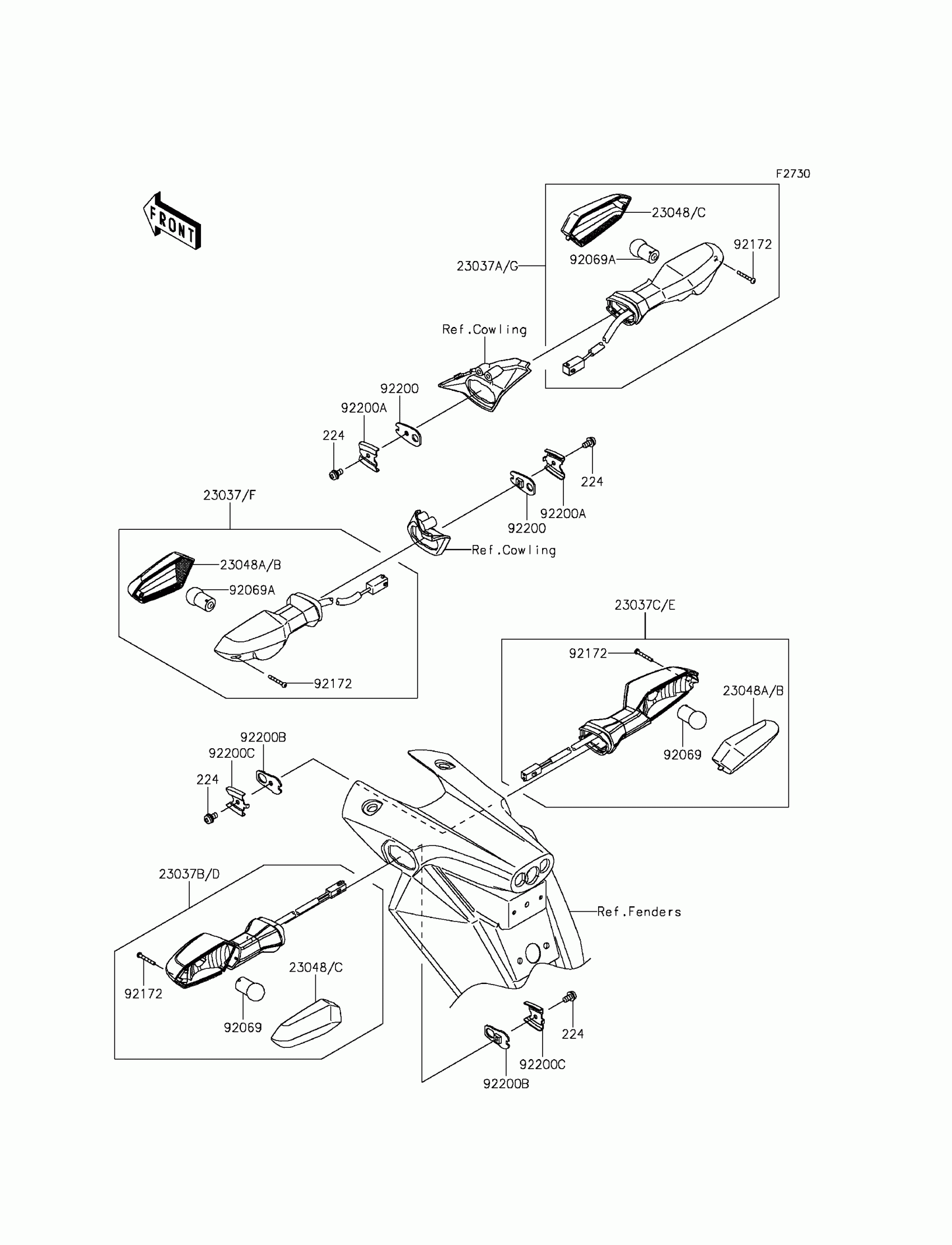

Kawasaki ZR800 (European) Turn Signals Diagram

Description

Price

224

SCREW-PAN-WP-CROS,4X8

224AB0408

$3.67

23037D

LAMP-ASSY-SIGNAL,RR,LH

23037-0304

$55.09

23037E

LAMP-ASSY-SIGNAL,RR,RH

23037-0305

$55.09

23037F

LAMP-ASSY-SIGNAL,FR,LH

23037-0310

$57.13

23037G

LAMP-ASSY-SIGNAL,FR,RH

23037-0311

$57.13

23048B

LENS-SIGNAL LAMP

23048-0025

$12.53

23048C

LENS-SIGNAL LAMP

23048-0026

$12.53

92069

BULB,12V 10W

92069-0024

Unavailable

92069A

BULB,12V 10W

92069-0058

$7.73

92172

SCREW,2.9X22

92172-0395

$3.71

92200

WASHER,SIGNAL LAMP

92200-0164

$3.94

92200A

WASHER,SIGNAL LAMP

92200-0165

$3.94

92200B

WASHER,NUT 4MM

92200-0854

$3.35

92200C

WASHER

92200-0855

$1.97
