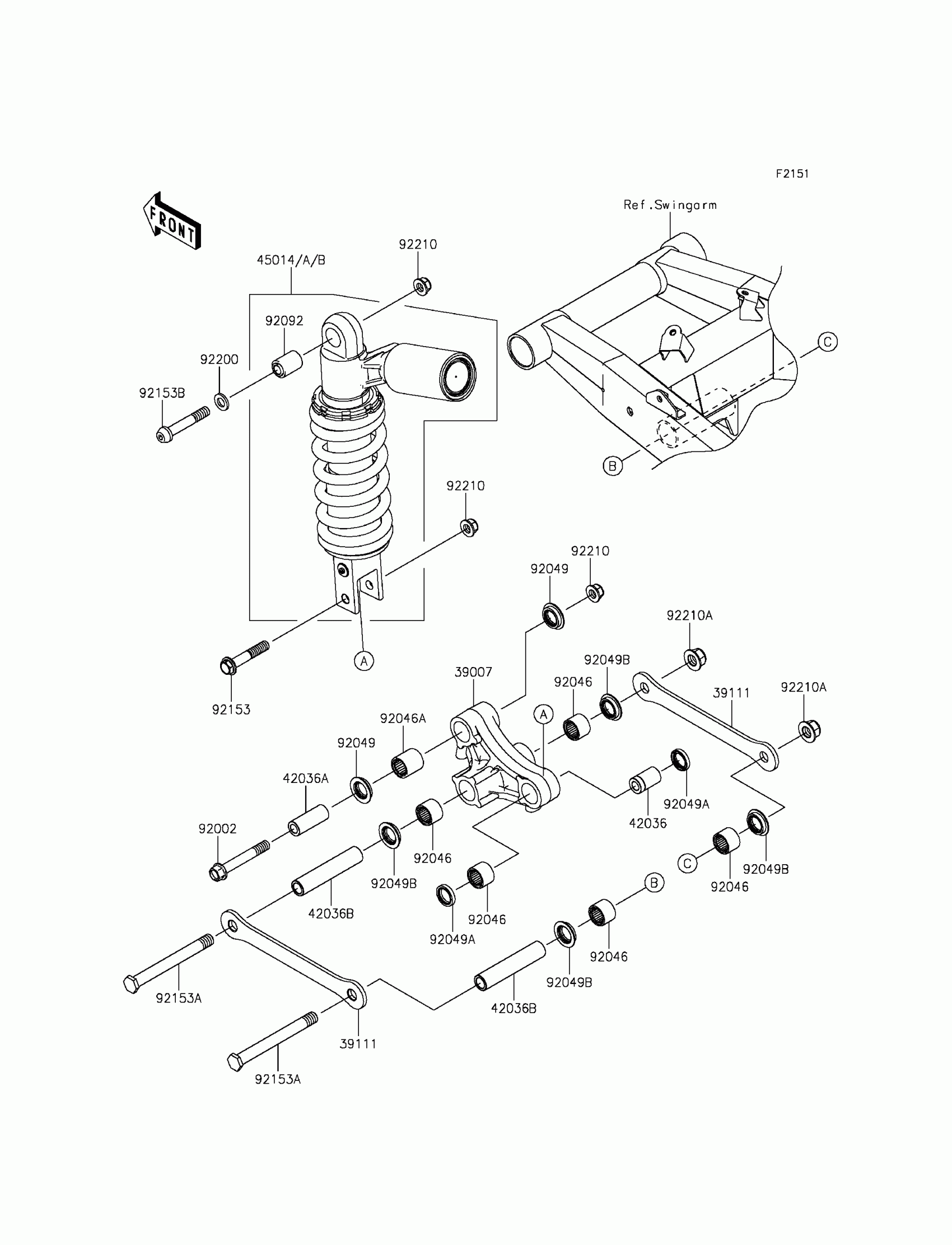

Kawasaki ZR800 (European) Suspension/Shock Absorber Diagram

Description

Price

39007

ARM-SUSP,UNI TRAK

39007-0003

$255.18

39111

ROD-TIE,SUSPENSION

39111-0017

$33.00

42036

SLEEVE,10.1X18X30

42036-0717

$21.39

42036A

SLEEVE,10.1X17X44.5

42036-0718

$24.01

42036B

SLEEVE,12.1X18X90

42036-1360

$15.99

45014B

SHOCKABSORBER,SPG GRN+BODY BLK

45014-0386-37Z

$1,046.92

92002

BOLT,10X70

92002-1183

$10.37

92046

BEARING-NEEDLE,SFYZM182417

92046-1272

$16.42

92046A

BEARING-NEEDLE,SFYZM172425

92046-1273

$17.69

92049

SEAL-OIL,MHA17245.7F

92049-1223

$8.86

92049A

SEAL-OIL,MHA18244

92049-1225

$9.28

92049B

SEAL-OIL,KCR MF018N1

92049-1493

$9.19

92092

BUSHING-RUBBER

92092-0003

$31.84

92153

BOLT,FLANGED,10X55

92153-1546

$7.75

92153A

BOLT,12X114

92153-1662

$22.70

92153B

BOLT,SOCKET,10X60

92153-1837

$13.60

92200

WASHER,10.5X19X2.3

92200-1042

$3.92

92210

NUT,LOCK,FLANGED,10MM

92210-1139

$4.18

92210A

NUT,LOCK,FLANGED,12MM

92210-1150

$6.22
