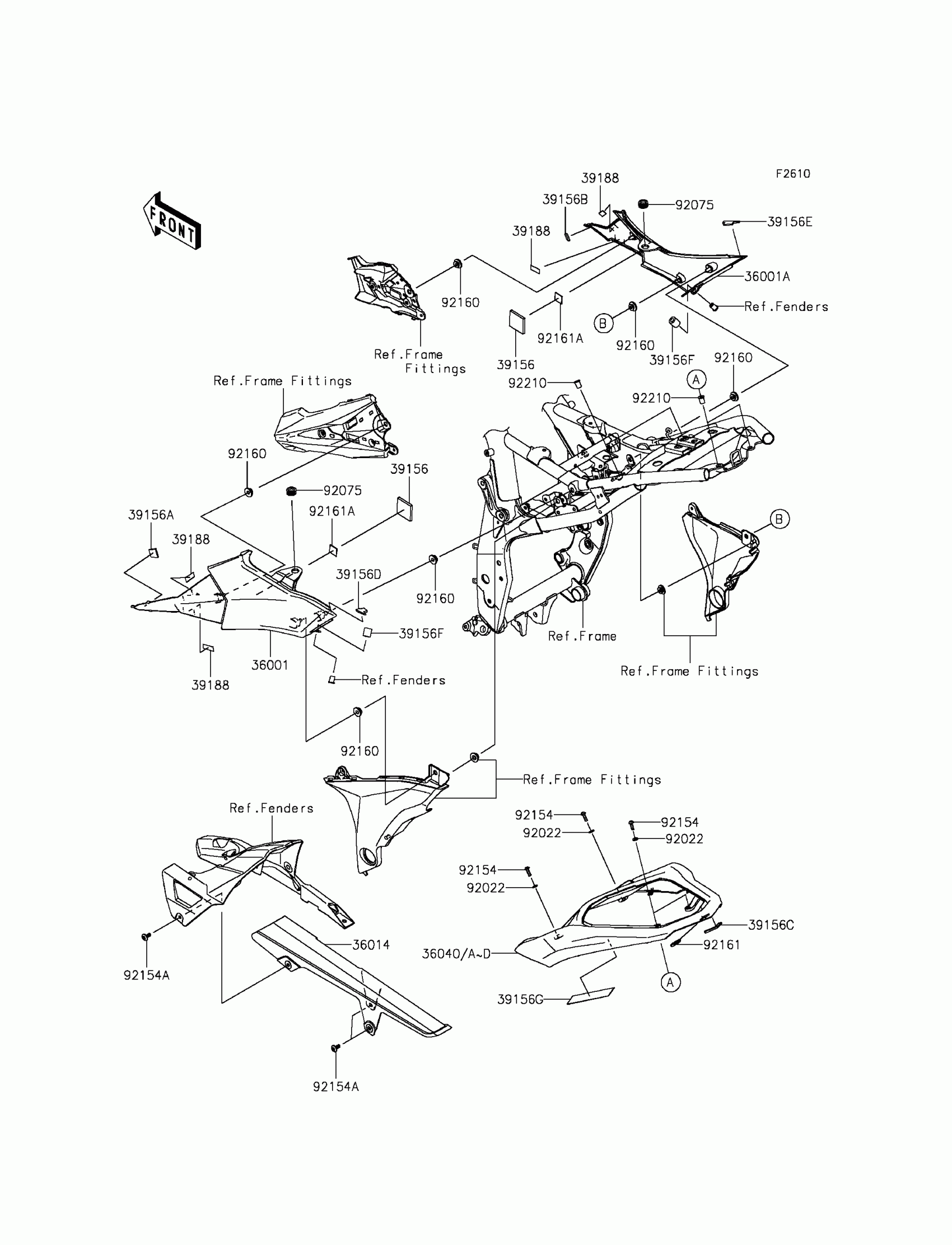

Kawasaki ZR800 (European) Side Covers/Chain Cover Diagram

Description

Price

36001

COVER-SIDE,LH

36001-0596

$53.38

36001A

COVER-SIDE,RH

36001-0597

$53.38

36014

CASE-CHAIN

36014-0025

$93.75

36040A

COVER-TAIL,P.S.WHITE

36040-0139-25Y

$212.10

36040B

COVER-TAIL,C.F.B.GREEN

36040-0139-35K

$212.10

36040C

COVER-TAIL,F.EBONY

36040-0139-45L

$212.10

39156

PAD

39156-0292

$3.35

39156A

PAD,SIDE COVER,LH,R END

39156-0970

$2.30

39156B

PAD,SIDE COVER,RH,R END

39156-0971

$1.18

39156C

PAD,TAIL COVER,END

39156-0972

$2.99

39156D

PAD,SIDE COVER,LH,EDGE

39156-1723

$2.99

39156E

PAD,SIDE COVER,RH,EDGE

39156-1724

$2.99

39156F

PAD,8X16X17

39156-1725

$1.96

39156G

PAD,35X110

39156-1764

$14.76

39188

TAPE,10X30X0.5

39188-0559

$1.62

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$3.92

92075

DAMPER

92075-1634

$4.69

92154

BOLT,SOCKET,5X16

92154-0026

$2.55

92154A

BOLT,SOCKET,6X14

92154-0745

$2.32

92160

DAMPER

92160-1613

$3.74

92161

DAMPER,12X23

92161-1367

$1.19

92161A

DAMPER,20X20,T1.0

92161-1431

$0.85

92210

NUT,WELL,5MM

92210-0498

$7.29
