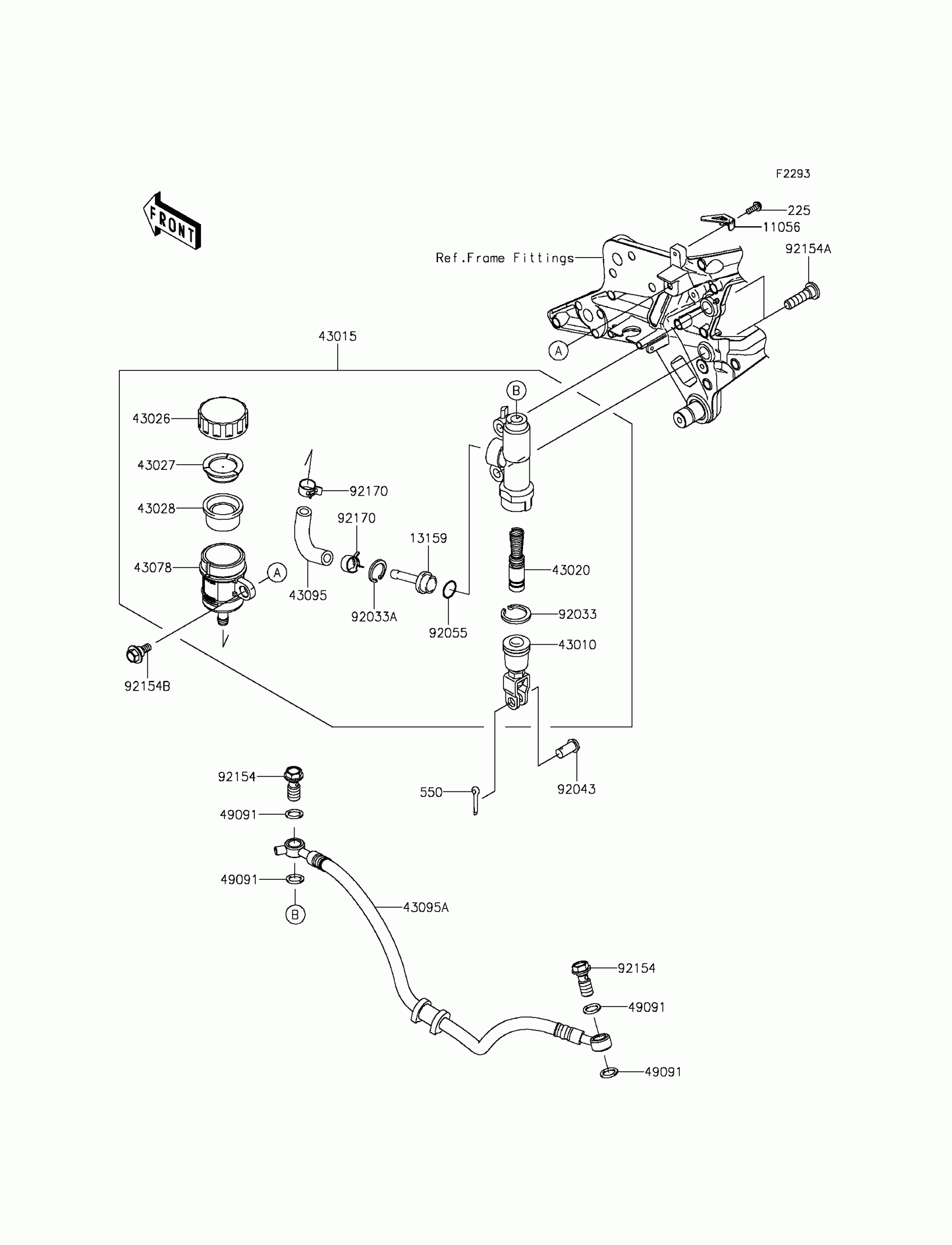

Kawasaki ZR800 (European) Rear Master Cylinder Diagram

Description

Price

225

SCREW-PAN-WSP-CROS,4X12

225AB0412

$2.94

550

PIN-COTTER,2.0X15

550AA2015

$1.12

11056

BRACKET,GUARD

11056-1904

$23.21

13159

CONNECTOR

13159-0009

$9.09

43010

ROD-ASSY-BRAKE

43010-0009

$29.34

43015

CYLINDER-ASSY-MASTER,RR

43015-0574

$410.93

43020

PISTON-COMP-BRAKE

43020-1094

$65.22

43026

CAP-BRAKE

43026-0009

$37.51

43027

PLATE-DIAPHRAGM

43027-1053

$5.67

43028

DIAPHRAGM

43028-1065

$19.09

43078

RESERVOIR

43078-0060

$32.45

43095

HOSE-BRAKE,RESERVOIR

43095-0585

$34.37

43095A

HOSE-BRAKE,RR,469MM

43095-0710

$33.74

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

$7.78

92033A

RING-SNAP,20.5MM

92033-1186

$4.96

92043

PIN,8X17

92043-0104

$3.90

92055

RING-O,14.8X2.4

92055-0741

$3.71

92154

BOLT,OIL,L=23

92154-0226

$5.91

92154A

BOLT,SOCKET,8X30

92154-0843

$4.72

92154B

BOLT

92154-0929

$3.71

92170

CLAMP,HOSE

92170-1091

$5.00
