Description

Price

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$0.97

480

CIRCLIP-TYPE-C,11MM

480J1100

$0.95

551

PIN-DOWEL,4X8

551A0408

$0.68

11061

GASKET

11061-0107

$1.82

13107

SHAFT,OIL PUMP

13107-0046

$31.43

13216

GEAR-COMP,OIL PUMP,41T

13216-0872

$123.78

13280

HOLDER

13280-0711

$50.47

16097

FILTER-ASSY-OIL

16097-0008

$11.00

16130

VALVE-ASSY-RELIEF

16130-1058

$37.32

16142

COVER-PUMP

16142-0063

$124.67

16142A

COVER-PUMP,OIL

16142-1146

$48.44

16154

ROTOR-PUMP

16154-0057

$67.13

16160

BODY,OIL PUMP

16160-0727

$108.48

49063

SEAL-MECHANICAL

49063-1055

$16.33

49065

FILTER-OIL

49065-0712

$20.81

59256

IMPELLER

59256-0555

$37.62

92022

WASHER OIL PUMP BANJO

92022-077

$2.84

92042

PIN,DOWEL,4X13.8

92042-030

$2.99

92043

PIN,4.2X6X12

92043-1262

$3.29

92043A

PIN,6.2X8X14

92043-1263

$0.46

92049

SEAL-OIL,SC 11 28.55 5

92049-1336

Unavailable

92055

RING-O,63.3X3.1

92055-0738

$4.24

92055A

RING-O,OIL FILTER

92055-1503

$7.25

92055B

RING-O,WATER PUMP COVER

92055-1571

$10.76

92055C

RING-O,59.6X2.4

92055-3018

$4.67

92151

BOLT,6X50

92151-1234

$2.03

92154

BOLT

92154-0735

$46.38

92154A

BOLT-FLANGED-SMALL,6X60

92154-0949

$2.46

92154B

BOLT,FLANGED,6X22

92154-1069

$2.44

92171

CLAMP

92171-1420

$4.46

92200

WASHER,11X18X1

92200-0786

$2.19

92200A

WASHER

92200-0818

$1.69

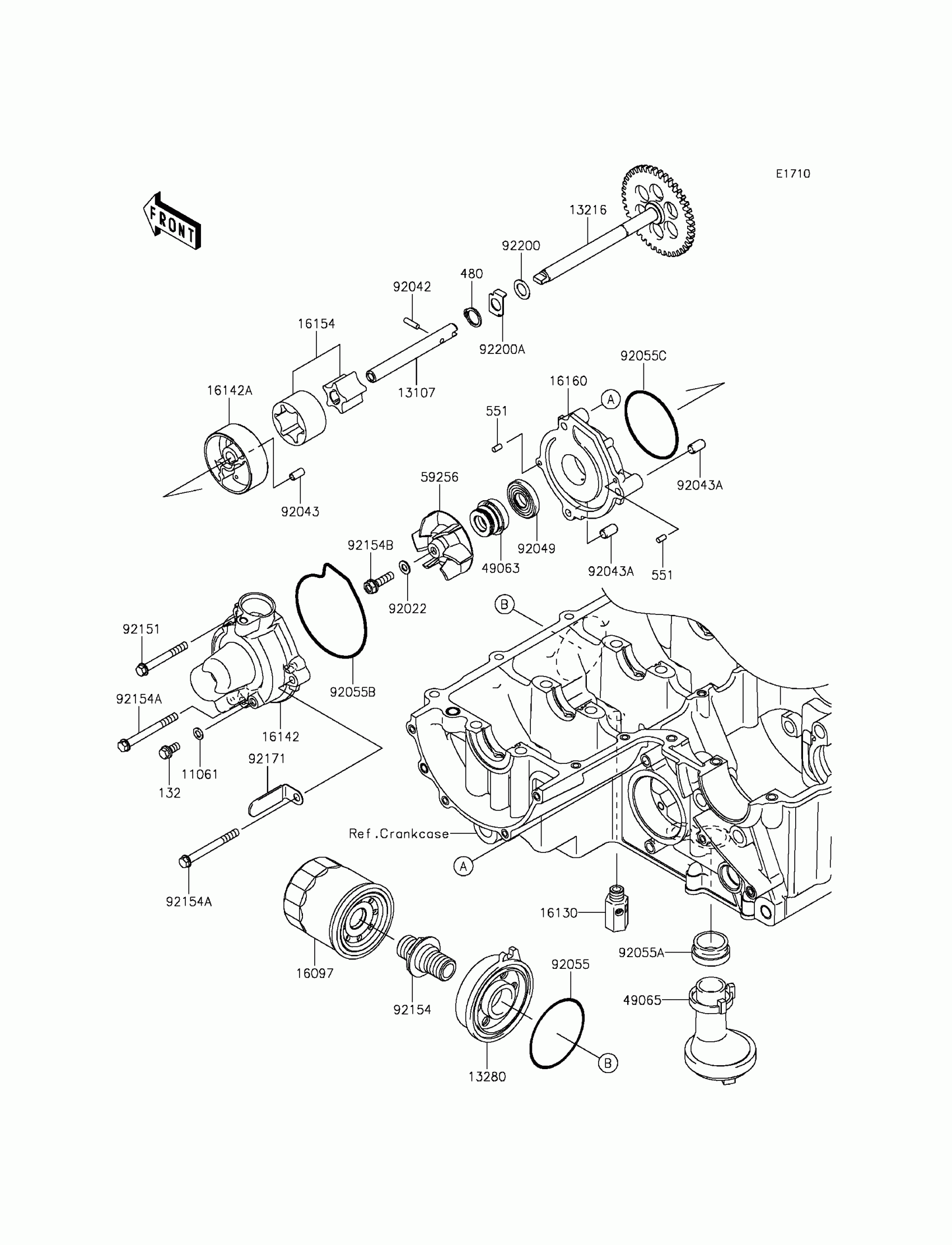

Kawasaki ZR800 (European) Oil Pump Diagram
