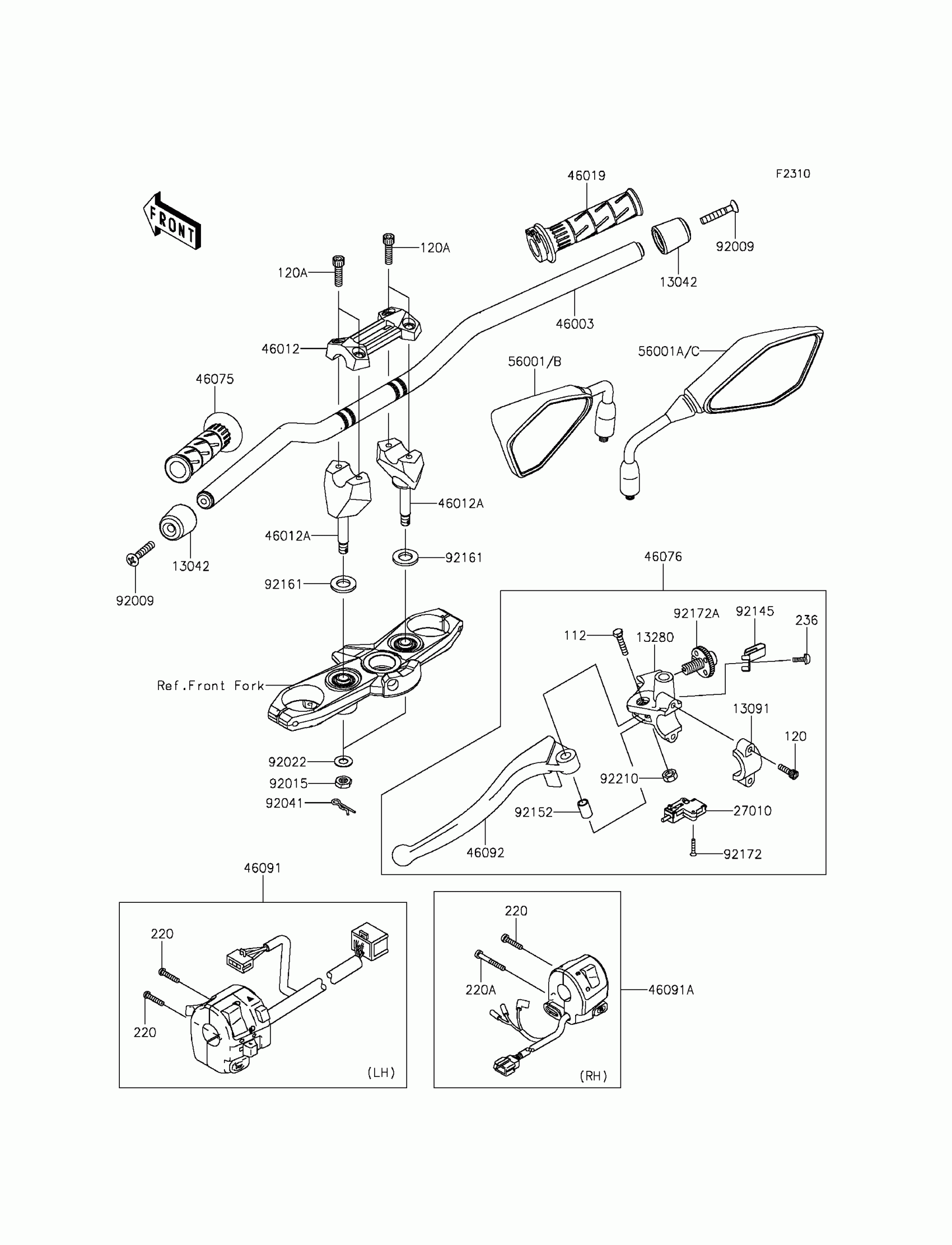

Kawasaki ZR800 (European) Handlebar Diagram

#

Description
Price

112

BOLT-UPSET,6X30

112BB0630

$1.86

120

BOLT-SOCKET,6X20

120CB0620

$1.22

120A

BOLT-SOCKET,8X30

120CC0830

$3.71

220

SCREW-PAN-CROS,5X25

220AB0525

$3.52

220A

SCREW-PAN-CROS,5X40

220AB0540

$2.06

236

SCREW-PAN-WSP-CROS,4X10

236AB0410

$1.52

13042

WEIGHT,HANDLE

13042-1005

$32.86

13091

HOLDER,CLUTCH LEVER

13091-1624

$35.87

13280

HOLDER,CLUTCH LEVER

13280-0017

$51.43

27010

SWITCH,CLUTCH

27010-0729

$32.97

46003

HANDLE,F.S.BLACK

46003-0583-18R

Unavailable

46012

HOLDER-HANDLE,UPP

46012-0314

$53.06

46012A

HOLDER-HANDLE,LWR

46012-0315

$64.89

46019

GRIP-ASSY,THROTTLE

46019-0060

$32.34

46075

GRIP,HANDLE,LH

46075-0564

$20.01

46076

LEVER-ASSY-GRIP,CLUTCH

46076-0080

$117.54

46091

HOUSING-ASSY-CONTROL,LH

46091-0248

Unavailable

46091A

HOUSING-ASSY-CONTROL,RH

46091-0257

$144.99

46092

LEVER-GRIP,CLUTCH

46092-0003

$21.68

56001B

MIRROR-ASSY,LH

56001-0299

$78.48

56001C

MIRROR-ASSY,RH

56001-0300

$78.48

92009

SCREW,8X45

92009-1257

$4.69

92015

NUT,LOCK,10MM

92015-1962

$6.11

92022

WASHER,10.2X28X2

92022-1088

$4.69

92041

COTTER,8MM

92041-1060

$3.57

92145

SPRING

92145-1286

$5.95

92152

COLLAR

92152-0103

$19.00

92161

DAMPER

92161-0037

$1.86

92172

SCREW,3X16

92172-0183

$2.15

92172A

SCREW,ADJUST NUT

92172-1060

$39.14

92210

NUT,LOCK,6MM

92210-0006

$2.46
