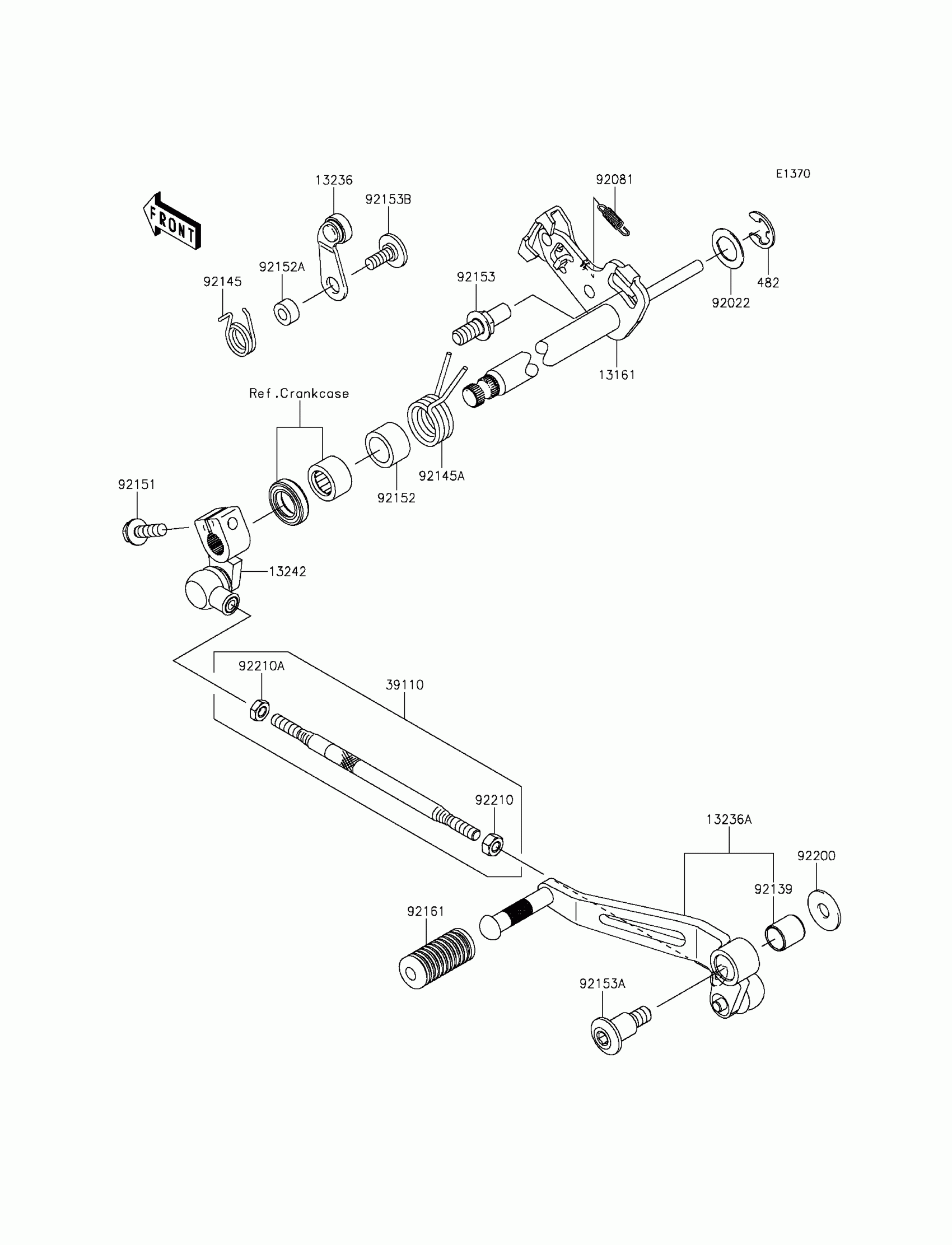

Kawasaki ZR800 (European) Gear Change Mechanism Diagram

Description

Price

482

CIRCLIP-TYPE-E,12MM

482J0200

$3.92

13161

LEVER-COMP-CHANGE SHAFT

13161-0561

$91.32

13236

LEVER-COMP,POSITION

13236-0106

$8.83

13236A

LEVER-COMP,CHANGE PEDAL

13236-0732

$72.20

13242

LEVER-ASSY-CHANGE

13242-0090

$57.14

39110

ROD-ASSY-TIE

39110-0033

$23.97

92022

WASHER,CHANGE SHAFT

92022-1628

$6.57

92081

SPRING,PAWL RETURN

92081-1708

$6.51

92139

BUSHING

92139-0023

$3.69

92145

SPRING,GEAR POSITION

92145-0944

$4.68

92145A

SPRING

92145-1122

$9.68

92151

BOLT,FLANGED,6X20

92151-1226

$2.46

92152

COLLAR,14.2X19.9X12

92152-1587

$3.75

92152A

COLLAR,6.1X12X6

92152-1588

$3.05

92153

BOLT,RETURN SPRING

92153-0421

$9.07

92153A

BOLT,SOCKET,8X16.7

92153-0446

$10.11

92153B

BOLT,6X20

92153-1505

$7.75

92161

DAMPER,CHANGE PEDAL

92161-1466

$3.35

92200

WASHER,8.0X22.0X1.5

92200-0174

$2.61

92210

NUT,6MM

92210-1100

$2.34

92210A

NUT,LEFT HANDED,6MM

92210-1101

$1.86
