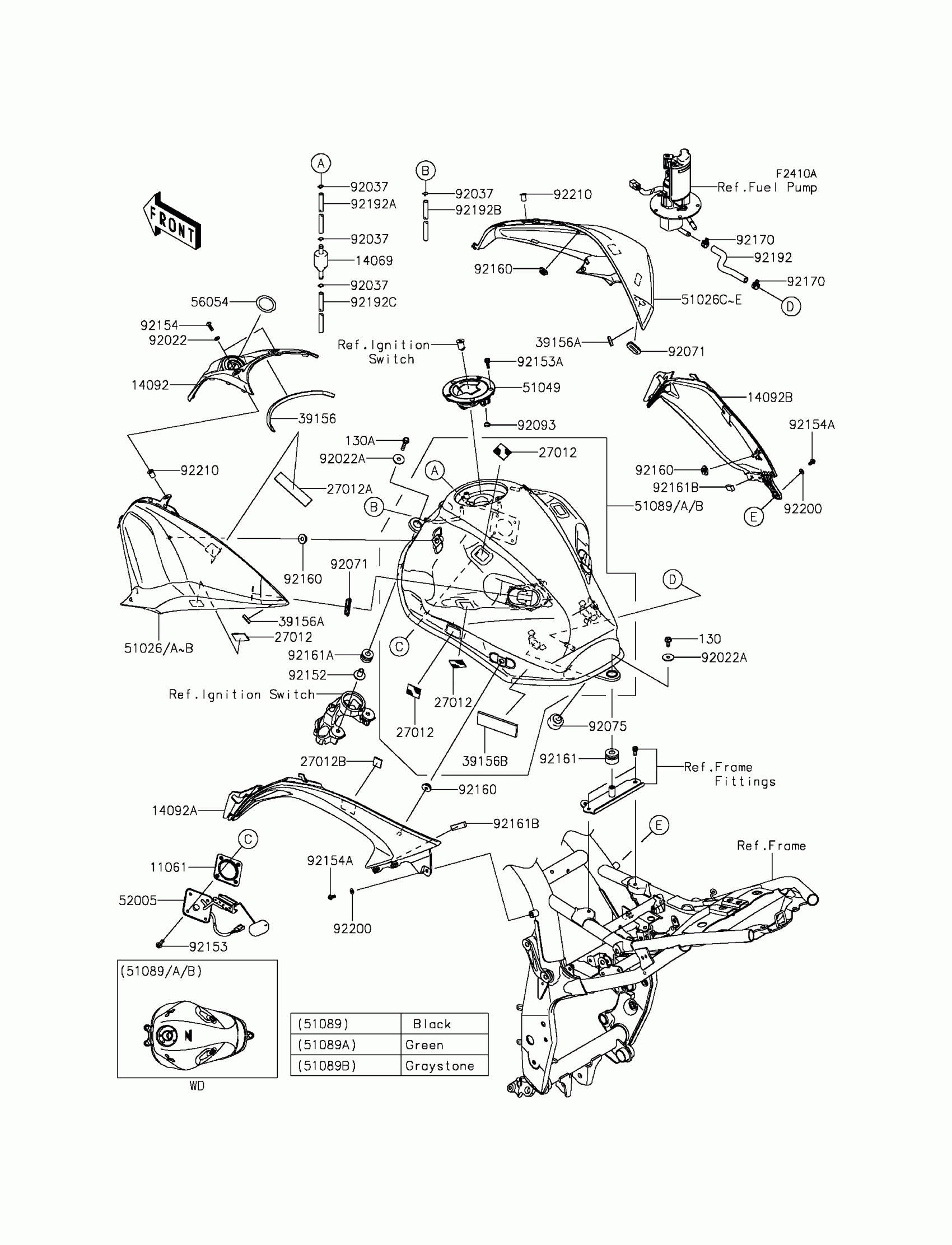

Kawasaki ZR800 (European) Fuel Tank(AFF) Diagram

#

Description
Price

11061

GASKET,FUEL GAUGE

11061-0797

$19.18

14069

BREATHER,TANK

14069-0008

$6.89

14092

COVER,IGNITION SWITCH

14092-1090

Unavailable

14092A

COVER,KNEE GRIP,LH

14092-1091

$48.24

14092B

COVER,KNEE GRIP,RH

14092-1092

$48.24

27012

HOOK

27012-0170

$5.54

27012A

HOOK,DUAL LOCK,20X90

27012-0746

$11.86

27012B

HOOK,20X20X3.0

27012-0772

$3.60

39156

PAD,IGNITION SWITCH

39156-0995

Unavailable

39156A

PAD,5X20X3

39156-0999

$1.62

39156B

PAD,93X30X5

39156-1858

$3.56

51026

COVER TANK,LH,P.S.WHITE

51026-0053-25Y

$194.64

51026A

COVER TANK,LH,F.EBONY

51026-0053-45L

$194.64

51026B

COVER TANK,LH,M.S.BLACK

51026-0053-660

$194.64

51026C

COVER TANK,RH,P.S.WHITE

51026-0054-25Y

$194.64

51026D

COVER TANK,RH,F.EBONY

51026-0054-45L

$194.64

51026E

COVER TANK,RH,M.S.BLACK

51026-0054-660

Unavailable

51049

CAP-TANK,FUEL

51049-0714

$136.31

130

BOLT-FLANGED,6X14

130BA0614

$1.20

130A

BOLT-FLANGED,6X30

130BA0630

$1.46

51089

TANK-COMP-FUEL,M.S.BLACK

51089-5179-660

$1,081.17

51089A

TANK-COMP-FUEL,C.F.B.GREEN

51089-5180-35K

$1,081.17

51089B

TANK-COMP-FUEL,M.F.R.GRAYSTONE

51089-5187-35B

$1,081.17

52005

GAUGE,FUEL

52005-0721

$199.24

56054

MARK,IGNITION

56054-1133

Unavailable

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$3.92

92022A

WASHER,7X24X1.6

92022-228

$3.92

92037

CLAMP,TUBE

92037-010

$3.92

92071

GROMMET

92071-1187

$4.96

92075

DAMPER

92075-015

$5.00

92093

SEAL,FUEL TANK CAP

92093-1030

$7.77

92152

COLLAR,6.5X10X17.6

92152-1655

$1.63

92153

BOLT,FLANGED,5X12

92153-1421

$1.78

92153A

BOLT,SOCKET,5X16

92153-1616

$1.34

92154

BOLT,SOCKET,5X16

92154-0026

$2.55

92154A

BOLT,SOCKET,5X10

92154-0215

$2.14

92160

DAMPER

92160-1613

$3.74

92161

DAMPER,12X28X21

92161-1468

$4.41

92161A

DAMPER,10X24X15

92161-1482

$3.71

92161B

DAMPER,10X35X6

92161-1539

$2.34

92170

CLAMP

92170-1492

$5.00

92192

TUBE,FUEL

92192-0593

$32.14

92192A

TUBE,BREATHER

92192-0798

$5.48

92192B

TUBE,6X9X930

92192-1311

$13.04

92192C

TUBE,6X9X1095

92192-1312

$15.93

92200

WASHER,NYLON,5.3X11.5X0.5

92200-1480

$1.59

92210

NUT,WELL,5MM

92210-0498

$7.29
