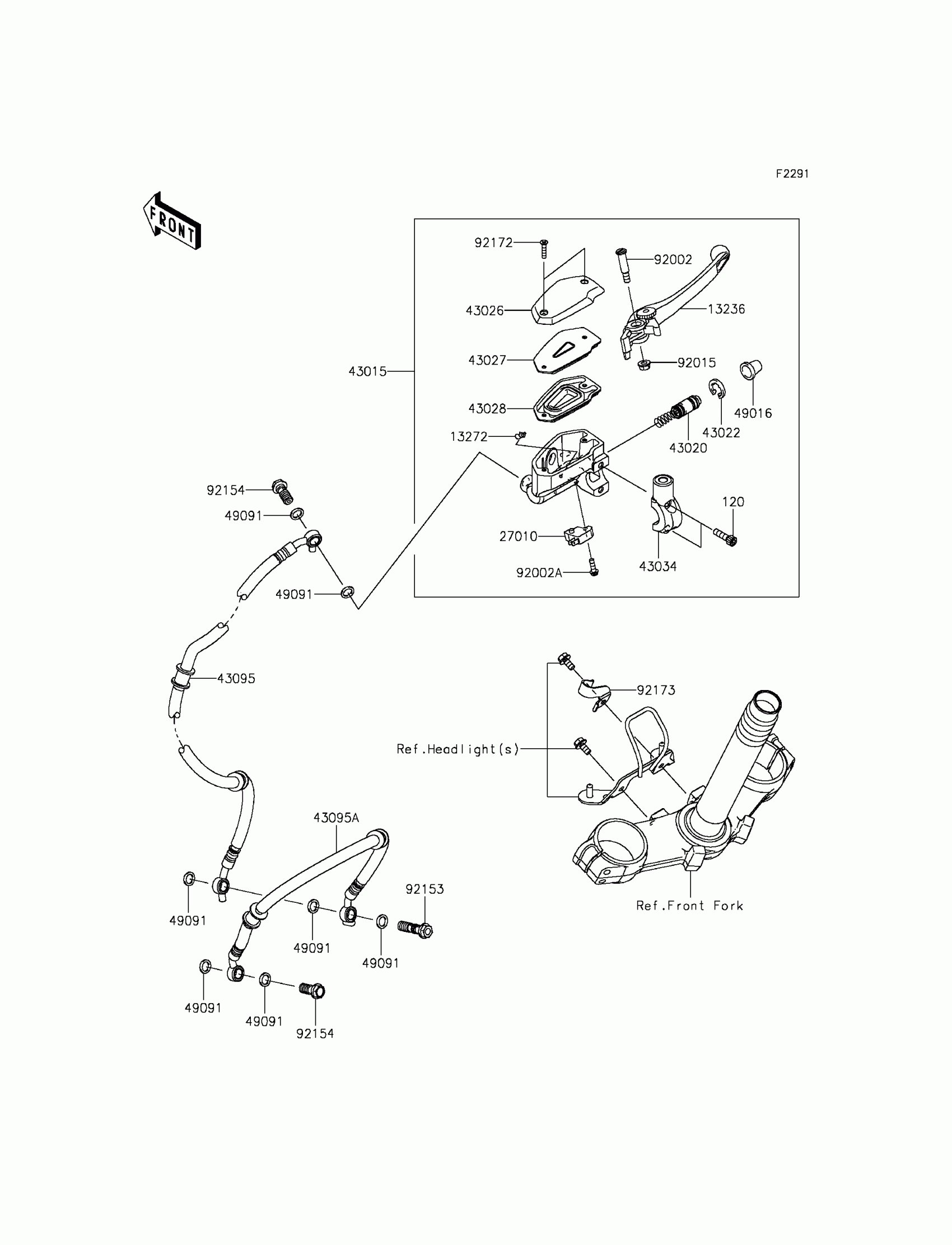

Kawasaki ZR800 (European) Front Master Cylinder Diagram

Description

Price

120

BOLT-SOCKET,6X22

120CB0622

$5.31

13236

LEVER-COMP,FRONT BRAKE

13236-0140

$68.13

13272

PLATE

13272-0573

$7.60

27010

SWITCH,BRAKE

27010-0025

$35.04

43015

CYLINDER-ASSY-MASTER,FR

43015-0588

$410.93

43020

PISTON-COMP-BRAKE

43020-0008

$65.80

43022

STOPPER-BRAKE,PISTON

43022-1010

$4.65

43026

CAP-BRAKE

43026-0019

$46.21

43027

PLATE-DIAPHRAGM

43027-0008

$8.69

43028

DIAPHRAGM

43028-0015

$36.45

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-0049

$45.06

43095

HOSE-BRAKE,FR,790MM

43095-0708

$81.40

43095A

HOSE-BRAKE,FR,464MM

43095-0709

$72.33

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$8.68

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92002

BOLT,LEVER SET,BLACK

92002-1322

$11.71

92002A

BOLT,SCREW,4X12

92002-1323

$3.92

92015

NUT,FLANGED,6MM

92015-1528

$5.52

92153

BOLT,OIL,L=37

92153-0628

$11.83

92154

BOLT,OIL,L=23

92154-0226

$5.91

92172

SCREW,4X20

92172-0320

$3.90

92173

CLAMP

92173-0945

$3.75
