Description

Price

14092A

COVER,PIVOT,LH,P.S.WHITE

14092-0962-25Y

$95.73

14092C

COVER,PIVOT,LH,F.EBONY

14092-0962-45L

$95.73

14092E

COVER,PIVOT,LH,M.S.BLACK

14092-0962-660

$95.73

14092G

COVER,PIVOT,RH,P.S.WHITE

14092-0963-25Y

$95.73

14092I

COVER,PIVOT,RH,F.EBONY

14092-0963-45L

$95.73

14092K

COVER,PIVOT,RH,M.S.BLACK

14092-0963-660

$95.73

14092L

COVER,CORD

14092-1055

$42.95

14092M

COVER,SUB FRAME,LH,F.S.BLACK

14092-1093-18T

$64.05

14092N

COVER,SUB FRAME,RH,F.S.BLACK

14092-1094-18T

$64.05

32052

BRACKET-TANK

32052-0723

$16.38

35063

STAY,RR,LH,F.S.BLACK

35063-0863-18R

$182.94

35063A

STAY,RR,RH,F.S.BLACK

35063-0864-18R

Unavailable

39156

PAD

39156-0284

$1.33

39156A

PAD

39156-0292

$3.35

39156C

PAD,60X80X5

39156-0951

$3.68

39156D

PAD,40X80X5

39156-0952

$2.64

39156E

PAD,20X80X5

39156-0953

$1.62

39156F

PAD,15X15X1

39156-0960

$1.62

39156G

PAD,18X18X5

39156-0961

$1.18

39156H

PAD,6X35

39156-0967

$1.18

39156I

PAD

39156-1849

Unavailable

39188

TAPE,10X30X0.5

39188-0558

$1.62

53044

TRIM,L=30

53044-0001

$2.80

53044A

TRIM

53044-0018

$4.65

53044B

TRIM,L=60

53044-1249

$6.57

55020

GUARD,HEEL,LH

55020-0842

$48.97

55020A

GUARD,HEEL,RH

55020-0843

$48.97

92037

CLAMP,SPEED,L=58

92037-1163

$6.57

92072

BAND,BATTERY

92072-0741

$29.23

92153

BOLT,SOCKET,8X30

92153-1630

$2.61

92154

BOLT,SOCKET,5X10

92154-0215

$2.14

92154A

BOLT,SOCKET,5X16

92154-1014

$0.85

92154B

BOLT,FLANGED,6X12

92154-1050

$1.97

120

BOLT-SOCKET,6X12

120CA0612

$1.71

670

O RING,75MM

670B5075

$3.56

92160

DAMPER

92160-1613

$3.74

92161

DAMPER

92161-0147

$3.98

92161A

DAMPER

92161-0148

$3.98

92171

CLAMP,BRAKE HOSE

92171-0316

$3.88

92171A

CLAMP,L=60

92171-0652

$2.61

92171B

CLAMP,BRAKE HOSE

92171-0789

$5.38

92171C

CLAMP

92171-1213

$8.76

92200

WASHER,NYLON,5.3X11.5X0.5

92200-1480

$1.59

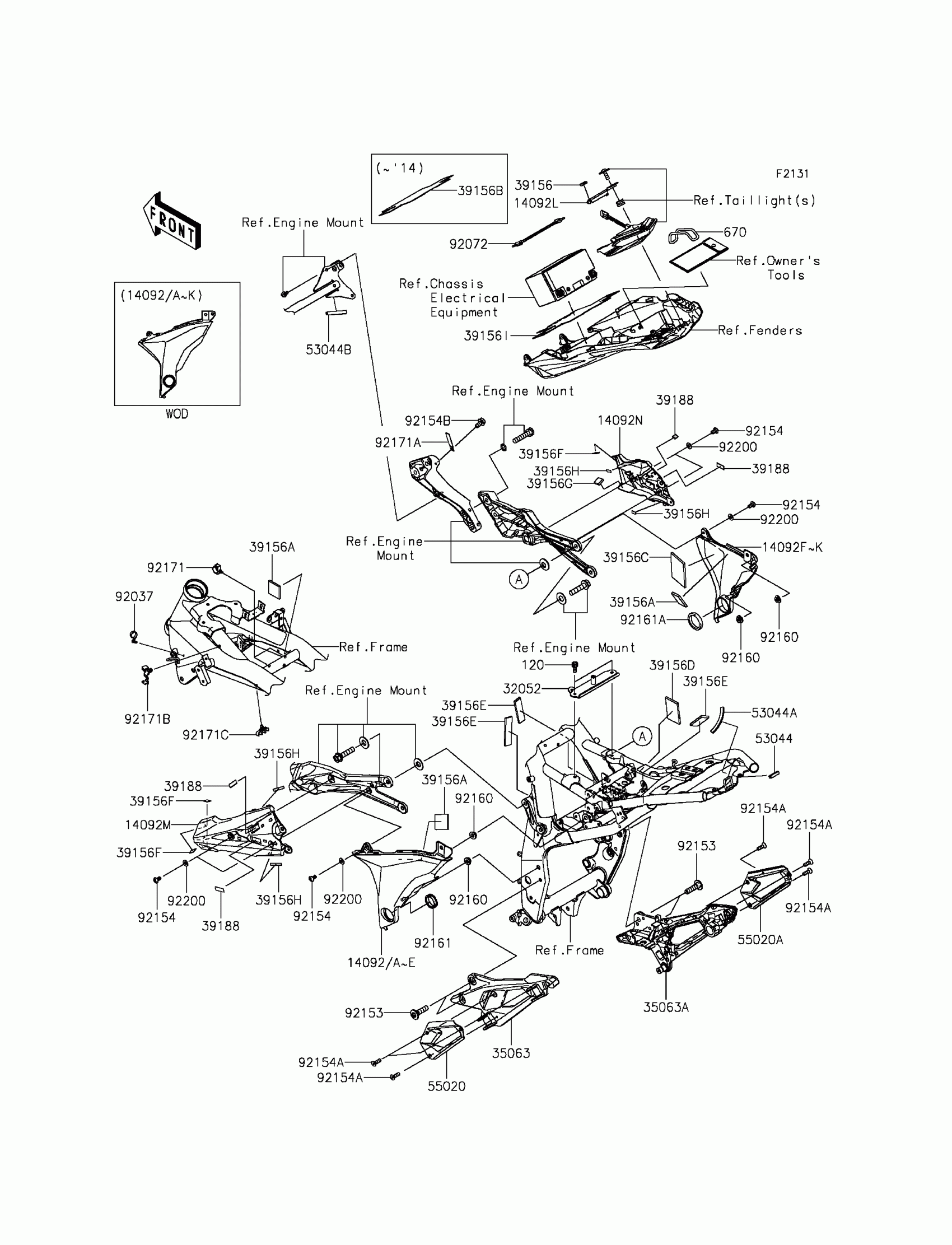

Kawasaki ZR800 (European) Frame Fittings Diagram

COVER,PIVOT,LH,P.S.WHITE

COVER,PIVOT,LH,F.EBONY

COVER,PIVOT,LH,M.S.BLACK

COVER,PIVOT,RH,P.S.WHITE

COVER,PIVOT,RH,F.EBONY

COVER,PIVOT,RH,M.S.BLACK

COVER,CORD

COVER,SUB FRAME,LH,F.S.BLACK

COVER,SUB FRAME,RH,F.S.BLACK

BRACKET-TANK

STAY,RR,LH,F.S.BLACK

STAY,RR,RH,F.S.BLACK

PAD

PAD

PAD,60X80X5

PAD,40X80X5

PAD,20X80X5

PAD,15X15X1

PAD,18X18X5

PAD,6X35

PAD

TAPE,10X30X0.5

TRIM,L=30

TRIM

TRIM,L=60

GUARD,HEEL,LH

GUARD,HEEL,RH

CLAMP,SPEED,L=58

BAND,BATTERY

BOLT,SOCKET,8X30

BOLT,SOCKET,5X10

BOLT,SOCKET,5X16

BOLT,FLANGED,6X12

BOLT-SOCKET,6X12

O RING,75MM

DAMPER

DAMPER

DAMPER

CLAMP,BRAKE HOSE

CLAMP,L=60

CLAMP,BRAKE HOSE

CLAMP

WASHER,NYLON,5.3X11.5X0.5
