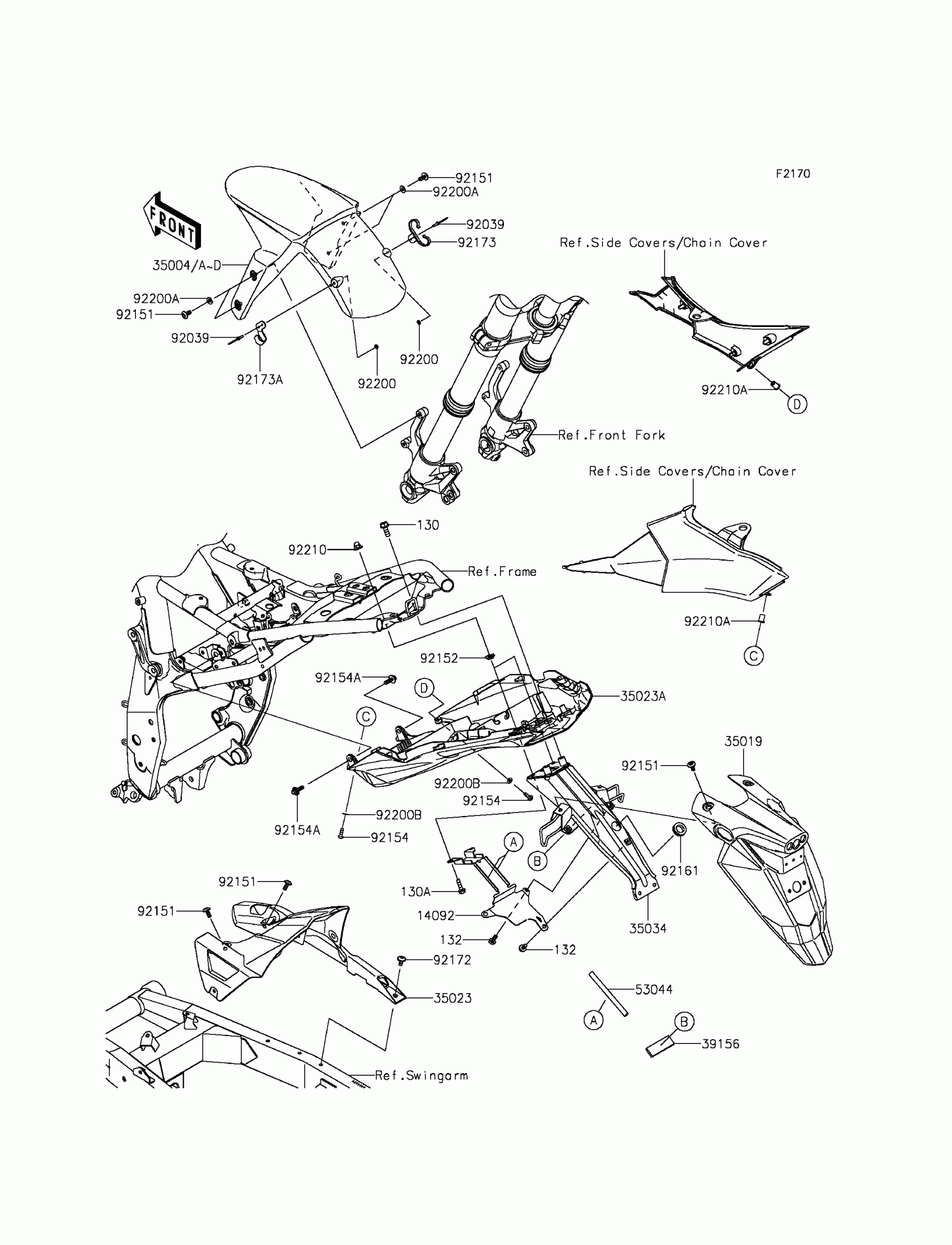

Kawasaki ZR800 (European) Fenders Diagram
#
Description
Price
130
BOLT-FLANGED,6X18
130BA0618
$1.54
130A
BOLT-FLANGED,6X22
130BA0622
$1.29
132
BOLT-FLANGED-SMALL,6X12
132BA0612
$1.20
14092
COVER,HARNESS
14092-0996
$34.73
35004
FENDER-FRONT,P.S.WHITE
35004-0322-25Y
$204.99
35004A
FENDER-FRONT,C.F.B.GREEN
35004-0322-35K
$190.66
35004B
FENDER-FRONT,F.EBONY
35004-0322-45L
$205.93
35019
FLAP,RR
35019-0556
$76.24
35023
FENDER-REAR,INNER
35023-0343
$57.36
35023A
FENDER-REAR
35023-0375
Unavailable
35034
REINFORCE
35034-0580
$120.41
39156
PAD,20X60X5
39156-0950
$1.62
53044
TRIM
53044-0564
$7.24
92039
RIVET
92039-1231
$1.81
92151
BOLT,SOCKET,6X14
92151-1654
$1.83
92152
COLLAR,6MM
92152-1705
$4.45
92154
BOLT,SOCKET,5X16
92154-0026
$2.55
92154A
BOLT,FLANGED,6X20
92154-1268
$1.19
92161
DAMPER
92161-0765
$3.71
92172
SCREW,6X14
92172-0004
$2.80
92173
CLAMP,FR FENDER,RH
92173-0937
$5.10
92173A
CLAMP,FR FENDER,LH
92173-0972
$5.10
92200
WASHER,3.5X8X1
92200-1251
$1.00
92200A
WASHER,6.5X14X1
92200-1388
$2.46
92200B
WASHER,NYLON,5.3X11.5X0.5
92200-1480
$1.59
92210
NUT,CAP,6MM
92210-0170
$2.90
92210A
NUT,WELL,5MM
92210-0498
$7.29
