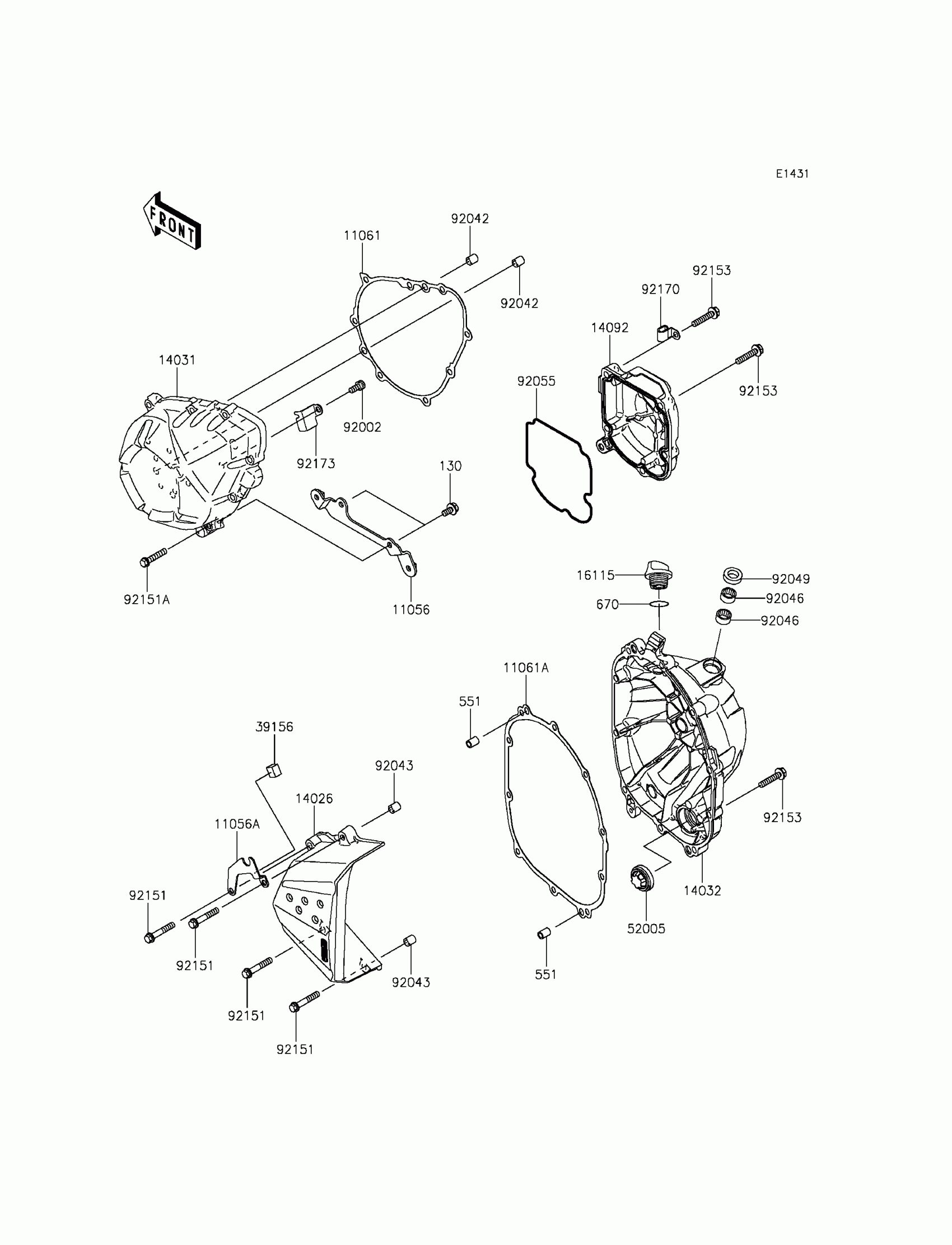

Kawasaki ZR800 (European) Engine Cover(s) Diagram

Description

Price

130

BOLT-FLANGED,6X12

130CA0612

$3.96

551

PIN-DOWEL,8X14

551A0814

$1.19

670

O RING,20MM

670B2020

$1.22

11056

BRACKET,LWR COWLING

11056-1755

$10.68

11056A

BRACKET,THROTTLE ADJUST SCREW

11056-2385

$4.56

11061

GASKET,GENERATOR

11061-0787

Unavailable

11061A

GASKET,CLUTCH

11061-0788

Unavailable

14026

COVER-CHAIN

14026-0102

$233.54

14031

COVER-GENERATOR

14031-0564

Unavailable

14032

COVER-CLUTCH

14032-0586

Unavailable

14092

COVER,PULSER

14092-0950

$46.74

16115

CAP-OIL FILLER

16115-1053

$12.20

39156

PAD,12X9X10

39156-0992

$0.84

52005

GAUGE

52005-1120

$22.80

92002

BOLT,SOCKET,6X12

92002-1796

$4.69

92042

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92043

PIN,6.2X8X14

92043-1263

$0.43

92046

BEARING-NEEDLE,HK1210FM

92046-0034

$15.63

92049

SEAL-OIL,CLUTCH RELEASE

92049-1475

$4.18

92055

RING-O,PULSE COVER

92055-1570

$14.94

92151

BOLT,6X35

92151-1135

$4.18

92151A

BOLT,6X30

92151-1873

$4.67

92153

BOLT,FLANGED,6X30

92153-1574

$2.15

92170

CLAMP

92170-1577

$3.83

92173

CLAMP

92173-0912

$1.63
