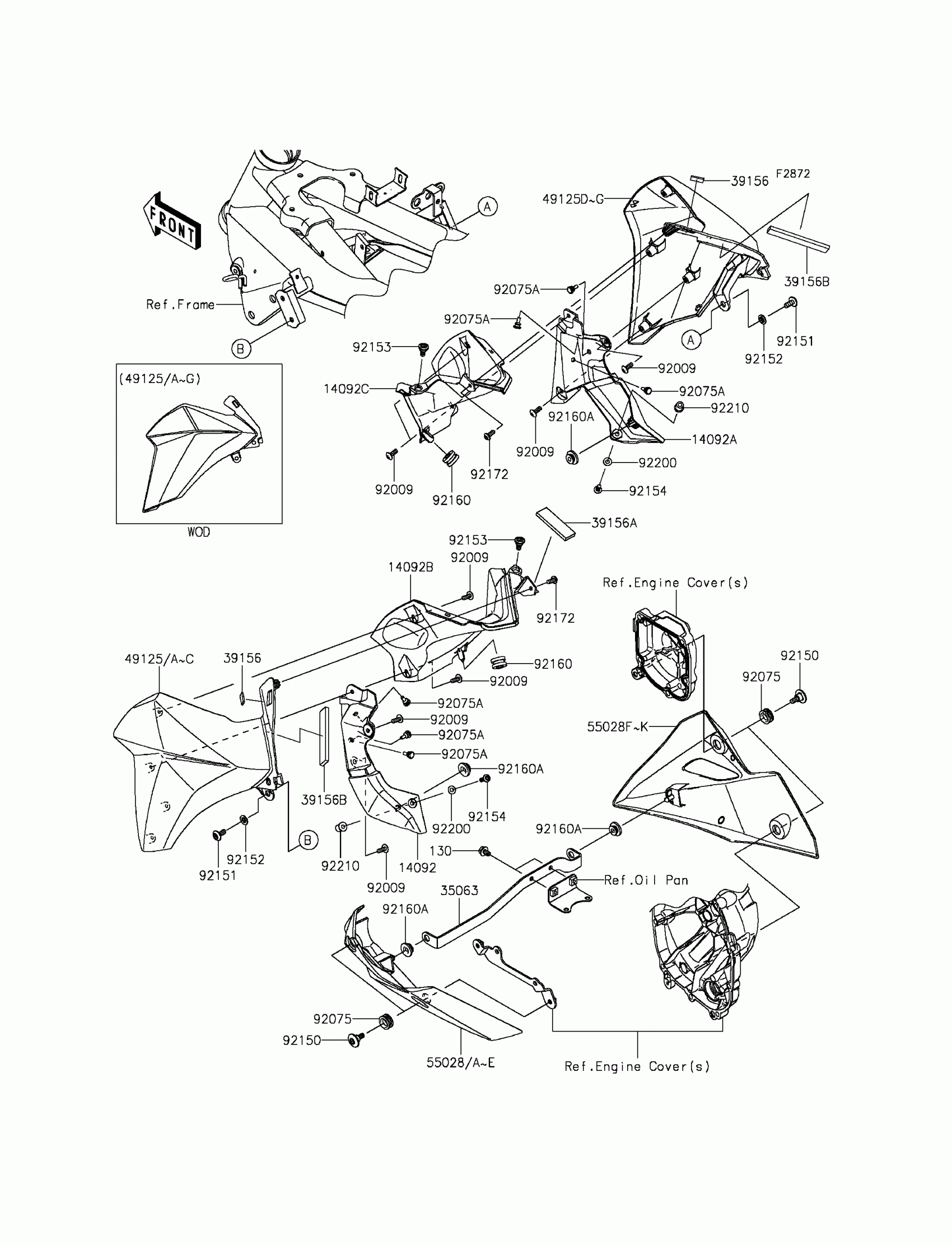

Kawasaki ZR800 (European) Cowling Lowers Diagram

#

Description
Price

14092

COVER,RADIATOR,LH

14092-0965

$24.63

14092A

COVER,RADIATOR,RH

14092-0966

$24.63

14092B

COVER,SHROUD,INNER,LH

14092-0967

$29.60

14092C

COVER,SHROUD,INNER,RH

14092-0968

$29.60

35063

STAY,COWLING

35063-0868

$11.31

39156

PAD,HEAT GUARD

39156-0389

$2.13

39156A

PAD,20X60X5

39156-0950

$1.62

39156B

PAD,15X90X5

39156-0975

$2.30

49125

SHROUD,LH,P.S.WHITE

49125-0584-25Y

$141.40

49125A

SHROUD,LH,F.EBONY

49125-0584-45L

$141.40

49125B

SHROUD,LH,M.S.BLACK

49125-0584-660

$141.40

49125D

SHROUD,RH,P.S.WHITE

49125-0585-25Y

$141.40

49125E

SHROUD,RH,F.EBONY

49125-0585-45L

$141.40

49125F

SHROUD,RH,M.S.BLACK

49125-0585-660

$141.40

55028A

COWLING,LWR,LH,P.S.WHITE

55028-0433-25Y

$138.35

55028B

COWLING,LWR,LH,C.F.B.GREEN

55028-0433-35K

$138.35

55028C

COWLING,LWR,LH,F.EBONY

55028-0433-45L

$138.35

55028G

COWLING,LWR,RH,P.S.WHITE

55028-0434-25Y

$138.35

55028H

COWLING,LWR,RH,C.F.B.GREEN

55028-0434-35K

$138.35

55028I

COWLING,LWR,RH,F.EBONY

55028-0434-45L

$138.35

92009

SCREW,TAPPING,5X14

92009-1197

$3.92

92075

DAMPER

92075-1634

$4.69

92075A

DAMPER,6X10X15

92075-1808

$1.39

92150

BOLT,SOCKET,6MM

92150-1154

$7.84

92151

BOLT,SOCKET,6X14

92151-1654

$1.83

92152

COLLAR,6.4X8X3.3

92152-1702

$2.34

92153

BOLT,SOCKET,6MM

92153-1956

$3.90

92154

BOLT,SOCKET,5X16

92154-0026

$2.55

92160

DAMPER,10X20X12

92160-1167

$4.69

92160A

DAMPER

92160-1613

$3.74

92172

SCREW,SOCKET,5X14

92172-0823

$0.85

92200

WASHER,NYLON,5.3X11.5X0.5

92200-1480

$1.59

130

BOLT-FLANGED,6X10

130BB0610

$2.49

92210

NUT,WELL,5MM

92210-0498

$7.29
