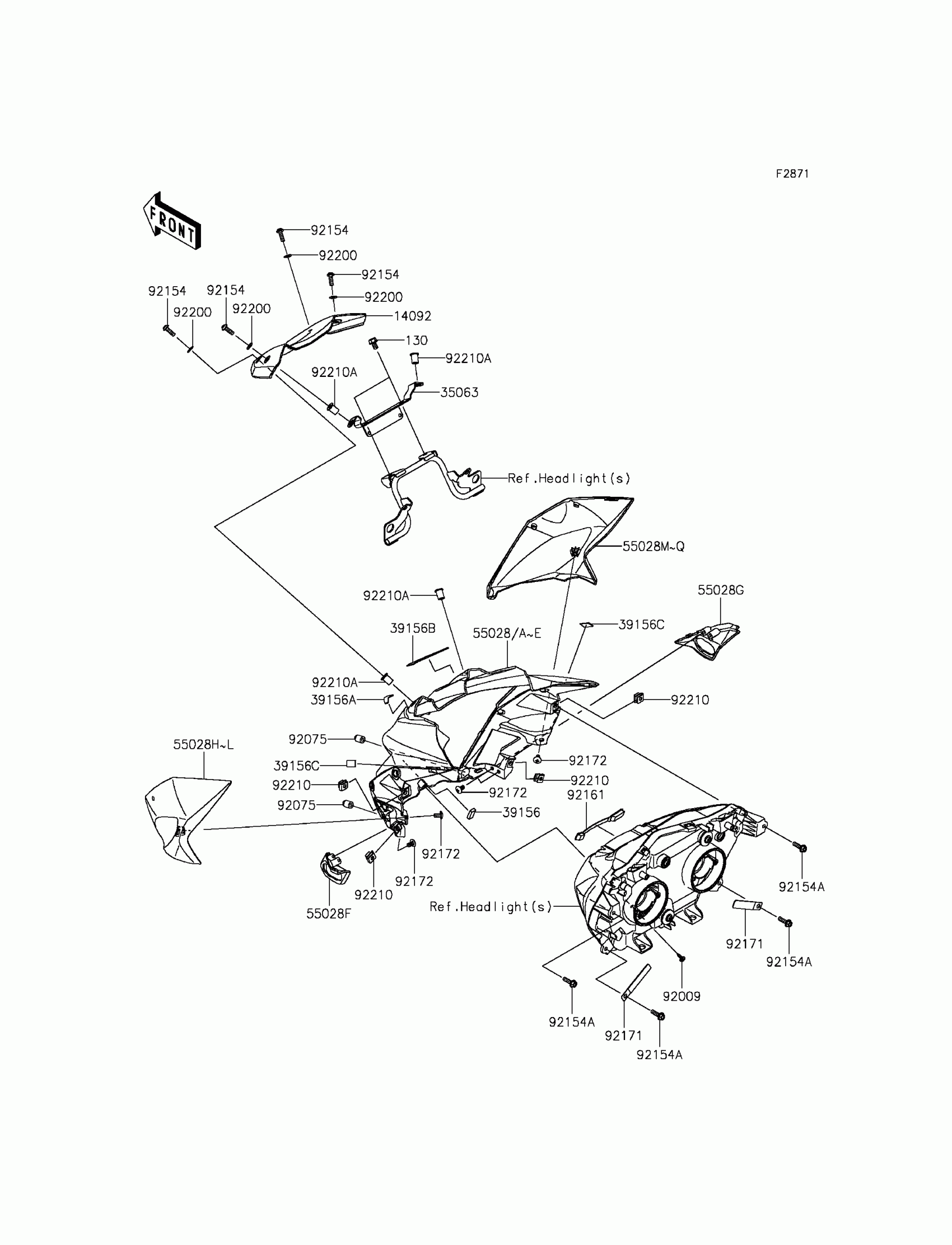

Kawasaki ZR800 (European) Cowling Diagram
#
Description
Price
130
BOLT-FLANGED,6X10
130BB0610
$2.49
14092
COVER,METER
14092-0964
Unavailable
35063
STAY
35063-0867
Unavailable
39156
PAD
39156-0284
$1.33
39156A
PAD
39156-0964
$4.37
39156B
PAD
39156-0965
$4.37
39156C
PAD
39156-0966
$1.18
55028B
COWLING,UPP,CNT,M.F.R.GRAY
55028-0428-35B
$233.27
55028C
COWLING,UPP,CNT,C.F.B.GREEN
55028-0428-35K
$233.27
55028E
COWLING,UPP,CNT,M.S.BLACK
55028-0428-660
Unavailable
55028F
COWLING,UPP,CNT,LH
55028-0429
$12.12
55028G
COWLING,UPP,CNT,RH
55028-0430
$12.12
55028H
COWLING,UPP,SIDE,LH,P.S.WHITE
55028-0431-25Y
$78.95
55028J
COWLING,UPP,SIDE,LH,F.EBONY
55028-0431-45L
$78.95
55028K
COWLING,UPP,SIDE,LH,M.S.BLACK
55028-0431-660
Unavailable
55028M
COWLING,UPP,SIDE,RH,P.S.WHITE
55028-0432-25Y
$78.95
55028O
COWLING,UPP,SIDE,RH,F.EBONY
55028-0432-45L
$78.95
55028P
COWLING,UPP,SIDE,RH,M.S.BLACK
55028-0432-660
$78.95
92009
SCREW,TAPPING,5X12,BL
92009-1138
$3.96
92075
DAMPER
92075-1964
$5.00
92154
BOLT,SOCKET,5X16
92154-0026
$2.55
92154A
BOLT,FLANGED,5X18
92154-0785
$0.85
92161
DAMPER,TAIL LAMP UPP
92161-0625
$5.59
92171
CLAMP,L=60
92171-0652
$2.61
92172
SCREW,TAPPING,5X10
92172-0262
$1.34
92200
WASHER,NYLON,5.3X11.5X0.5
92200-1480
$1.59
92210
NUT,5MM
92210-0351
$5.65
92210A
NUT,WELL,5MM
92210-0498
$7.29
