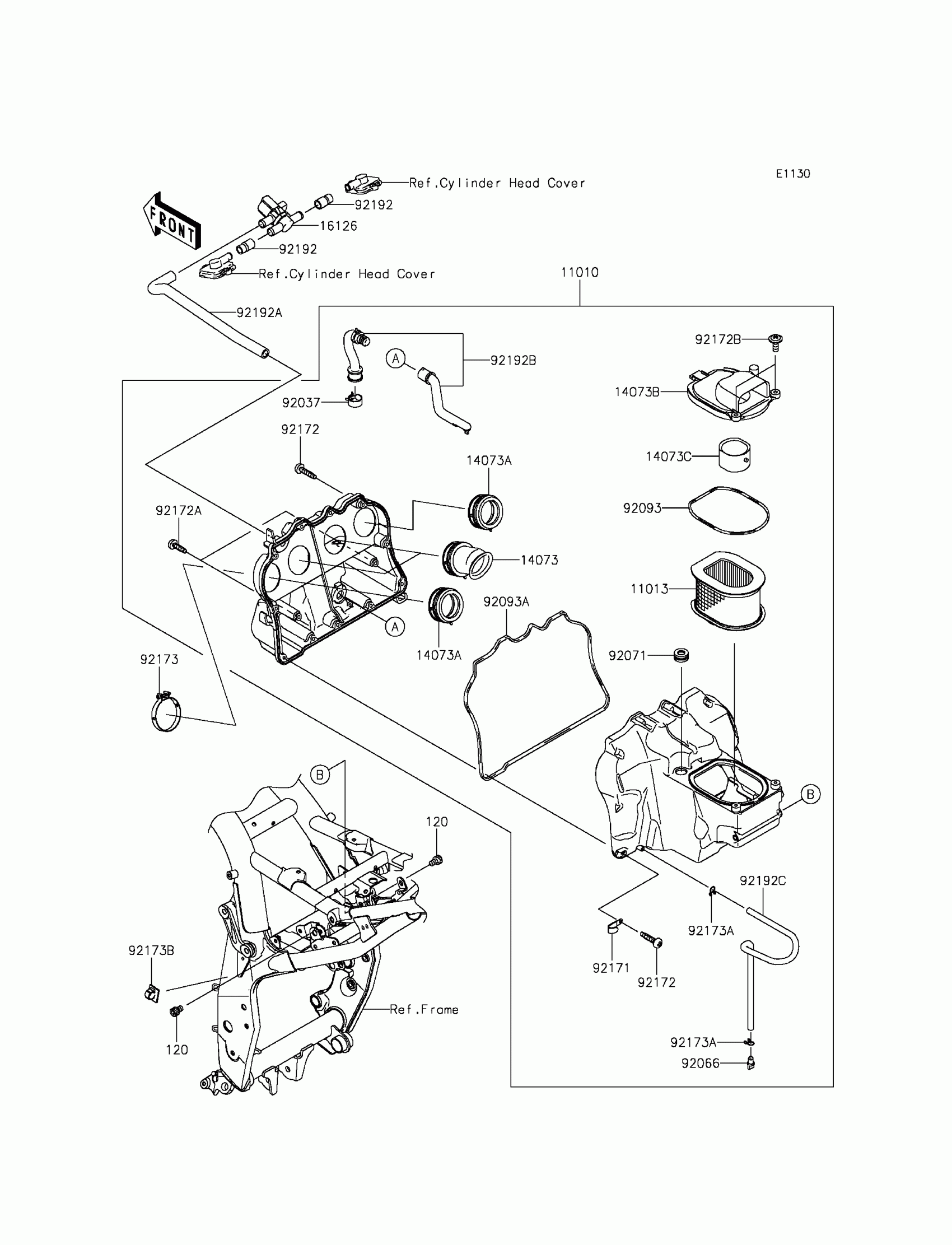

Kawasaki ZR800 (European) Air Cleaner Diagram

Description

Price

120

BOLT-SOCKET,6X8

120CA0608

$2.49

11010

FILTER-ASSY-AIR

11010-0775

$451.18

11013

ELEMENT-AIR FILTER

11013-0044

$71.58

14073

DUCT,FUNNEL #2

14073-0738

$35.85

14073A

DUCT,FUNNEL #1

14073-0746

$28.91

14073B

DUCT,INTAKE,TOP

14073-0748

$39.90

14073C

DUCT,INTAKE,UNDER

14073-0749

$23.03

16126

VALVE,AIR SWITCHING

16126-1437

$165.68

92037

CLAMP,HOSE CLIP

92037-1460

$8.23

92066

PLUG,DRAIN

92066-1211

$6.48

92071

GROMMET

92071-0714

$5.71

92093

SEAL

92093-0591

$7.76

92093A

SEAL

92093-0592

$17.14

92171

CLAMP

92171-1539

$1.98

92172

SCREW,TAPPING,5X25

92172-0803

$2.44

92172A

SCREW,TAPPING,5X20

92172-0804

$2.46

92172B

SCREW,6X16

92172-0805

$2.19

92173

CLAMP,58MM

92173-0927

$13.63

92173A

CLAMP,10MM

92173-1044

$2.11

92173B

CLAMP,DRAIN

92173-1055

$5.54

92192

TUBE,HEAD-ASV

92192-0033

$3.31

92192A

TUBE,ASV-A/C

92192-1106

$25.54

92192B

TUBE,BREATHER

92192-1158

$39.64

92192C

TUBE,DRAIN

92192-1313

$10.83
