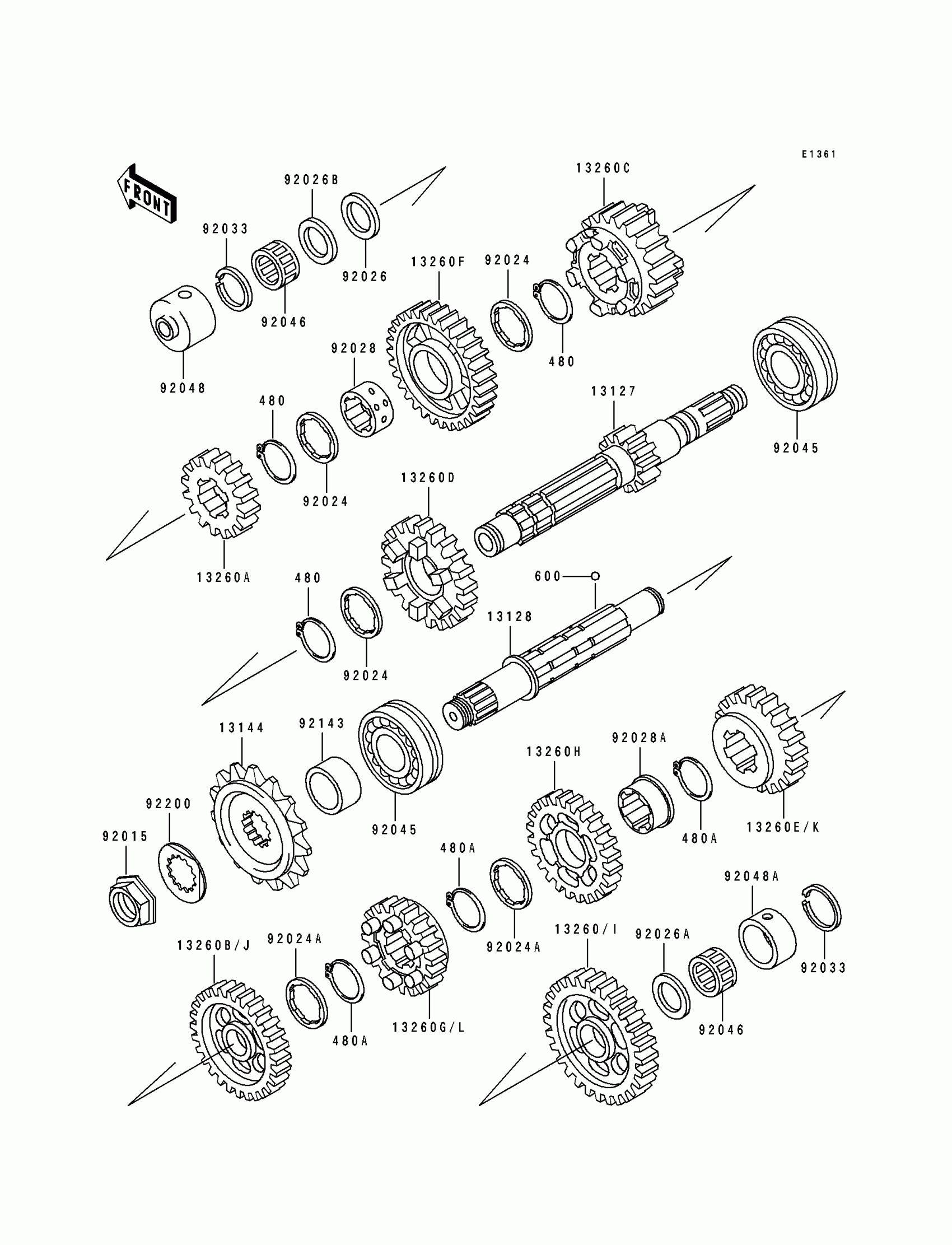

Kawasaki ZR1100 Zephyr Transmission Diagram

#

Description
Price

13127

SHAFT-TRANSMISSION INPUT,16T

13127-1215

Unavailable

13128

SHAFT-TRANSMISSION OUTPUT

13128-1187

Unavailable

13144

SPROCKET-OUTPUT,16T

13144-1200

Unavailable

13260A

GEAR,INPUT 2ND,21T

13260-1253

Unavailable

13260C

GEAR,INPUT 3RD,24T

13260-1255

Unavailable

13260D

GEAR,INPUT 4TH,27T

13260-1257

Unavailable

13260F

GEAR,INPUT TOP,29T

13260-1259

Unavailable

13260H

GEAR,OUTPUT 3RD,31T

13260-1286

Unavailable

13260I

GEAR,OUTPUT LOW,40T

13260-1303

Unavailable

13260J

GEAR,OUTPUT 2ND,35T

13260-1304

Unavailable

13260K

GEAR,OUTPUT 4TH,29T

13260-1305

Unavailable

13260L

GEAR,OUTPUT TOP,27T

13260-1306

Unavailable

92015

NUT,20MM

92015-1210

$18.81

92024

WASHER,TOOTHED,26X35.5X1.5

92024-042

$11.07

92024A

WASHER,TOOTHED,30.3X40X1.5

92024-043

$13.07

92026

SPACER,22X35.5X1.0

92026-1020

$5.23

92026A

SPACER,22X35.5X2.4

92026-1225

$9.58

92026B

SPACER,22X35.5X1.8

92026-1226

$9.58

92028

BUSHING,TOP GEAR

92028-1124

$45.48

92028A

BUSHING

92028-1403

$45.48

92033

RING-SNAP,20X25.5X1.2

92033-025

$4.96

92045

BEARING-BALL

92045-1197

$47.32

92046

BEARING-NEEDLE,FWF-223014

92046-031

$19.72

92048

RACE,INPUT SHAFT

92048-1052

$55.84

92048A

RACE,30X38X15

92048-1053

$28.71

92143

COLLAR,30X40X38

92143-1558

$44.59

92200

WASHER,TOOTHED,23.9X45X1.0

92200-1234

$6.07

480

CIRCLIP-TYPE-C,28MM

480J2800

$4.70

480A

CIRCLIP

480J2900

$6.22

600

BALL-STEEL,5/32

600A0500

$0.81
