1995 Kawasaki ZR1100 Zephyr Swingarm Diagram

← All diagrams

Find the part on the Swingarm diagram for your 1995 Kawasaki ZR1100 Zephyr, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

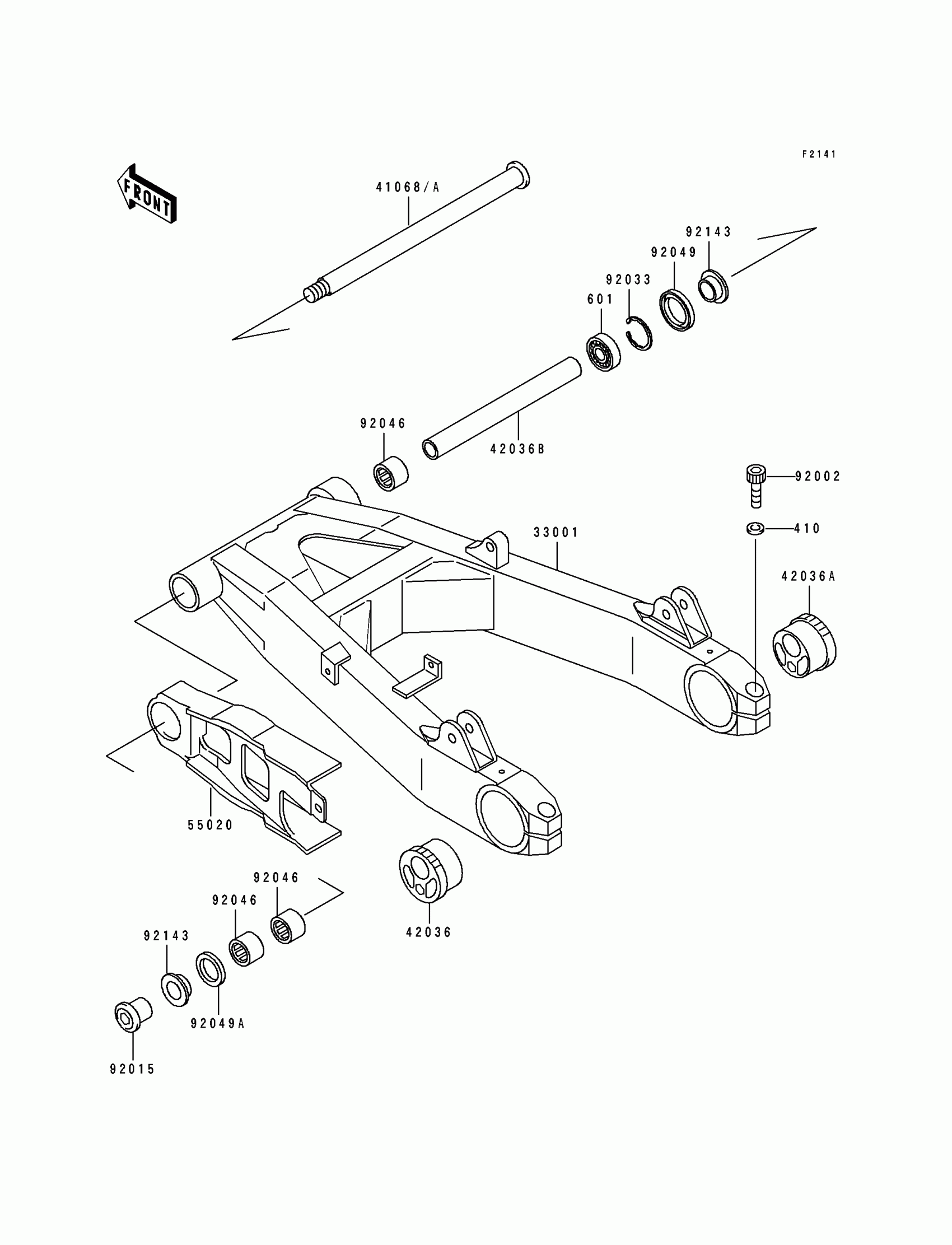

1995 Kawasaki ZR1100 Zephyr Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

33001

ARM-COMP-SWING,SILVER NO.25

33001-1398-CE

1
Out of stock

41068A

AXLE,RR

41068-1354

1
Out of stock

42036

SLEEVE,REAR AXLE,LH

42036-1237

1
Out of stock

42036A

SLEEVE,REAR AXLE,RH

42036-1265

1
Out of stock

42036B

SLEEVE,SWING ARM,L=203.5

42036-1266

1
Out of stock

55020

GUARD,CHAIN

55020-1420

1
Out of stock

92002

BOLT,SOCKET,10X40

92002-1452

1
Out of stock

92015

NUT,16MM

92015-1835

1
Out of stock

92033

RING-SNAP,42MM

92033-1041

1
Out of stock

92046

BEARING-NEEDLE,BM2817

92046-1111

1
Out of stock

92049

SEAL-OIL,MHSA25X42X6

92049-1314

1
Out of stock

92049A

SEAL-OIL,MHSA25X34X7

92049-1352

1
Out of stock

92143

COLLAR,SWING ARM,L=12.5

92143-1227

1
Out of stock

410

W-PLAIN-S

410E1000

1
Out of stock

601

BEARING-BALL,#6004

601A6004

1
Out of stock
