1995 Kawasaki ZR1100 Zephyr Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 1995 Kawasaki ZR1100 Zephyr, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

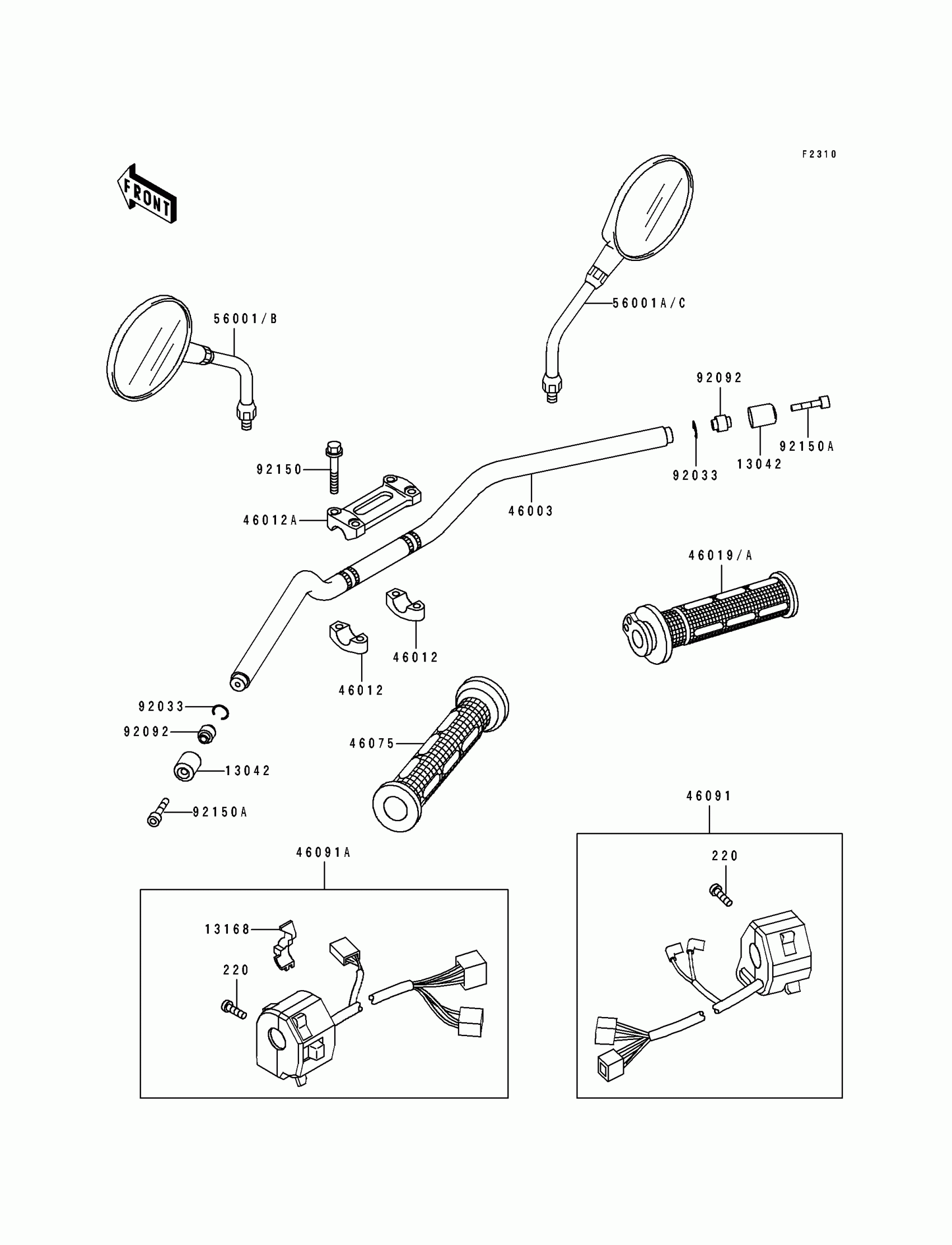

1995 Kawasaki ZR1100 Zephyr Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13042

WEIGHT,HANDLE

13042-1088

1
Out of stock

13168

LEVER,CHOKE

13168-1448

1
Out of stock

46003

HANDLE

46003-1358

1
Out of stock

46012

HOLDER-HANDLE,LWR

46012-1212

1
Out of stock

46012A

HOLDER-HANDLE,UPP

46012-1213

1
Out of stock

46019A

GRIP-ASSY,THROTTLE

46019-1077

1

$34.15

In stock

46075

GRIP,LH

46075-1088

1

$15.02

In stock

46091

HOUSING-ASSY-CONTROL,RH

46091-1553

1
Out of stock

46091A

HOUSING-ASSY-CONTROL,LH

46091-1561

1
Out of stock

56001B

MIRROR-ASSY,LH

56001-1431

1
Out of stock

56001C

MIRROR-ASSY,RH

56001-1432

1
Out of stock

92033

RING-SNAP,OD=22.2

92033-1102

1
Out of stock

92092

BUSHING-RUBBER,HANDLE

92092-1018

1
Out of stock

92150

BOLT,FLANGED,8X55

92150-1361

1
Out of stock

92150A

BOLT,SOCKET,8X30

92150-1604

1
Out of stock

220

SCREW-PAN-CROS

220C0520

1
Out of stock
