Description

Price

41068

AXLE,RR

41068-1256

Unavailable

41073A

WHEEL-ASSY,RR,P.C.GRAY

41073-1546-JD

$805.32

42033

COUPLING-ASSY,RR HUB,C.GRAY

42033-1152-EZ

$247.53

42036

SLEEVE,RR AXLE,L=62

42036-1229

Unavailable

42041

SPROCKET-HUB,48T

42041-1202

Unavailable

92004

STUD,10X24

92004-1146

$5.60

92015

NUT,10MM

92015-1720

$5.24

92022

WASHER,23X32X2.3

92022-1618

$6.22

92027

COLLAR,RR AXLE,L=28

92027-1810

$32.00

92027A

COLLAR,RR AXLE,L=20.5

92027-1884

$33.67

92033

RING-SNAP,52MM

92033-1043

$8.05

92033A

RING-SNAP,62MM

92033-1044

$11.29

92033B

RING-SNAP,RR AXLE

92033-1156

$4.96

92049

SEAL-OIL,28X52X5

92049-1061

$19.15

92050

SEAL-OIL,AJN40627

92050-027

$20.96

92057

CHAIN,DRIVE,EK50UV-XX116L

92057-1354

$430.44

92143

COLLAR,L=23

92143-1042

$37.73

92143A

COLLAR,20.2X29X89

92143-1199

Unavailable

92143B

COLLAR,RR AXLE,L=46.5

92143-1556

$21.86

92160

DAMPER,SHOCK,RR HUB

92160-1330

$116.35

601

BEARING-BALL,#6206UUC3

601B6206UU

$40.38

601A

BEARING-BALL,#6304UUC3

601B6304UU

$34.48

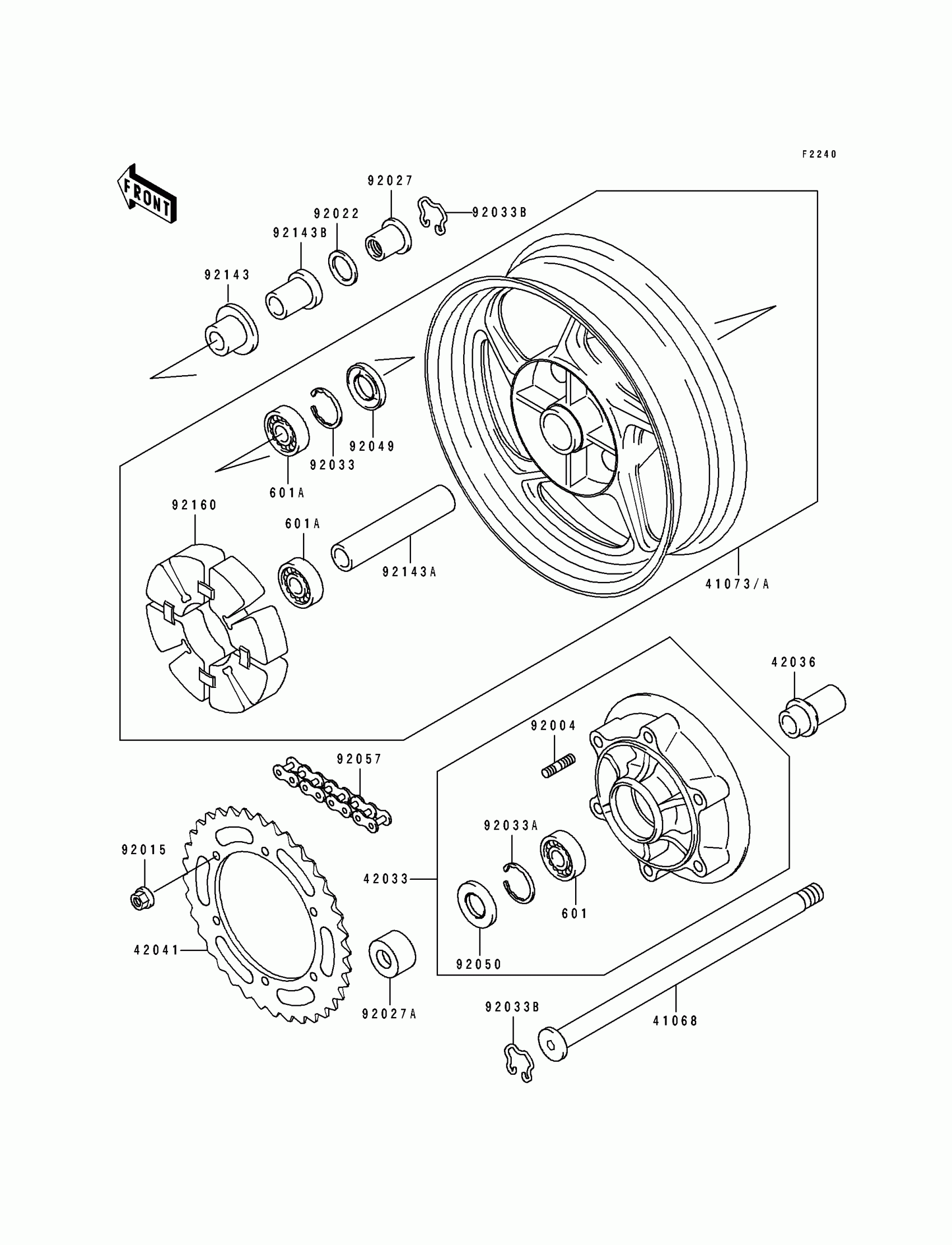

Kawasaki ZR1100 Zephyr Rear Wheel/Chain Diagram

AXLE,RR

WHEEL-ASSY,RR,P.C.GRAY

COUPLING-ASSY,RR HUB,C.GRAY

SLEEVE,RR AXLE,L=62

SPROCKET-HUB,48T

STUD,10X24

NUT,10MM

WASHER,23X32X2.3

COLLAR,RR AXLE,L=28

COLLAR,RR AXLE,L=20.5

RING-SNAP,52MM

RING-SNAP,62MM

RING-SNAP,RR AXLE

SEAL-OIL,28X52X5

SEAL-OIL,AJN40627

CHAIN,DRIVE,EK50UV-XX116L

COLLAR,L=23

COLLAR,20.2X29X89

COLLAR,RR AXLE,L=46.5

DAMPER,SHOCK,RR HUB

BEARING-BALL,#6206UUC3

BEARING-BALL,#6304UUC3
