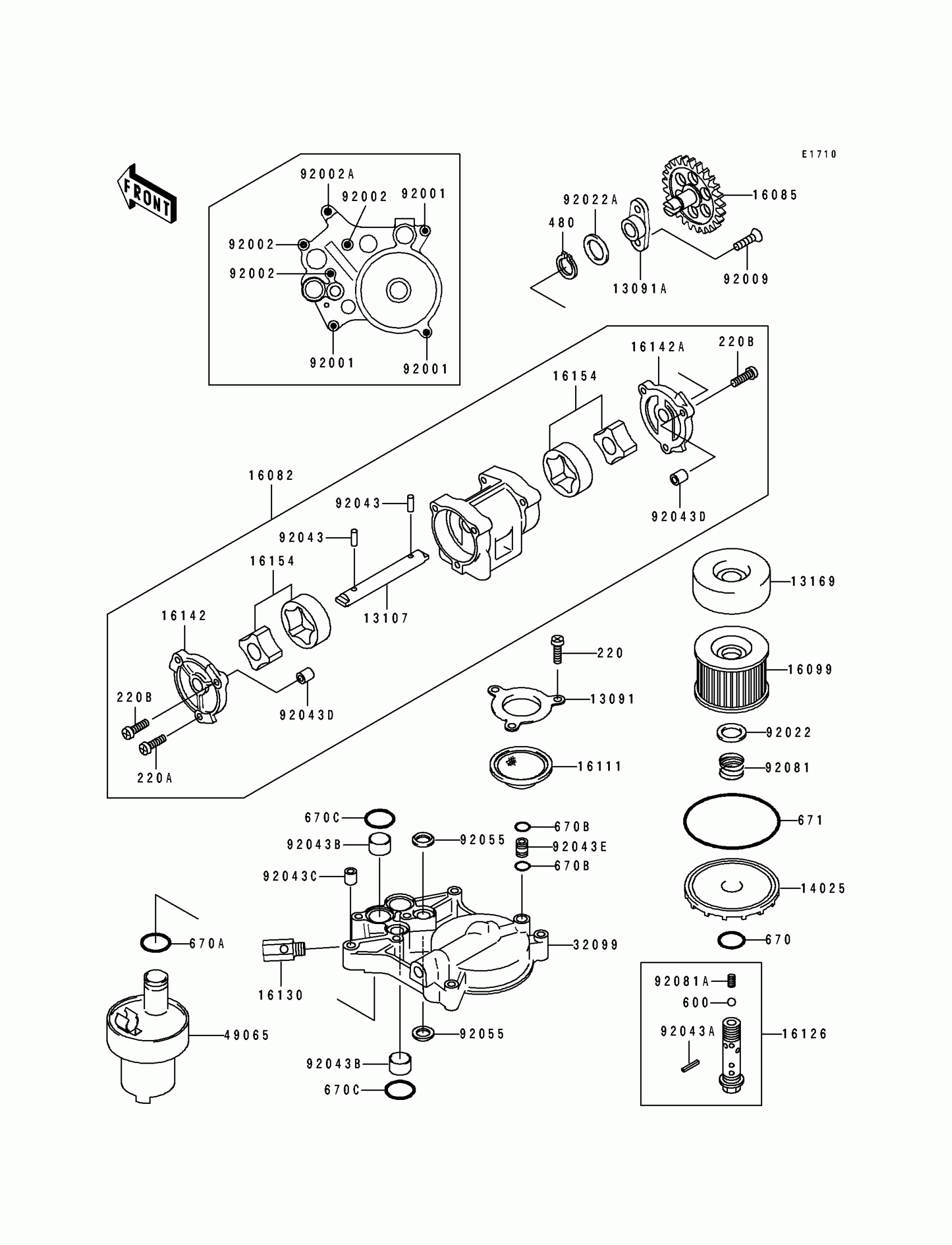

Kawasaki ZR1100 Zephyr Oil Pump/Oil Filter Diagram

#

Description
Price

13091

HOLDER,OIL FILTER

13091-1274

$14.36

13091A

HOLDER,PUMP GEAR

13091-1333

$32.00

13107

SHAFT

13107-1191

$49.62

13169

PLATE,OIL FILTER

13169-1313

$10.65

14025

COVER,OIL FILTER,F.BLACK

14025-1422

$44.52

16082

PUMP-ASSY-OIL

16082-1076

$333.45

16085

GEAR,OIL PUMP,35T

16085-1153

$129.22

16099

ELEMENT-OIL FILTER

16099-003

$12.20

16111

FILTER,OIL

16111-003

$20.68

16126

VALVE,OIL FILTER

16126-1108

$41.98

16130

VALVE-ASSY-RELIEF

16130-1001

Unavailable

16142

COVER-PUMP,LH

16142-1070

$46.20

16142A

COVER-PUMP,RH

16142-1071

$48.81

16154

ROTOR-PUMP

16154-1062

$58.60

32099

CASE,OIL FILTER

32099-1082

$133.43

49065

FILTER-OIL

49065-1069

$38.46

92001

BOLT,FLANGED,6X38

92001-1105

$4.69

92002

BOLT,6X38

92002-1431

$5.52

92002A

BOLT,6X43

92002-1881

$7.24

92009

SCREW,6X16

92009-1360

$4.31

92022

WASHER,20.5X30X1

92022-1012

$4.34

92022A

WASHER,14X20X1

92022-1495

$4.31

92043

PIN,DOWEL,5X17.8

92043-1061

$4.92

92043A

PIN,SPRING,2X20

92043-111

$6.27

92043B

PIN,18X20X12

92043-1213

$6.27

92043C

PIN,6.2X8X14

92043-1263

$0.43

92043D

PIN,DOWEL,8X10

92043-1302

$1.03

92043E

PIN

92043-1304

$9.89

92055

RING-O,19.5MM

92055-077

$6.57

92081

SPRING,OIL FILTER

92081-1018

$4.65

92081A

SPRING

92081-109

$11.29

220

SCREW PAN HEAD 6X12

220B0612

Unavailable

220A

SCREW PAN HEAD 6X18

220B0618

$3.67

220B

SCREW PAN HEAD 6X25

220B0625

$2.60

480

CIRCLIP-TYPE-C,14MM

480J1400

$5.00

600

BALL-STEEL,3/8"

600A1200

$1.56

670

O RING,16MM

670B2016

$1.36

670A

O RING,18MM

670B2018

$1.42

670B

O RING

670D1505

$4.31

670C

O RING,20MM

670D2020

$6.22

671

O RING,90MM

671B2590

$9.91
