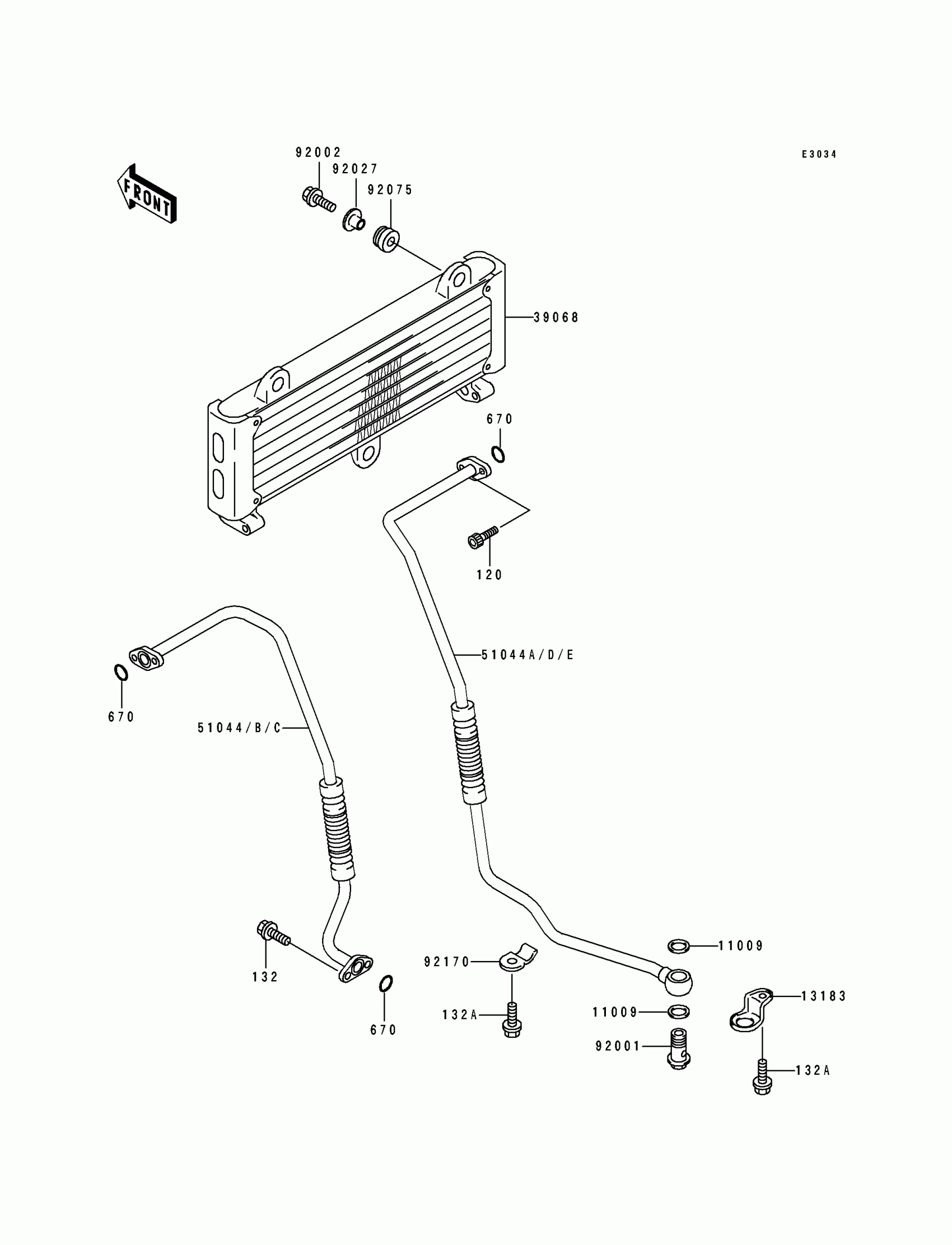

Kawasaki ZR1100 Zephyr Oil Cooler Diagram

Description

Price

11009

GASKET,14X19.5X1.4

11009-1461

$4.04

13183

PLATE,LOCK

13183-1862

Unavailable

39068

COOLER-ASSY-OIL

39068-1057

$461.80

51044B

TUBE-ASSY,LH

51044-1166

$251.42

51044D

TUBE-ASSY,RH

51044-1167

$251.42

92001

BOLT,14X28.5

92001-1930

$9.59

92002

BOLT,6X22

92002-1068

$3.58

92027

COLLAR,FLANGED,L=12.1,BLACK

92027-1651

$3.98

92075

DAMPER

92075-277

$1.90

92170

CLAMP

92170-1295

$4.14

120

BOLT-SOCKET,6X25,BLACK

120S0625

Unavailable

132

BOLT-FLANGED-SMALL,6X16

132E0616

$4.17

132A

BOLT-FLANGED-SMALL,6X12

132H0612

Unavailable

670

O RING,10MM

670B2010

$1.13
