Description

Price

14031

COVER-GENERATOR

14031-1311

Unavailable

21001

GENERATOR

21001-1123

$965.71

21003

STATOR,GENERATOR

21003-1162

$681.98

21007

ROTOR,GENERATOR

21007-1152

$598.65

21039

BRUSH,CARBON

21039-1058

$32.36

21040

SPRING-BRUSH

21040-1054

$9.41

21061

RECTIFIER

21061-1056

$321.17

21066

REGULATOR-VOLTAGE

21066-1062

$675.66

26011

WIRE-LEAD,GENERATOR

26011-1537

$63.70

39184

BRACKET-ASSY,FR

39184-1063

$131.63

39184A

BRACKET-ASSY,RR

39184-1064

$988.50

42034

COUPLING

42034-1084

$87.77

92002

BOLT,8X45

92002-1658

$9.05

92009

SCREW

92009-1451

$8.98

92009A

SCREW

92009-1452

$13.08

92015

NUT

92015-1624

$17.10

92022

WASHER,6X19.5X2

92022-1517

$2.33

92037

CLAMP,L=45

92037-1539

$5.00

92045

BEARING-BALL

92045-1181

$58.55

92045A

BEARING-BALL

92045-1279

$70.20

92049

SEAL-OIL

92049-1274

$57.89

92055

RING-O

92055-1365

$37.85

92143

COLLAR

92143-1054

$10.54

92144

SPRING,WASHER

92144-1067

$5.54

92160

DAMPER,6.3X22X20

92160-1013

$8.66

92160A

DAMPER

92160-1334

$3.86

112

BOLT-UPSET,6X16

112G0616

$1.10

132

BOLT-FLANGED-SMALL,6X25

132E0625

$1.13

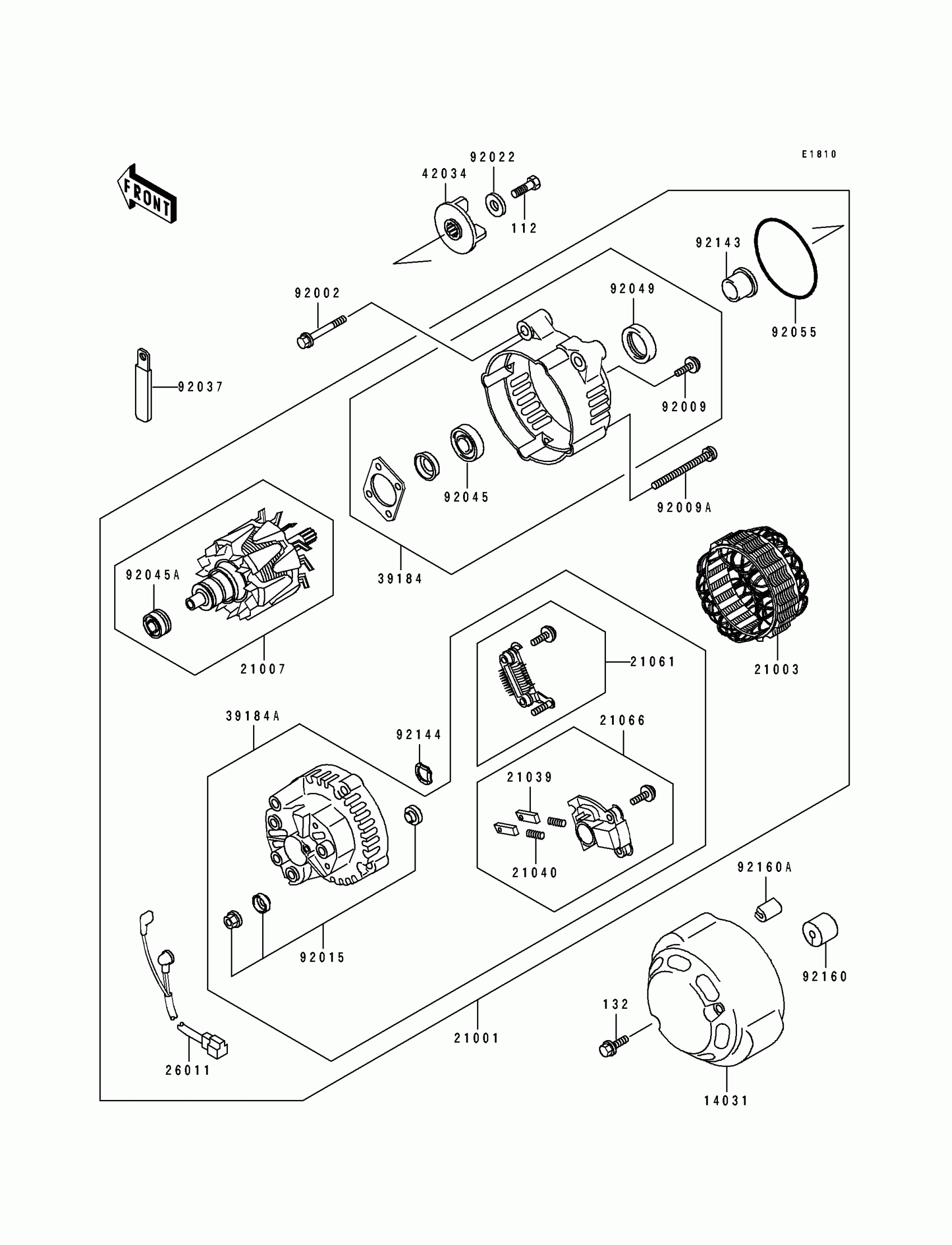

Kawasaki ZR1100 Zephyr Generator Diagram

COVER-GENERATOR

GENERATOR

STATOR,GENERATOR

ROTOR,GENERATOR

BRUSH,CARBON

SPRING-BRUSH

RECTIFIER

REGULATOR-VOLTAGE

WIRE-LEAD,GENERATOR

BRACKET-ASSY,FR

BRACKET-ASSY,RR

COUPLING

BOLT,8X45

SCREW

SCREW

NUT

WASHER,6X19.5X2

CLAMP,L=45

BEARING-BALL

BEARING-BALL

SEAL-OIL

RING-O

COLLAR

SPRING,WASHER

DAMPER,6.3X22X20

DAMPER

BOLT-UPSET,6X16

BOLT-FLANGED-SMALL,6X25
