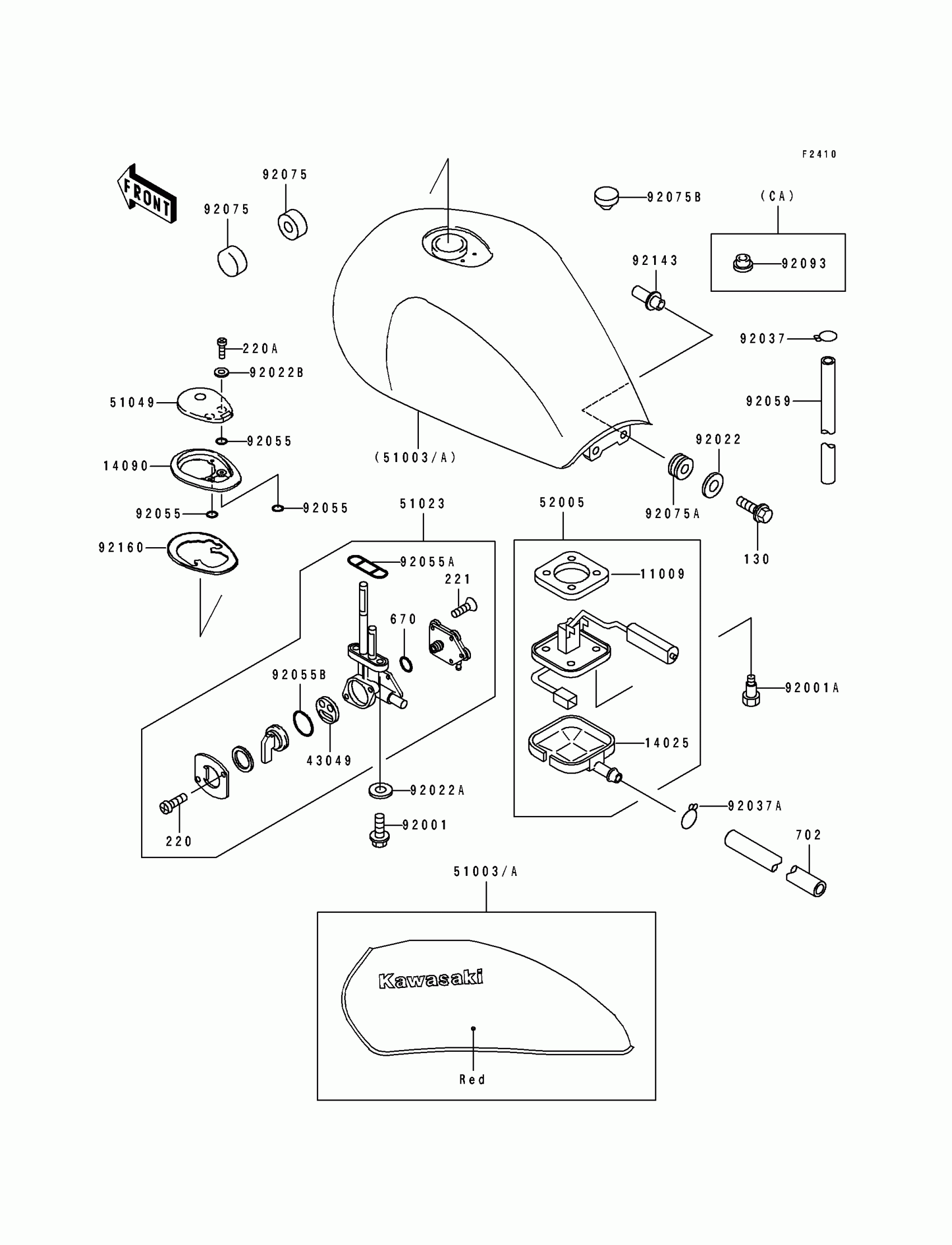

Kawasaki ZR1100 Zephyr Fuel Tank Diagram

#

Description
Price

11009

GASKET,FUEL GAUGE

11009-1656

Unavailable

14025

COVER,FUEL GAUGE

14025-1536

Unavailable

14090

COVER,TANK CAP

14090-1180

$87.53

43049

PACKING,TAP VALVE

43049-1066

$5.54

51003

TANK-COMP-FUEL,L.V.RED

51003-5444-P5

$1,306.38

51023

TAP-ASSY,FUEL

51023-1166

$134.97

51049

CAP-TANK,FUEL

51049-1088

$112.77

52005

GAUGE,FUEL

52005-1103

Unavailable

92001

BOLT,6X20

92001-1091

$2.99

92001A

BOLT,FUEL GAUGE

92001-1705

Unavailable

92022

WASHER,6.5X24X2

92022-1690

$2.99

92022A

WASHER-PLAIN

92022-183

$2.99

92022B

WASHER,5.1X10X1.0

92022-1977

$2.76

92037

CLAMP,TUBE

92037-010

$2.99

92037A

CLAMP,TUBE

92037-147

$5.61

92055

RING-O

92055-1023

$2.99

92055A

RING-O,FUEL TAP PACKING

92055-1112

$3.81

92055B

RING-O,TAP LEVER

92055-1419

$3.81

92059

TUBE,6X9X360

92059-103

$14.06

92075

DAMPER,FUEL TANK

92075-101

$4.67

92075A

DAMPER,10X24X12

92075-1690

$3.81

92075B

DAMPER

92075-1737

$6.55

92143

COLLAR

92143-1560

Unavailable

92160

DAMPER,TANK CAP COVER

92160-1339

$14.56

130

BOLT-FLANGED,6X50

130G0650

Unavailable

220

SCREW-PAN-CROS,3X8

220B0308

$0.54

220A

SCREW-PAN-CROS

220B0514

Unavailable

221

SCREW-CSK-CROS,4X14

221B0414

Unavailable

670

O RING,4MM

670B1504

$3.14

702

TUBE-RUBBER,7X10X550

702A07550

$10.11
