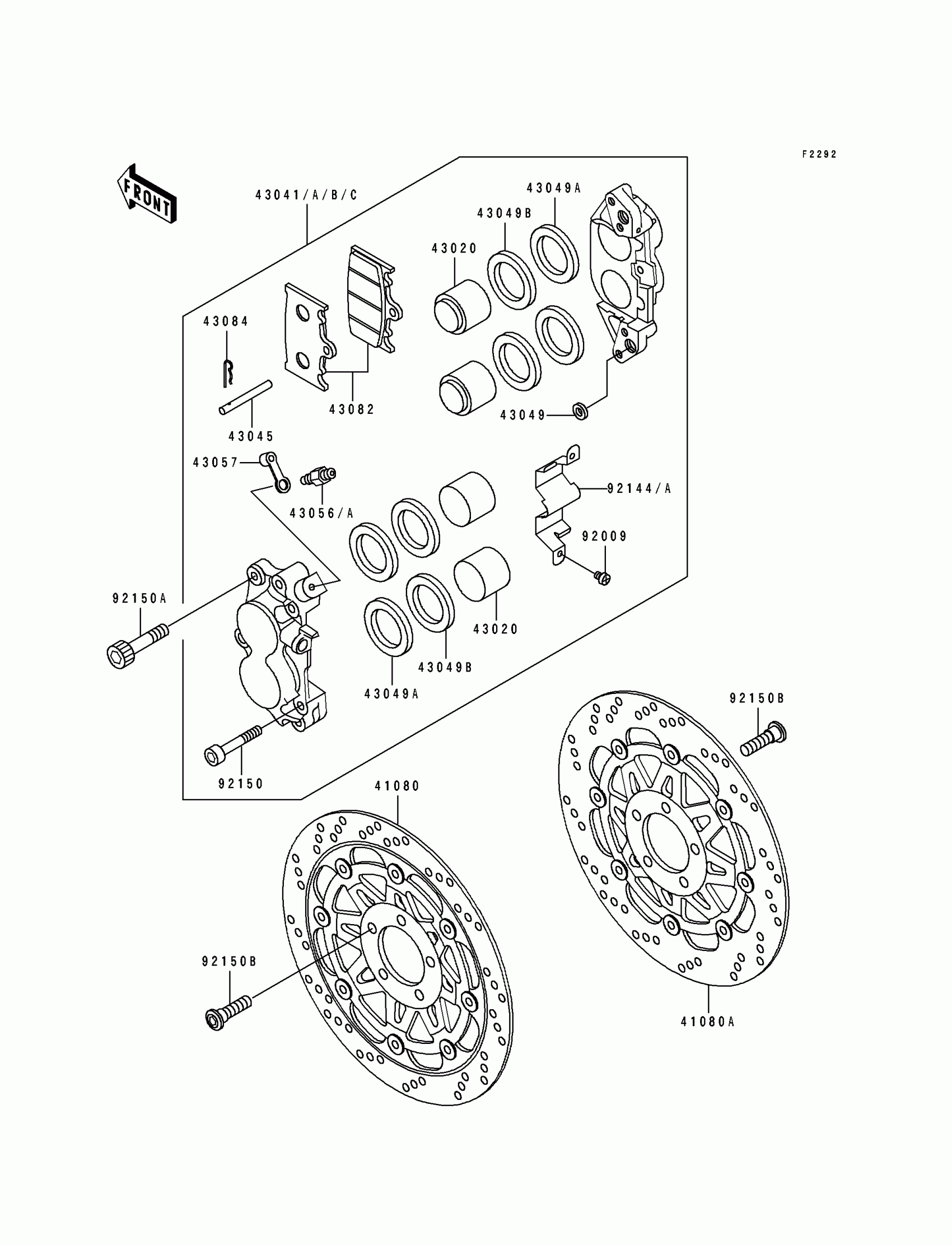

Kawasaki ZR1100 Zephyr Front Brake Diagram

Description

Price

41080

DISC,FR,LH,C.GRAY

41080-1349-FF

Unavailable

41080A

DISC,FR,RH,C.GRAY

41080-1350-FF

Unavailable

43020

PISTON-COMP-BRAKE

43020-1092

$72.80

43041B

CALIPER-ASSY,FR,LH,M.F.GRAY

43041-1512-FE

$511.69

43041C

CALIPER-ASSY,FR,RH,M.F.GRAY

43041-1513-FE

$357.21

43045

SHAFT-CALIPER

43045-007

$6.51

43049

PACKING,SEAL,6.5X11.5X2.2

43049-1004

$6.16

43049A

PACKING,PISTON SEAL

43049-1067

$10.39

43049B

PACKING

43049-1068

$9.82

43056

BREATHER

43056-003

$24.57

43056A

BREATHER-BRAKE

43056-1054

$24.57

43057

CAP-BREATHER

43057-003

$2.45

43082

PAD-ASSY-BRAKE

43082-1120

$63.94

43084

CLAMP,PAD

43084-003

$4.31

92009

SCREW,4X6

92009-1569

$2.78

92144

SPRING

92144-1399

$30.84

92144A

SPRING,FR CALIPER,RH

92144-1400

$25.29

92150

BOLT,SOCKET,8X40

92150-1272

$6.15

92150A

BOLT,FLANGED,10X38

92150-1297

$6.63

92150B

BOLT,8X30

92150-1728

$4.69
