1995 Kawasaki ZR1100 Zephyr Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 1995 Kawasaki ZR1100 Zephyr, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

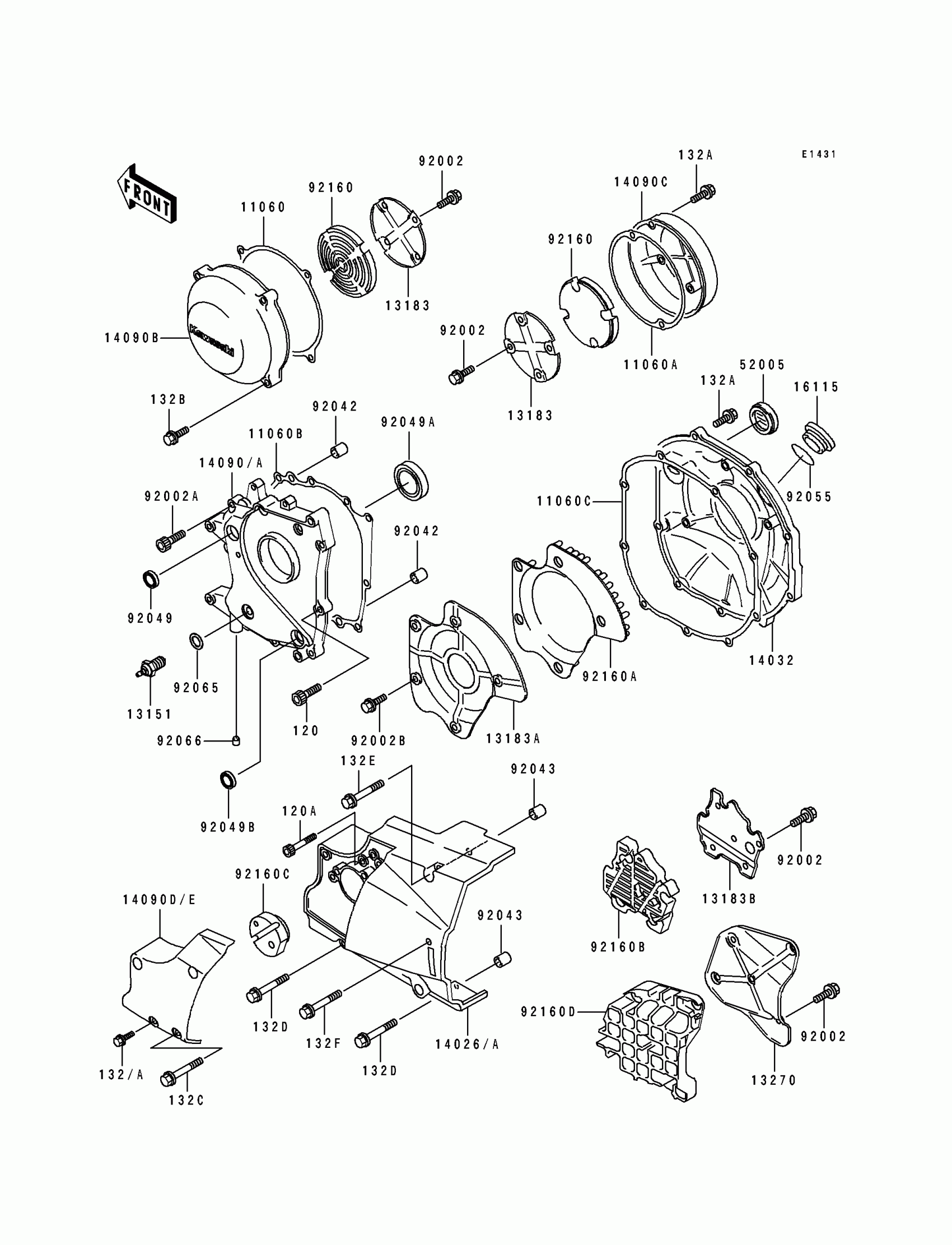

1995 Kawasaki ZR1100 Zephyr Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11060

GASKET,COVER,LH

11060-1097

1
Out of stock

11060A

GASKET,PULSING COIL COVER

11060-1098

1
Out of stock

11060B

GASKET,GEAR CASE

11060-1265

1
Out of stock

11060C

GASKET,CLUTCH COVER

11060-1284

1
Out of stock

13151

SWITCH-COMP,NEUTRAL

13151-1007

1
Out of stock

13183

PLATE

13183-1789

1
Out of stock

13183A

PLATE,CLUTCH COVER

13183-1790

1
Out of stock

13183B

PLATE,CHAIN COVER

13183-1861

1
Out of stock

13270

PLATE,CHAIN COVER

13270-1416

1
Out of stock

14026

COVER-CHAIN

14026-1218

1

$134.03

In stock

14032

COVER-CLUTCH

14032-1424

1

$193.78

In stock

14090A

COVER,TRANSMISSION

14090-1569

1

$150.40

In stock

14090B

COVER,LH

14090-1570

1
Out of stock

14090C

COVER,PULSING COIL

14090-1571

1
Out of stock

14090D

COVER,CLUTCH RELEASE

14090-1572

1
Out of stock

16115

CAP-OIL FILLER

16115-1056

1
Out of stock

52005

GAUGE,OIL LEVEL

52005-1009

1
Out of stock

92002

BOLT,6X10

92002-1449

1
Out of stock

92002A

BOLT,SOCKET,6X25

92002-1696

1
Out of stock

92002B

BOLT,6X8

92002-1944

1
Out of stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1
Out of stock

92049

SEAL-OIL,SD-8187

92049-1017

1
Out of stock

92049A

SEAL-OIL,AE2343F0

92049-1070

1
Out of stock

92049B

SEAL-OIL,TB13205

92049-1186

1
Out of stock

92055

RING-O,31.5X2.6

92055-049

1
Out of stock

92065

GASKET,10.5X16X1

92065-058

1
Out of stock

92066

PLUG,OIL LINE,7.2X8

92066-1012

1
Out of stock

92160

DAMPER

92160-1332

1
Out of stock

92160A

DAMPER,CLUTCH COVER

92160-1333

1
Out of stock

92160B

DAMPER,CHAIN COVER

92160-1371

1
Out of stock

92160C

DAMPER,CLUTCH RELEASE COVER

92160-1373

1
Out of stock

92160D

DAMPER,CHAIN COVER

92160-1599

1
Out of stock

120

BOLT-SOCKET,6X25

120P0625

1
Out of stock

120A

BOLT-SOCKET,6X70

120P0670

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X25

132E0625

1
Out of stock

132B

1

$5.42

In stock

132C

1

$4.61

In stock

132D

BOLT-FLANGED-SMALL

132E0650

1
Out of stock

132E

BOLT-FLANGED-SMALL

132E0670

1
Out of stock

132F

BOLT-FLANGED-SMALL

132E0685

1
Out of stock
