1995 Kawasaki ZR1100 Zephyr Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1995 Kawasaki ZR1100 Zephyr, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

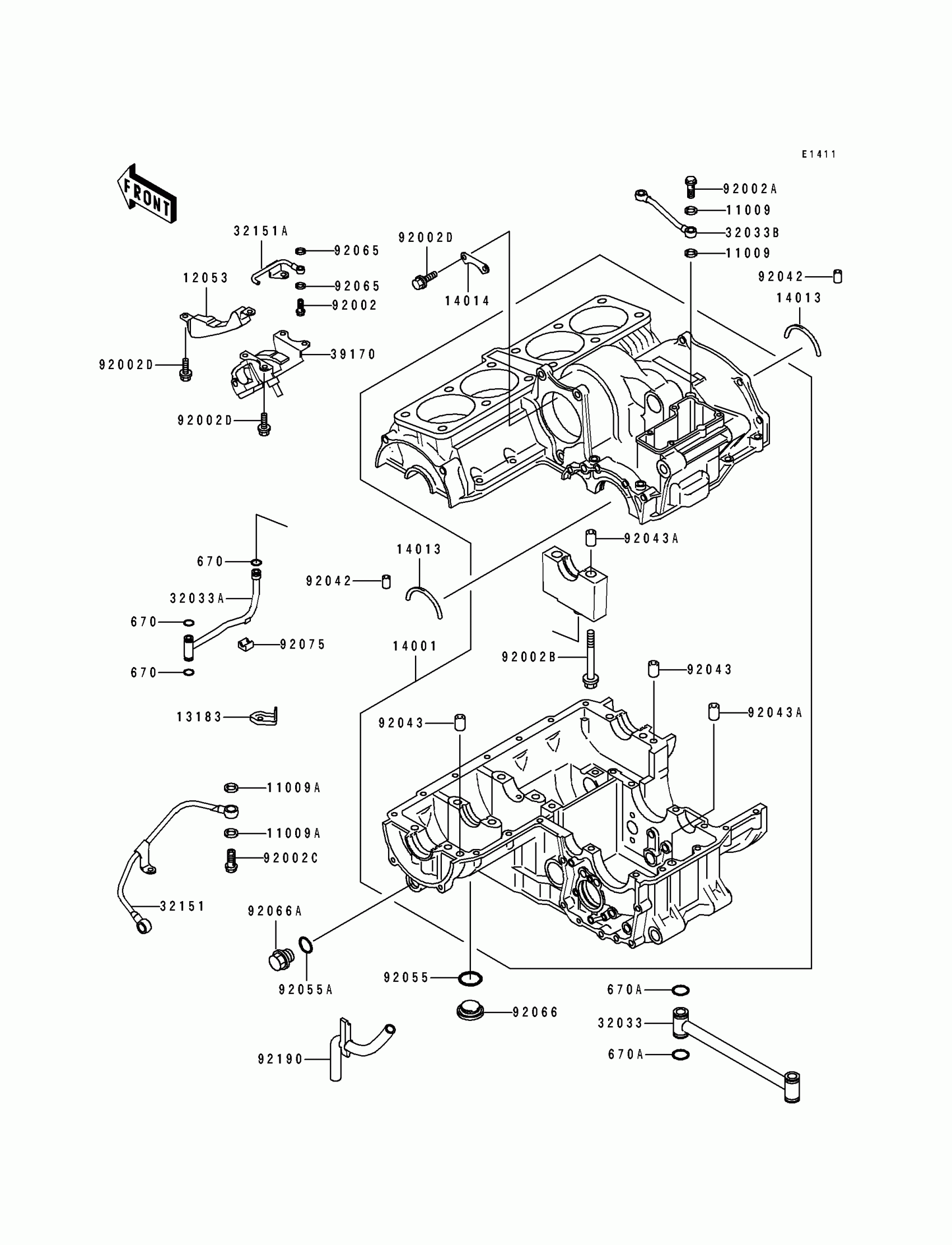

1995 Kawasaki ZR1100 Zephyr Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,8.2X14X1.0

11009-1344

1
Out of stock

11009A

GASKET,12.5X18X1.5

11009-1376

1
Out of stock

12053

GUIDE-CHAIN

12053-1301

1
Out of stock

13183

PLATE

13183-1863

1
Out of stock

14001

SET-CRANKCASE

14001-1084

1
Out of stock

14013

1

$4.85

In stock

14014

PLATE-POSITION

14014-1075

1

$5.37

In stock

32033

PIPE,MAIN GALLERY

32033-1928

1
Out of stock

32033A

PIPE

32033-1930

1
Out of stock

32033B

PIPE

32033-1931

1
Out of stock

32151

PIPE

32151-1111

1
Out of stock

32151A

PIPE

32151-1229

1
Out of stock

39170

TENSIONER-COMP

39170-1063

1
Out of stock

92002

BOLT,BANJO,6X19

92002-1473

1
Out of stock

92002A

BOLT,BANJO,8X20

92002-1618

1
Out of stock

92002B

BOLT,10X95

92002-1651

1
Out of stock

92002C

BOLT,BANJO,12X27

92002-1655

1
Out of stock

92002D

BOLT,6X14

92002-1656

1
Out of stock

92042

PIN,DOWEL,6X16

92042-016

1
Out of stock

92043

PIN,DOWEL,10X14

92043-1037

1
Out of stock

92043A

PIN,11.5X14X14

92043-1279

1
Out of stock

92055

RING-O,25.7X2.4

92055-1136

1
Out of stock

92055A

RING-O,20X2

92055-1146

1
Out of stock

92065

GASKET

92065-096

1
Out of stock

92066

PLUG,OIL RETURN

92066-1232

1
Out of stock

92066A

PLUG,MAIN GALLERY,18X9

92066-1394

1
Out of stock

92075

DAMPER,PIPE

92075-1785

1
Out of stock

92190

TUBE,BREATHER

92190-1275

1
Out of stock

670

O RING,9MM

670D1509

1
Out of stock

670A

O RING,16MM

670D2016

1
Out of stock
