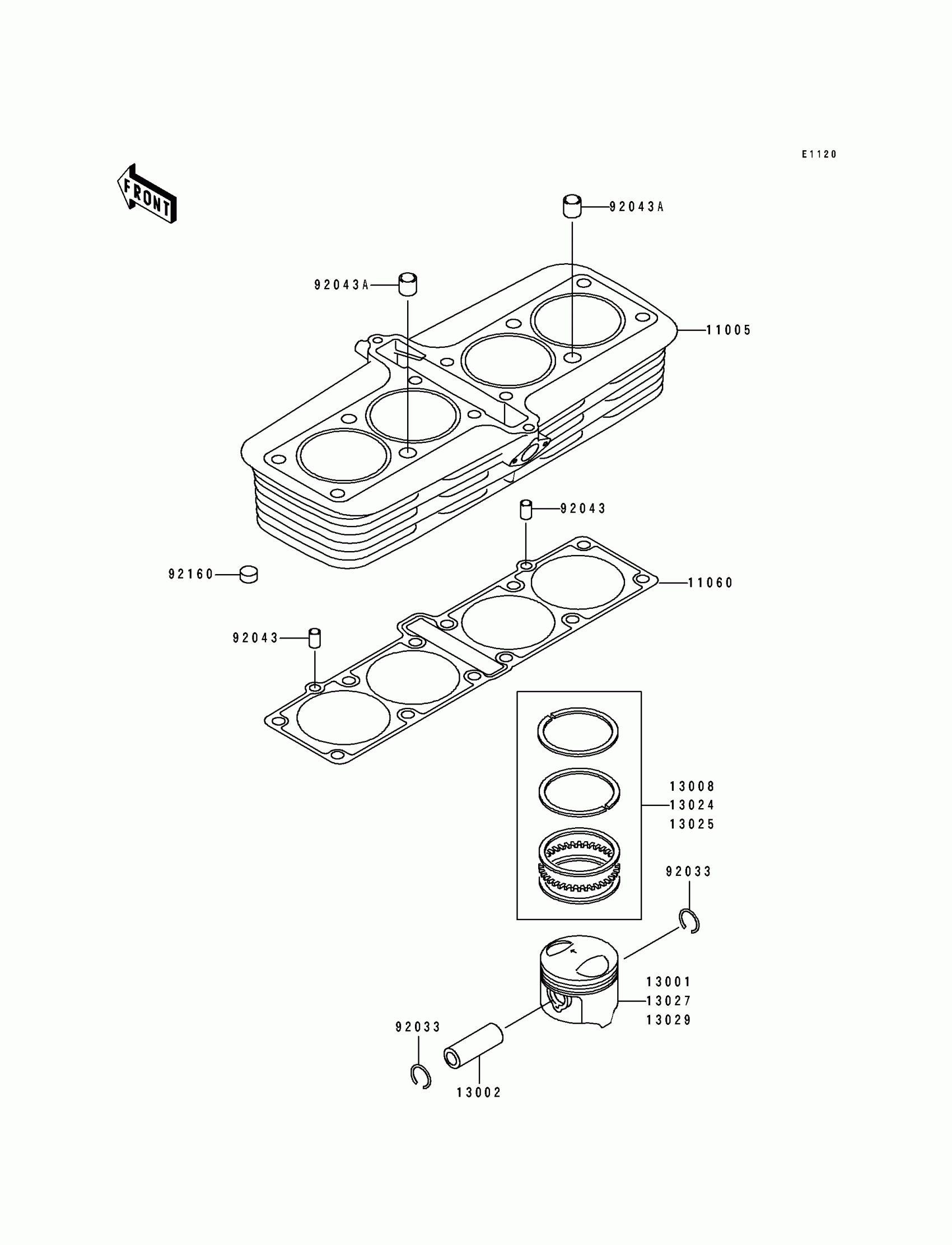

Kawasaki ZR1100 Zephyr Cylinder/Piston(s) Diagram

Description

Price

11005

CYLINDER-ENGINE

11005-1678

Unavailable

11060

GASKET,CYLINDER BASE

11060-1264

Unavailable

13001

PISTON-ENGINE,STD

13001-1378

Unavailable

13002

PIN-PISTON

13002-1086

$26.79

13008

RING-SET-PISTON,STD

13008-1143

Unavailable

13024

RING-SET-PISTON LL,O/S 1.00

13024-1091

Unavailable

13025

RING-SET-PISTON L,O/S 0.50

13025-1115

Unavailable

13027

PISTON-ENGINE LL,O/S 1.00

13027-1168

Unavailable

13029

PISTON-ENGINE L,O/S 0.50

13029-1212

Unavailable

92033

RING-SNAP

92033-1182

$4.35

92043

PIN,8.2X10X14

92043-1264

$0.64

92043A

PIN,11.5X14X14

92043-1279

$5.00

92160

DAMPER

92160-1388

$3.51
