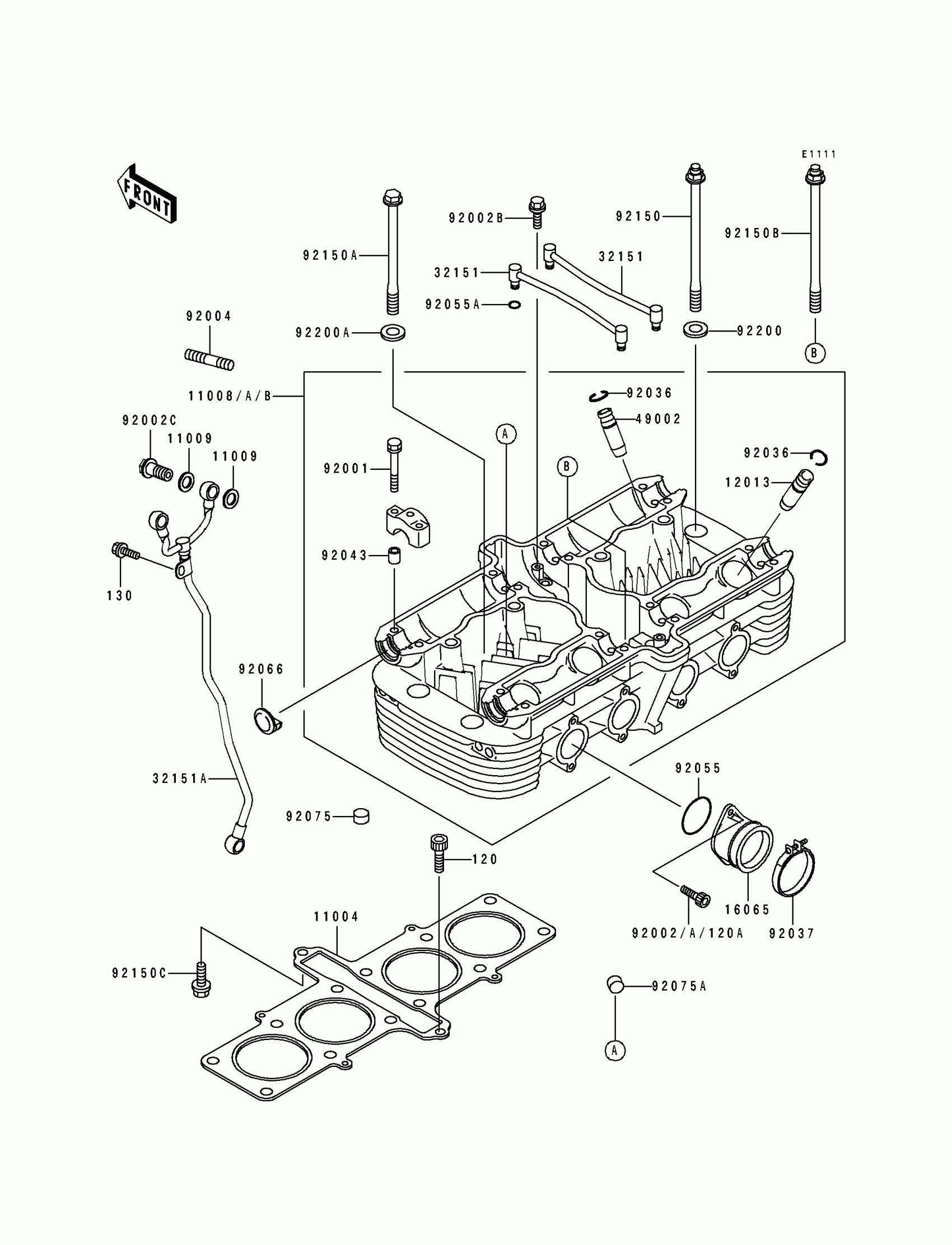

Kawasaki ZR1100 Zephyr Cylinder Head Diagram

#

Description
Price

11004

GASKET-HEAD

11004-1237

Unavailable

11008A

HEAD-COMP-CYLINDER

11008-1289

Unavailable

11009

GASKET,12.5X18X1.5

11009-1376

$1.85

12013

GUIDE-VALVE,INTAKE

12013-009

Unavailable

16065

HOLDER-CARBURETOR

16065-1253

$39.19

32151

PIPE,EXHAUST-INTAKE

32151-1110

$29.66

32151A

PIPE,OIL PAN-HEAD

32151-1112

$107.72

49002

GUIDE-VALVE,EXHAUST

49002-1002

Unavailable

92001

BOLT,6X46

92001-1872

$4.31

92002

BOLT,6X16

92002-1143

$3.92

92002B

BOLT,6X10

92002-1449

$4.11

92002C

BOLT,BANJO,12X27

92002-1655

$17.56

92004

STUD,8X25

92004-1214

Unavailable

92036

RING-SNAP,VALVE GUIDE

92036-023

$0.48

92037

CLAMP

92037-1637

$9.05

92043

PIN,6.2X8X14

92043-1263

$0.43

92055

RING-O,38MM

92055-1295

$16.33

92055A

RING-O,5.5X1.5

92055-1339

$4.32

92066

PLUG,CYLINDER HEAD COVER

92066-1422

$24.61

92075

DAMPER

92075-1089

$8.12

92075A

DAMPER

92075-182

$4.31

92150

BOLT,11X164

92150-1075

$19.83

92150A

BOLT,11X140

92150-1566

Unavailable

92150B

BOLT

92150-1730

Unavailable

92150C

BOLT,8X30

92150-1770

Unavailable

92200

WASHER,11.5X20.5X1.6

92200-1128

$5.52

92200A

WASHER,11.5X25.5X3.6

92200-1138

$5.47

120

BOLT-SOCKET,8X30

120P0830

$2.62

130

BOLT-FLANGED,6X10

130N0610

$4.78
