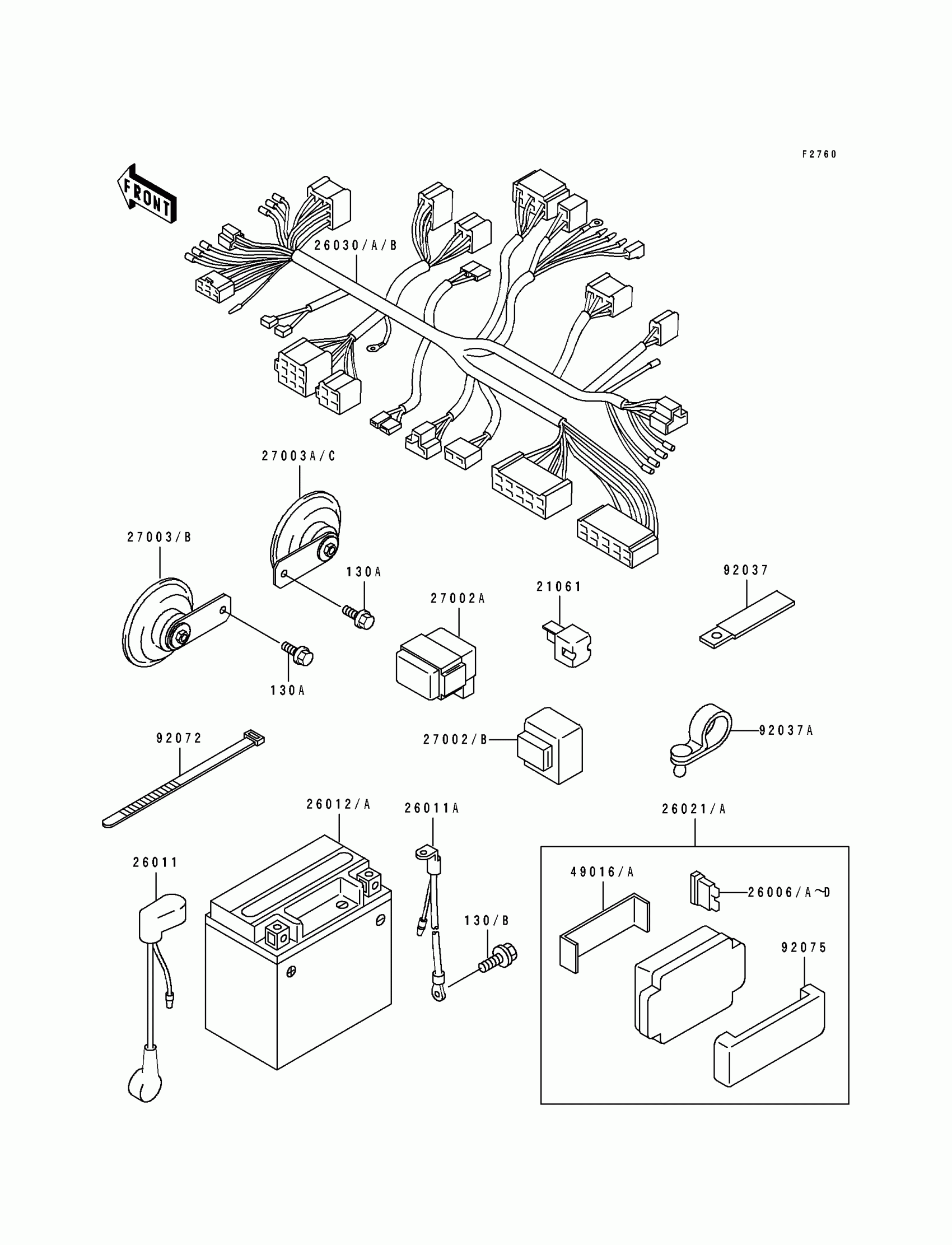

Kawasaki ZR1100 Zephyr Chassis Electrical Equipment Diagram

Description

Price

26006B

FUSE,BLADE,30A,GREEN

26006-1067

Unavailable

26006C

FUSE,10A-R

26006-1068

Unavailable

26006D

FUSE,15A-B

26006-1069

$5.46

26011

WIRE-LEAD,BATTERY(+)

26011-1531

$29.65

26011A

WIRE-LEAD,BATTERY(-)

26011-1532

$29.65

26012A

BATTERY,FTH16-BS,12V 14AH

26012-1296

Unavailable

26021A

JUNCTION BOX

26021-1099

Unavailable

26030B

HARNESS,MAIN

26030-1344

Unavailable

27002A

RELAY-ASSY,HEAD LAMP

27002-1078

$85.74

27002B

RELAY-ASSY,SIGNAL LAMP

27002-1092

$72.36

27003B

HORN,LH

27003-1370

Unavailable

27003C

HORN,RH

27003-1371

Unavailable

49016A

COVER-SEAL,FUSE

49016-1180

$13.98

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92037A

CLAMP,SPEED,L=43

92037-1290

$7.34

92072

BAND,L=202

92072-1195

$1.56

92075

DAMPER,JUNCTION BOX

92075-1688

$14.36

130A

BOLT-FLANGED,8X12

130J0812

$0.67

130B

BOLT-FLANGED,6X10

130V0610

Unavailable
