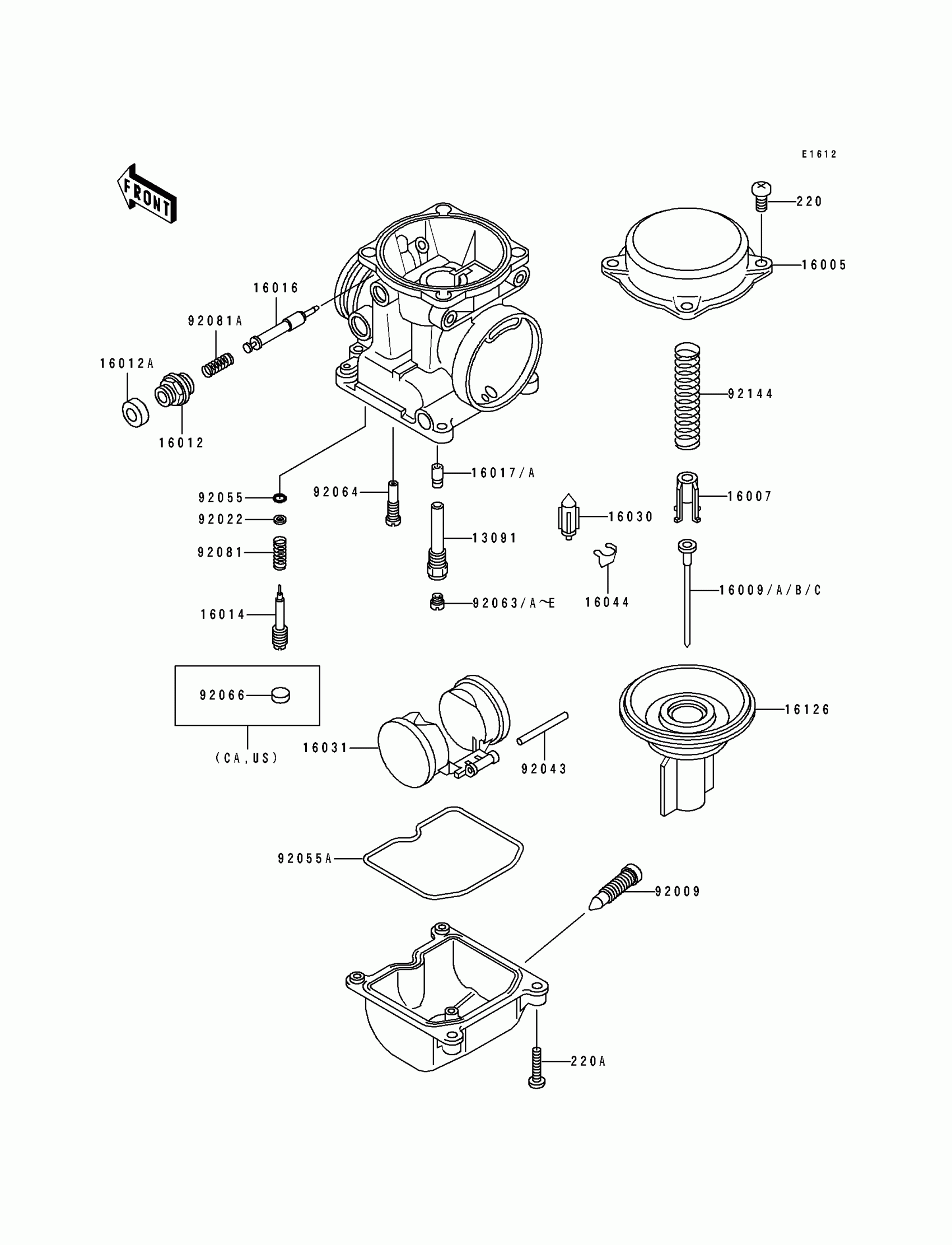

Kawasaki ZR1100 Zephyr Carburetor Parts Diagram

#

Description
Price

13091

HOLDER,NEEDLE JET

13091-1804

Unavailable

16005

TOP-CHAMBER,MIXING

16005-1065

$73.52

16007

SEAT-SPRING,VALVE

16007-1117

$20.29

16009B

NEEDLE-JET,N1VE

16009-1807

$24.76

16012

CAP-STARTER PLUNGER

16012-1051

$8.50

16012A

CAP-STARTER PLUNGER

16012-1052

$11.72

16014

SCREW-PILOT AIR

16014-1054

$23.12

16016

PLUNGER,STARTER

16016-1061

$45.45

16017A

JET-NEEDLE

16017-1362

Unavailable

16030

VALVE-FLOAT

16030-1007

$42.48

16031

FLOAT

16031-1056

$47.31

16044

CLAMP,FLOAT VALVE

16044-007

$6.04

16126

VALVE,VACUUM

16126-1163

$204.57

92009

SCREW,DRAIN,M6X0.75

92009-1551

$7.54

92022

WASHER,PLAIN

92022-1003

$3.29

92043

PIN,FLOAT

92043-1207

$10.71

92055

RING-O,PILOT ADJUST

92055-1002

$3.29

92055A

RING-O,FLOAT CHAMBER

92055-1222

$13.15

92063

JET-MAIN,#95

92063-1001

$14.59

92063A

JET-MAIN,#92

92063-1004

$11.72

92063B

JET-MAIN,#98

92063-1005

$14.59

92063C

JET-MAIN,#100

92063-1008

$14.59

92063D

JET-MAIN,#105

92063-1009

$14.90

92063E

JET-MAIN,#102

92063-1115

$14.59

92064

JET-PILOT,#35

92064-1101

$12.84

92081

SPRING,PILOT ADJUST SCREW

92081-1002

$4.14

92081A

SPRING,STARTER PLUNGER

92081-1761

$9.31

92144

SPRING,VACUUM VALVE

92144-1670

$9.05

220

SCREW PAN HEAD 4X8

220B0408

Unavailable

220A

SCREW-PAN-CROS,4X14

220D0414

$3.51
