Description

Price

13168

LEVER,STARTER

13168-1245

$123.33

13169

PLATE,CARBURETOR STAY,UPP

13169-1869

$120.09

13169B

PLATE,THROTTLE CABLE

13169-1962

Unavailable

13183

PLATE,STARTER CABLE

13183-1033

$39.20

13270

PLATE,CARBURETOR STAY,LWR

13270-1070

Unavailable

14069

BREATHER

14069-1051

$10.19

15001B

CARBURETOR-ASSY

15001-1903

$1,770.17

15010H

CARBURETOR,LH,OUTSIDE

15010-1598

$590.22

15010I

CARBURETOR,LH,INSIDE

15010-1599

$590.22

15010J

CARBURETOR,RH,INSIDE

15010-1600

$590.22

15010K

CARBURETOR,RH,OUTSIDE

15010-1601

$590.22

16021

SCREW-THROTTLE STOP

16021-1101

$121.17

92001

BOLT,THROTTLE ADJUST

92001-1998

$16.94

92005

FITTING,FUEL,T-TYPE

92005-1108

$25.80

92005A

FITTING,T-TYPE

92005-1119

$24.61

92005B

FITTING,T-TYPE

92005-1125

$25.81

92005C

FITTING

92005-1157

$33.74

92009A

SCREW

92009-1262

$6.61

92009B

SCREW,5X10

92009-1365

$7.34

92022

WASHER,6.1X11X0.8,POLYACETAL

92022-1199

$4.60

92022A

WASHER,PLAIN,STOP SPRING

92022-1480

$5.00

92037

CLAMP,FUEL TUBE

92037-1075

$3.96

92037A

CLAMP-HOSE

92037-1104

$1.45

92037B

CLAMP,TUBE

92037-1194

$6.15

92055

RING-O

92055-1004

$4.31

92055A

RING-O

92055-1223

$5.52

92059

TUBE,7.3X12.5X260

92059-1492

$37.85

92059A

TUBE,7X12X300

92059-1585

$12.96

92066

PLUG,DRAIN

92066-1211

$8.51

92072

BAND,L=202

92072-1195

$1.56

92081

SPRING,THROTTLE STOP SCREW

92081-1617

$6.11

92081A

SPRING

92081-1620

$4.96

92081B

SPRING,THROTTLE ADJUST LWR

92081-1621

$5.18

92081C

SPRING,THROTTLE ADJUST CNT

92081-1622

$10.67

92081D

SPRING,STARTER LEVER

92081-1762

$24.32

92190

TUBE,7X12X160

92190-1201

$12.96

92190A

TUBE,7X12X110

92190-1242

$12.96

92190B

TUBE,7X11X140

92190-1417

$11.23

220

SCREW-PAN-CROS,6X16

220B0616

$2.84

223

SCREW-PAN-WS-CROS,5X10

223C0510

$4.12

223A

SCREW-PAN-WS-CROS,4X10

223D0410

Unavailable

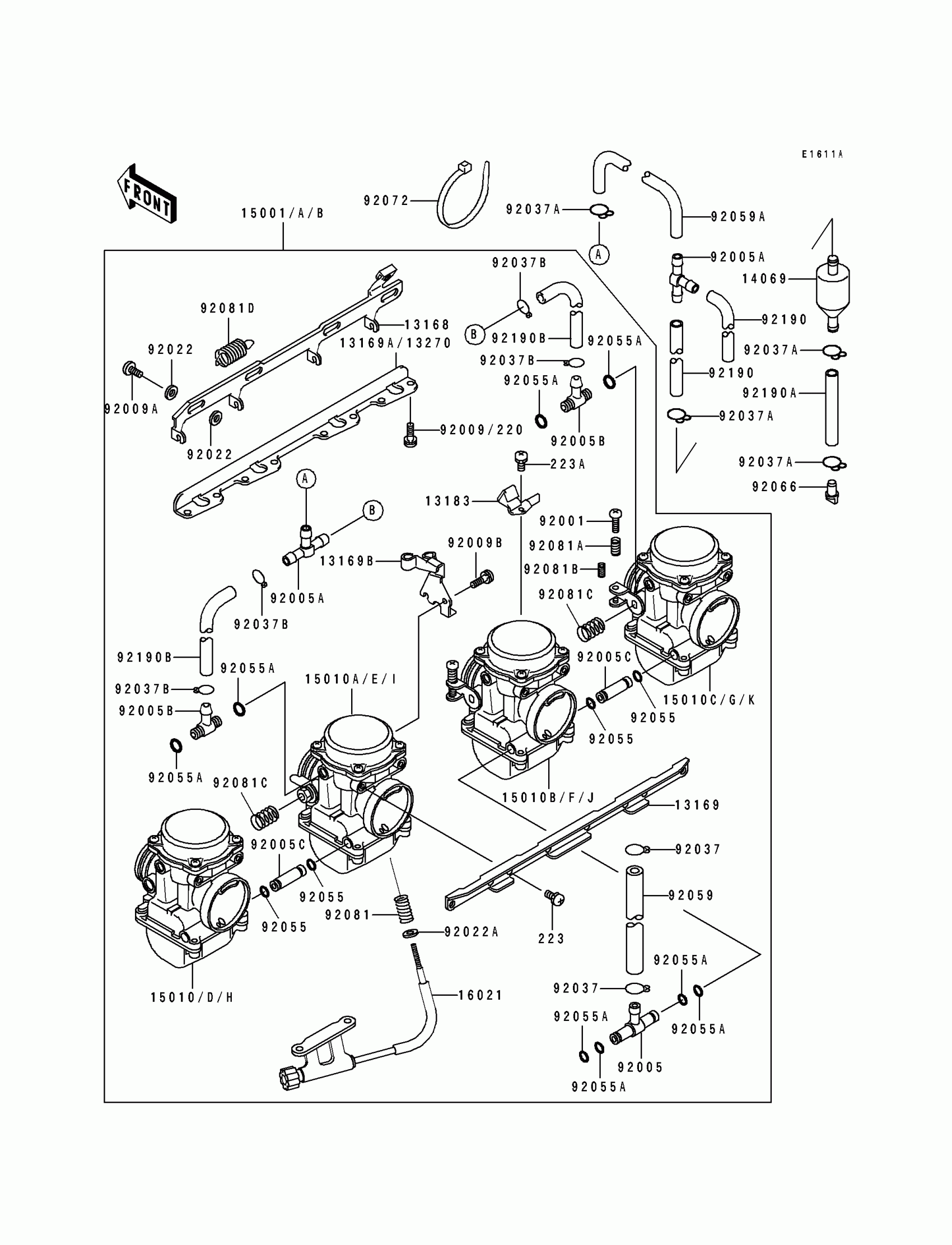

Kawasaki ZR1100 Zephyr Carburetor(026548&NAMI.) Diagram

LEVER,STARTER

PLATE,CARBURETOR STAY,UPP

PLATE,THROTTLE CABLE

PLATE,STARTER CABLE

PLATE,CARBURETOR STAY,LWR

BREATHER

CARBURETOR-ASSY

CARBURETOR,LH,OUTSIDE

CARBURETOR,LH,INSIDE

CARBURETOR,RH,INSIDE

CARBURETOR,RH,OUTSIDE

SCREW-THROTTLE STOP

BOLT,THROTTLE ADJUST

FITTING,FUEL,T-TYPE

FITTING,T-TYPE

FITTING,T-TYPE

FITTING

SCREW

SCREW,5X10

WASHER,6.1X11X0.8,POLYACETAL

WASHER,PLAIN,STOP SPRING

CLAMP,FUEL TUBE

CLAMP-HOSE

CLAMP,TUBE

RING-O

RING-O

TUBE,7.3X12.5X260

TUBE,7X12X300

PLUG,DRAIN

BAND,L=202

SPRING,THROTTLE STOP SCREW

SPRING

SPRING,THROTTLE ADJUST LWR

SPRING,THROTTLE ADJUST CNT

SPRING,STARTER LEVER

TUBE,7X12X160

TUBE,7X12X110

TUBE,7X11X140

SCREW-PAN-CROS,6X16

SCREW-PAN-WS-CROS,5X10

SCREW-PAN-WS-CROS,4X10
