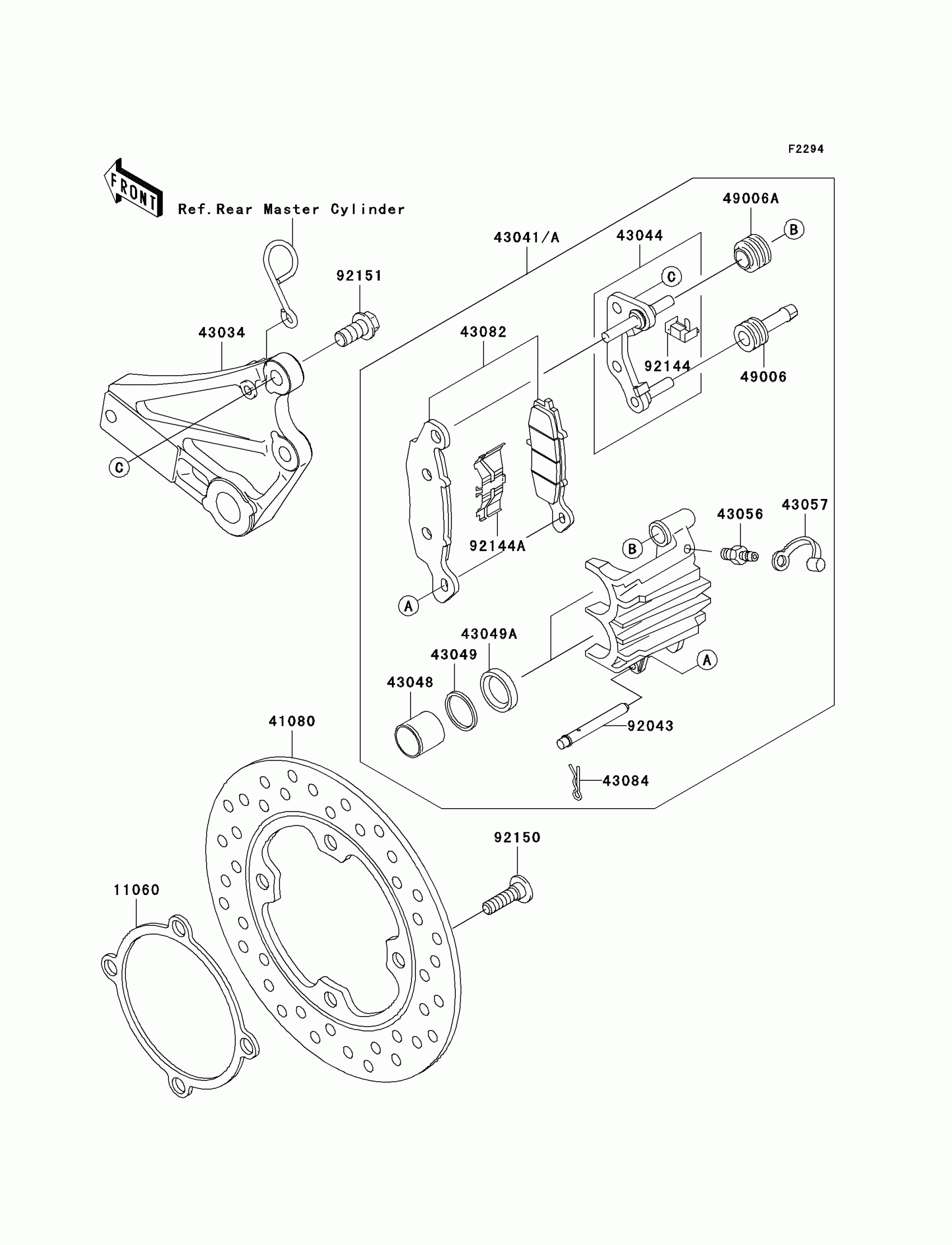

Kawasaki ZR-7S Rear Brake(H1-H3) Diagram

Description

Price

11060

GASKET,DISC PLATE

11060-1357

Unavailable

41080

DISC,RR,GOLD

41080-1466-CL

$322.01

43034

HOLDER-BRAKE,REAR CALIPER

43034-1157

$135.58

43041A

CALIPER-ASSY,RR,M.F.GRAY

43041-1876-FE

Unavailable

43044

HOLDER-COMP-CALIPER,FR,RH

43044-1116

$147.38

43048

PISTON-CALIPER

43048-1052

$59.59

43049

PACKING,PISTON

43049-1055

$8.59

43049A

PACKING,PISTON SEAL

43049-1096

$9.44

43056

BREATHER-BRAKE

43056-1054

$19.94

43057

CAP-BREATHER

43057-003

$1.74

43082

PAD-ASSY-BRAKE

43082-1235

$75.74

43084

CLAMP,PAD

43084-003

$3.29

49006

BOOT,CALIPER

49006-1054

$8.83

49006A

BOOT,CALIPER

49006-1095

$5.55

92043

PIN,PAD

92043-1489

$4.93

92144

SPRING,STOPPER

92144-1831

$4.14

92144A

SPRING,PAD,RH

92144-1844

$9.68

92150

BOLT,SOCKET,8X30

92150-1771

$3.57

92151

BOLT,FLANGED,10X20

92151-1511

$3.58
