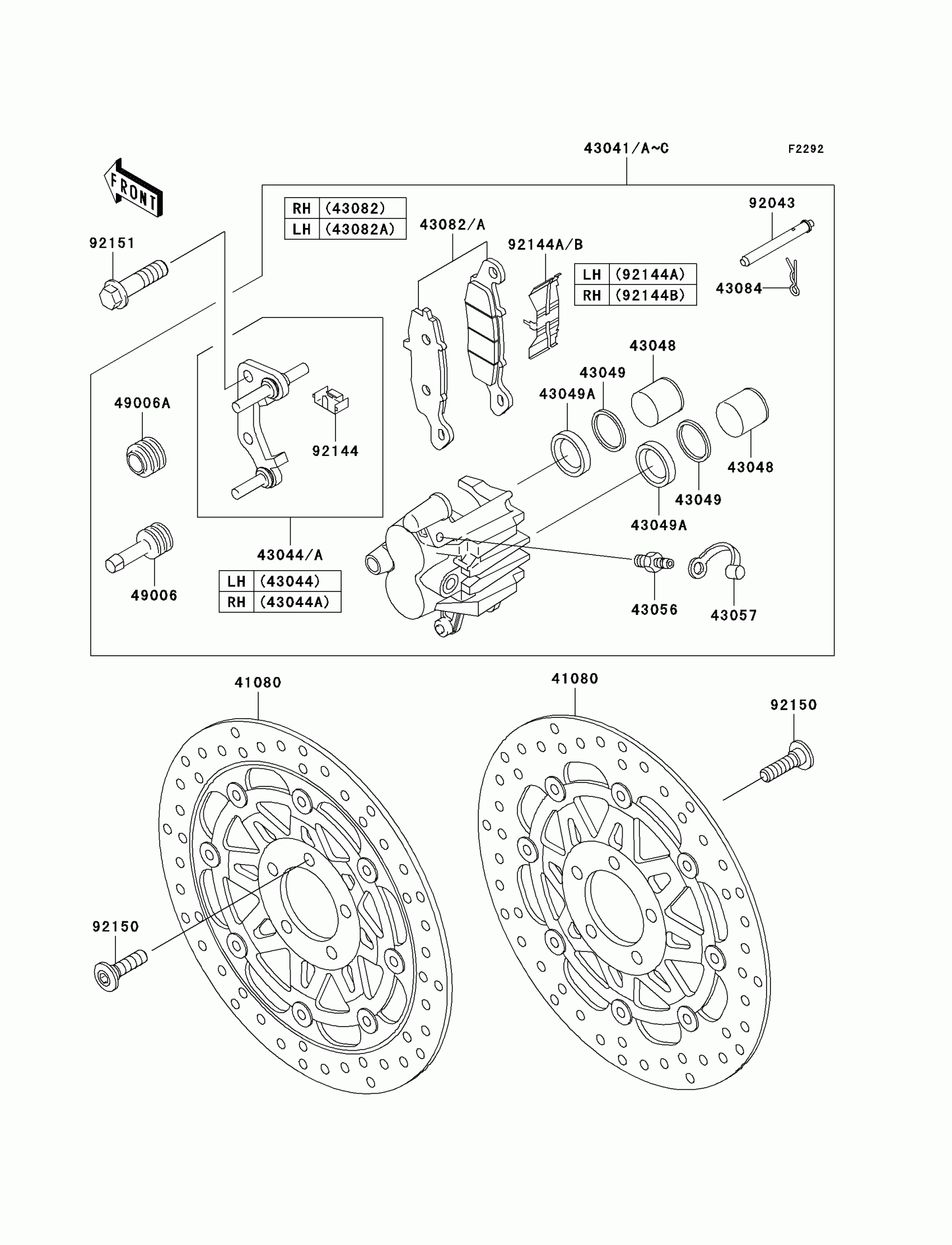

Kawasaki ZR-7S Front Brake(H1-H3) Diagram

#

Description
Price

41080

DISC,FR,GOLD+DISC-SILVER

41080-1467-5E

$459.37

43041B

CALIPER-ASSY,FR,LH,M.F.GRAY

43041-1889-FE

$433.79

43041C

CALIPER-ASSY,FR,RH,M.F.GRAY

43041-1890-FE

$433.79

43044

HOLDER-COMP-CALIPER,FR,LH

43044-1115

$151.97

43044A

HOLDER-COMP-CALIPER,FR,RH

43044-1116

$147.38

43048

PISTON-CALIPER

43048-1073

$58.51

43049

PACKING

43049-1068

$7.48

43049A

PACKING,PISTON SEAL

43049-1092

$7.91

43056

BREATHER-BRAKE

43056-1054

$19.94

43057

CAP-BREATHER

43057-003

$1.74

43082

PAD-ASSY-BRAKE

43082-1235

$75.74

43082A

PAD-ASSY-BRAKE,LH

43082-1244

$57.68

43084

CLAMP,PAD

43084-003

$3.29

49006

BOOT,CALIPER

49006-1054

$8.83

49006A

BOOT,CALIPER

49006-1095

$5.55

92043

PIN,PAD

92043-1489

$4.93

92144

SPRING,STOPPER

92144-1831

$4.14

92144A

SPRING,PAD,LH

92144-1832

$24.71

92144B

SPRING,PAD,RH

92144-1844

$9.68

92150

BOLT,SOCKET,8X30

92150-1771

$3.57

92151

BOLT,FLANGED,10X38

92151-1288

$4.24
