Description

Price

41080

DISC,FR,GOLD+DISC-SILVER

41080-1467-5E

$449.85

43041B

CALIPER-ASSY,FR,LH,M.F.GRAY

43041-1889-FE

$424.82

43041C

CALIPER-ASSY,FR,RH,M.F.GRAY

43041-1890-FE

$424.82

43044

HOLDER-COMP-CALIPER,FR,LH

43044-1115

$148.83

43044A

HOLDER-COMP-CALIPER,FR,RH

43044-1116

$144.35

43048

PISTON-CALIPER

43048-1073

$65.22

43049

PACKING

43049-1068

$9.82

43049A

PACKING,PISTON SEAL

43049-1092

$10.39

43056

BREATHER-BRAKE

43056-1054

$24.57

43057

CAP-BREATHER

43057-003

$2.45

43082

PAD-ASSY-BRAKE

43082-1235

$74.32

43082A

PAD-ASSY-BRAKE,LH

43082-1244

$56.57

43084

CLAMP,PAD

43084-003

$4.31

49006

BOOT,CALIPER

49006-1054

$11.61

49006A

BOOT,CALIPER

49006-1095

$7.27

92043

PIN,PAD

92043-1489

$6.57

92144

SPRING,STOPPER

92144-1831

$5.46

92144A

SPRING,PAD,LH

92144-1832

$26.35

92144B

SPRING,PAD,RH

92144-1844

$10.00

92150

BOLT,SOCKET,8X30

92150-1771

$4.69

92151

BOLT,FLANGED,10X38

92151-1288

$4.76

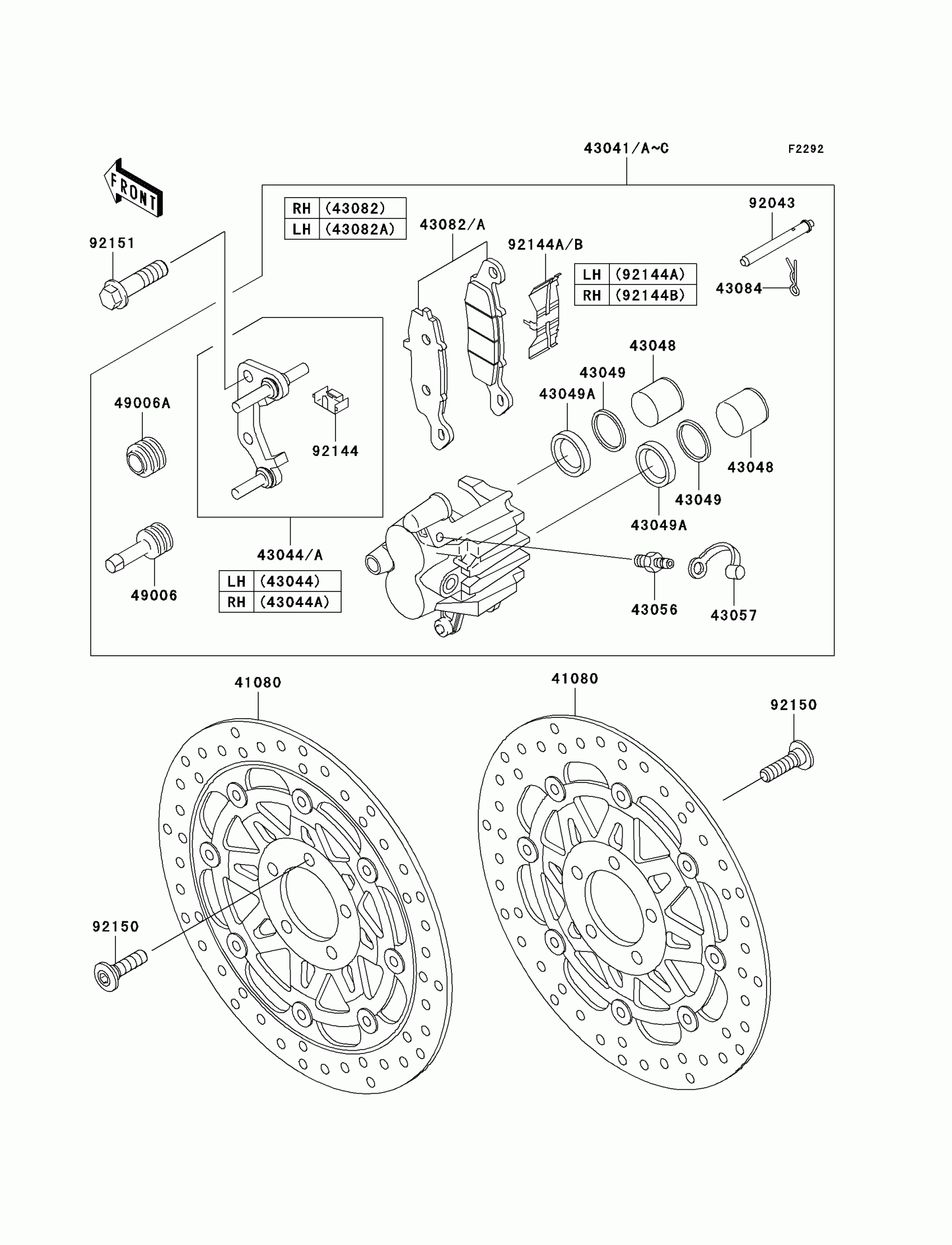

Kawasaki ZR-7S Front Brake(H1-H3) Diagram

DISC,FR,GOLD+DISC-SILVER

CALIPER-ASSY,FR,LH,M.F.GRAY

CALIPER-ASSY,FR,RH,M.F.GRAY

HOLDER-COMP-CALIPER,FR,LH

HOLDER-COMP-CALIPER,FR,RH

PISTON-CALIPER

PACKING

PACKING,PISTON SEAL

BREATHER-BRAKE

CAP-BREATHER

PAD-ASSY-BRAKE

PAD-ASSY-BRAKE,LH

CLAMP,PAD

BOOT,CALIPER

BOOT,CALIPER

PIN,PAD

SPRING,STOPPER

SPRING,PAD,LH

SPRING,PAD,RH

BOLT,SOCKET,8X30

BOLT,FLANGED,10X38
