2005 Kawasaki ZR-7S (Canada Only) Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 2005 Kawasaki ZR-7S (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

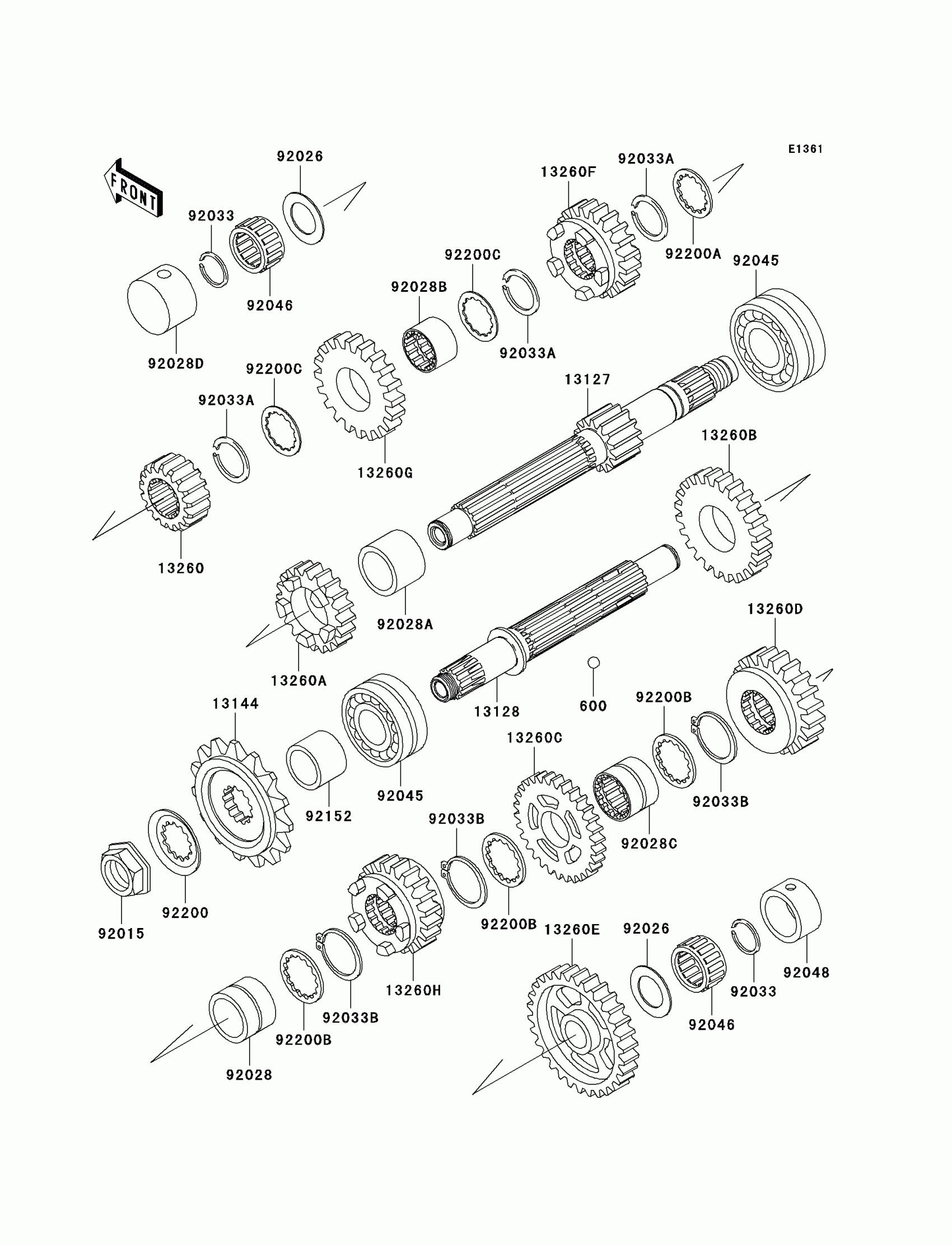

2005 Kawasaki ZR-7S (Canada Only) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

600

BALL-STEEL,5/32

600A0500

1
Out of stock

13127

SHAFT-TRANSMISSION INPUT,15T

13127-1272

1
Out of stock

13128

SHAFT-TRANSMISSION OUTPUT

13128-1243

1
Out of stock

13144

SPROCKET-OUTPUT,16T

13144-1256

1
Out of stock

13260

GEAR,INPUT 2ND,19T

13260-1793

1
Out of stock

13260A

GEAR,INPUT 4TH,25T

13260-1795

1
Out of stock

13260B

GEAR,OUTPUT 2ND,31T

13260-1796

1
Out of stock

13260C

GEAR,OUTPUT 3RD,28T

13260-1797

1
Out of stock

13260D

GEAR,OUTPUT 4TH,26T

13260-1798

1
Out of stock

13260E

GEAR,OUTPUT LOW,35T

13260-1845

1
Out of stock

13260F

GEAR,INPUT 3RD,22T

13260-1847

1
Out of stock

13260G

GEAR,INPUT TOP,24T

13260-1848

1
Out of stock

13260H

GEAR,OUTPUT TOP 21T

13260-1865

1
Out of stock

92015

NUT,20MM

92015-1963

1
Out of stock

92026

SPACER,20.5X33X1.0

92026-1528

1
Out of stock

92028

BUSHING,OUTPUT,2ND

92028-1739

1
Out of stock

92028A

BUSHING,INPUT 4TH GEAR

92028-1914

1
Out of stock

92028B

BUSHING,INPUT TOP GEAR

92028-1915

1
Out of stock

92028C

BUSHING,OUTPUT 3RD GEAR

92028-1916

1
Out of stock

92028D

BUSHING,INPUT SHAFT

92028-1952

1
Out of stock

92033

RING-SNAP,20MM

92033-015

1
Out of stock

92033A

RING-SNAP,24MM

92033-026

1
Out of stock

92033B

RING-SNAP,T=1.5

92033-1249

1
Out of stock

92045

BEARING-BALL,83993SH2-CS

92045-035

1
Out of stock

92046

BEARING-NEEDLE

92046-1274

1
Out of stock

92048

RACE

92048-1105

1
Out of stock

92152

COLLAR,25X32X40

92152-1156

1
Out of stock

92200

WASHER

92200-1065

1
Out of stock

92200A

WASHER,25.2X31.0X1.5

92200-1239

1
Out of stock

92200B

WASHER,28.5X34.0X1.5

92200-1240

1
Out of stock

92200C

WASHER,25.2X31.8X1.0

92200-1298

1
Out of stock
