2005 Kawasaki ZR-7S (Canada Only) Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 2005 Kawasaki ZR-7S (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

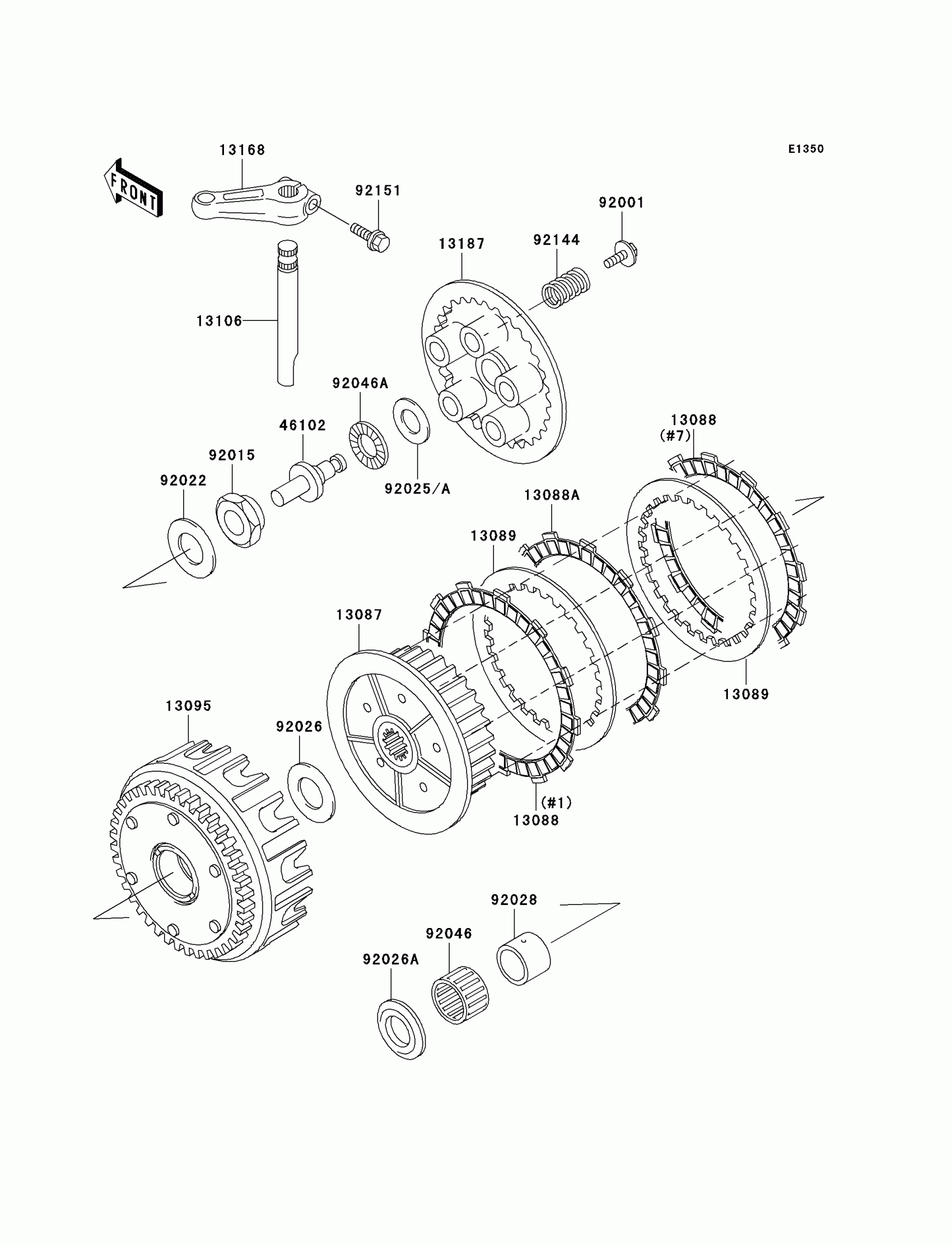

2005 Kawasaki ZR-7S (Canada Only) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13087

HUB-CLUTCH

13087-043

1
Out of stock

13088

PLATE-FRICTION

13088-1052

1
Out of stock

13088A

PLATE-FRICTION

13088-1107

1
Out of stock

13089

PLATE-CLUTCH

13089-1097

1
Out of stock

13095

HOUSING-COMP-CLUTCH

13095-1389

1
Out of stock

13106

SHAFT-CLUTCH RELEASE

13106-1124

1
Out of stock

13168

LEVER,CLUTCH RELEASE

13168-1547

1
Out of stock

13187

PLATE-CLUTCH OPERATING

13187-1014

1
Out of stock

46102

ROD,CLUTCH

46102-1313

1
Out of stock

92001

BOLT,FLANGED,6X18

92001-1066

1
Out of stock

92015

NUT,20MM

92015-1555

1
Out of stock

92022

WASHER,20.3X36X2.3

92022-1116

1
Out of stock

92025

SHIM,15.3X27.5X0.90

92025-1136

1
Out of stock

92025A

SHIM,15.3X27.5X1.20

92025-1137

1
Out of stock

92026

SPACER,25.5X47X2.5

92026-022

1
Out of stock

92026A

SPACER,THRUST,T=5.5

92026-116

1
Out of stock

92028

BUSHING,25X32X23.6

92028-178

1
Out of stock

92046

BEARING-NEEDLE,KTV323723

92046-028

1
Out of stock

92046A

BEARING-NEEDLE,AXK1102

92046-1052

1
Out of stock

92144

SPRING,CLUTCH

92144-1889

1
Out of stock

92151

BOLT,FLANGED-SMALL,6X20

92151-1252

1
Out of stock
