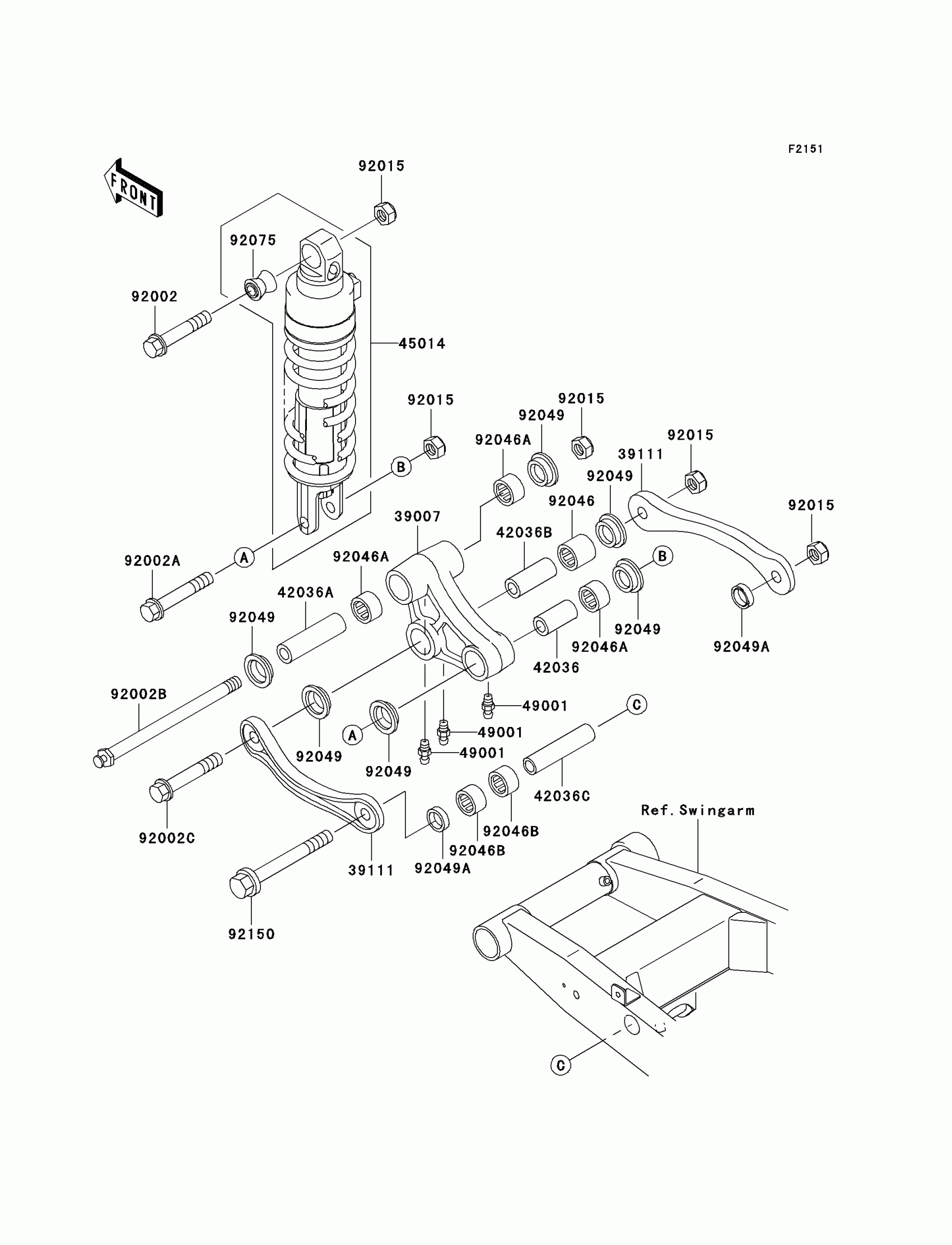

Kawasaki ZR-7S (Canada Only) Suspension/Shock Absorber Diagram

Description

Price

39007

ARM-SUSP,UNI TRAK

39007-1281

$263.18

39111

ROD-TIE,SUSPENSION

39111-1142

$92.35

42036

SLEEVE,12.1X20X32

42036-1077

$16.69

42036A

SLEEVE,12.1X20X70

42036-1079

$28.64

42036B

SLEEVE,12.1X20X50

42036-1111

$21.99

42036C

SLEEVE,12.1X18X82

42036-1231

$25.83

45014

SHOCKABSORBER,F.RED

45014-1722-CD

$1,136.79

49001

NIPPLE-GREASE

49001-0001

$3.02

92002

BOLT,12X48

92002-1052

$10.76

92002A

BOLT,FLANGED,12X60

92002-1464

$12.76

92002B

BOLT,SUSPENSION ARM,12MM

92002-1784

Unavailable

92002C

BOLT,SUSPENSION ARM,12MM

92002-1785

$15.39

92015

NUT,LOCK,12MM,BLACK

92015-1190

$7.34

92046

BEARING-NEEDLE,BM202726

92046-1110

$23.45

92046A

BEARING-NEEDLE,BM202715

92046-1112

$20.89

92046B

BEARING-NEEDLE,18BM2416

92046-1144

$29.26

92049

SEAL-OIL,ARM

92049-1109

$9.28

92049A

SEAL-OIL,KCR MF018N1

92049-1493

$9.19

92075

DAMPER,SHOCKABSORBER

92075-1654

$35.38

92150

BOLT,FLANGED,12X110

92150-1088

$14.27
