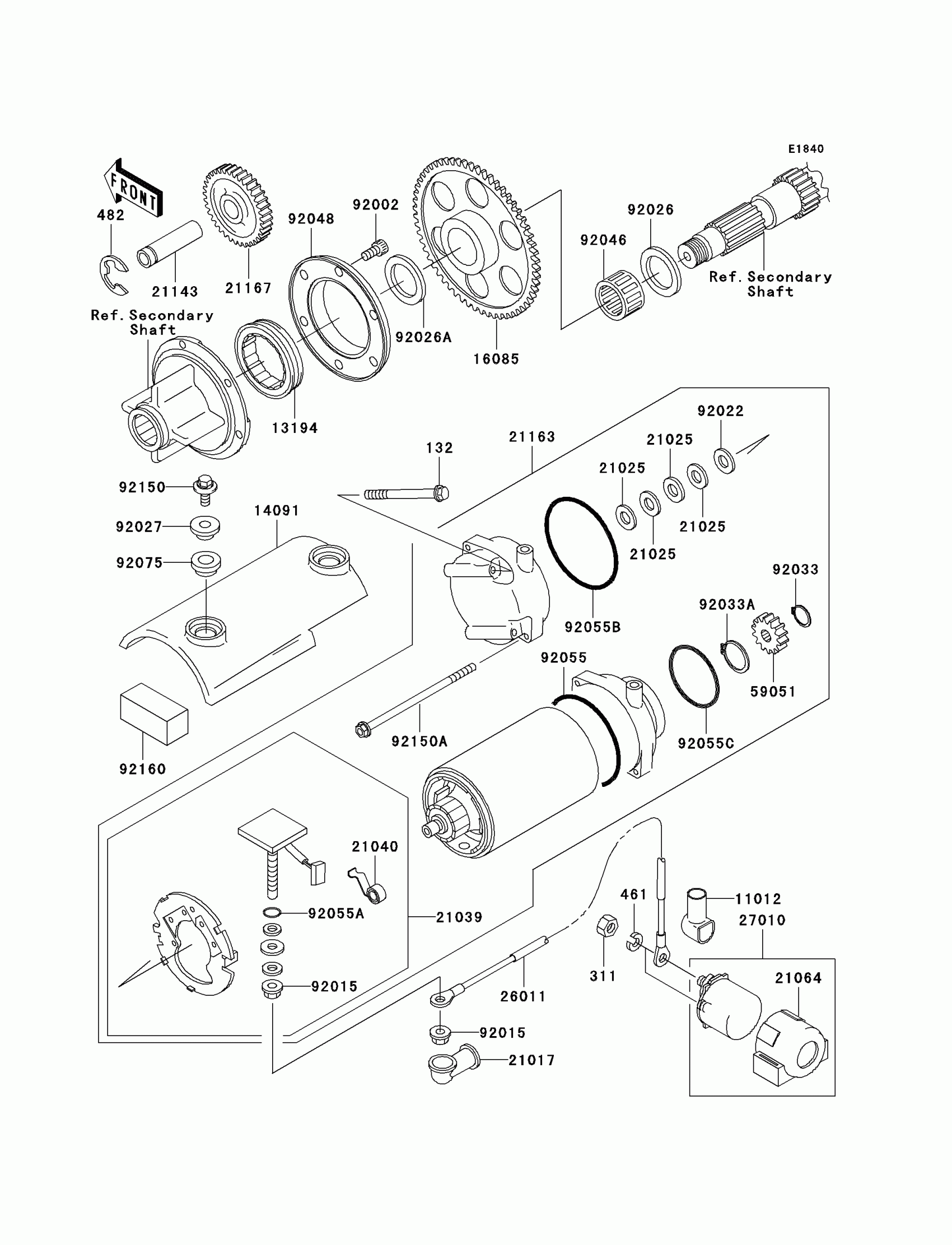

Kawasaki ZR-7S (Canada Only) Starter Motor Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X60

132G0660

$3.84

311

NUT 6MM

311B0600

$0.93

461

WASHER SPRING 6MM

461F0600

$0.69

482

CIRCLIP-TYPE-E,12MM

482J0200

$3.92

11012

CAP,TERMINAL

11012-1354

$10.19

13194

CLUTCH-ONEWAY

13194-1086

$106.12

14091

COVER,STERTERMOTOR

14091-1104

$77.67

16085

GEAR,STARTER,58T

16085-1300

$124.91

21017

GROMMET,STARTER TERMINAL

21017-017

$9.43

21025

WASHER,9.1X18X0.2

21025-011

$6.22

21039

BRUSH,CARBON

21039-1062

$84.32

21040

SPRING-BRUSH

21040-1057

$8.42

21064

DAMPER,MAGNETIC SWITCH

21064-002

Unavailable

21143

SHAFT,IDLE GEAR

21143-003

$14.64

21163

STARTER-ELECTRIC

21163-1222

$597.05

21167

GEAR-SPUR,IDLE,29T

21167-004

$101.58

26011

WIRE-LEAD

26011-1809

$79.19

27010

SWITCH,MAGNETIC

27010-1410

Unavailable

59051

GEAR-SPUR,STARTER

59051-1401

$93.28

92002

BOLT,SOCKET,6X12

92002-1796

$4.69

92015

NUT,STARTER MOTOR

92015-1476

$4.31

92022

WASHER,9.1X18X0.8

92022-1132

$6.22

92026

SPACER,25X36X3.2

92026-1025

$6.16

92026A

SPACER,25.3X36X2.0

92026-1533

$13.08

92027

COLLAR,L=7.4

92027-1848

$4.69

92033

RING-SNAP,13MM

92033-037

$9.80

92033A

RING-SNAP,17MM

92033-1326

$10.44

92046

BEARING-NEEDLE,K253017

92046-056

$23.42

92048

RACE,ONEWAY CLUTCH

92048-1068

$64.06

92055

RING-O,64MM

92055-1086

$10.00

92055A

RING-O,4.5X2.0

92055-1370

$4.69

92055B

RING-O,STARTER MOTOR

92055-1381

$9.91

92055C

RING-O,40MM

92055-1669

$12.48

92075

DAMPER

92075-1244

$4.78

92150

BOLT,FLANGED,6X16

92150-1506

$5.00

92150A

BOLT,FLANGED,6X120

92150-1729

$8.98

92160

DAMPER

92160-1272

$5.29
