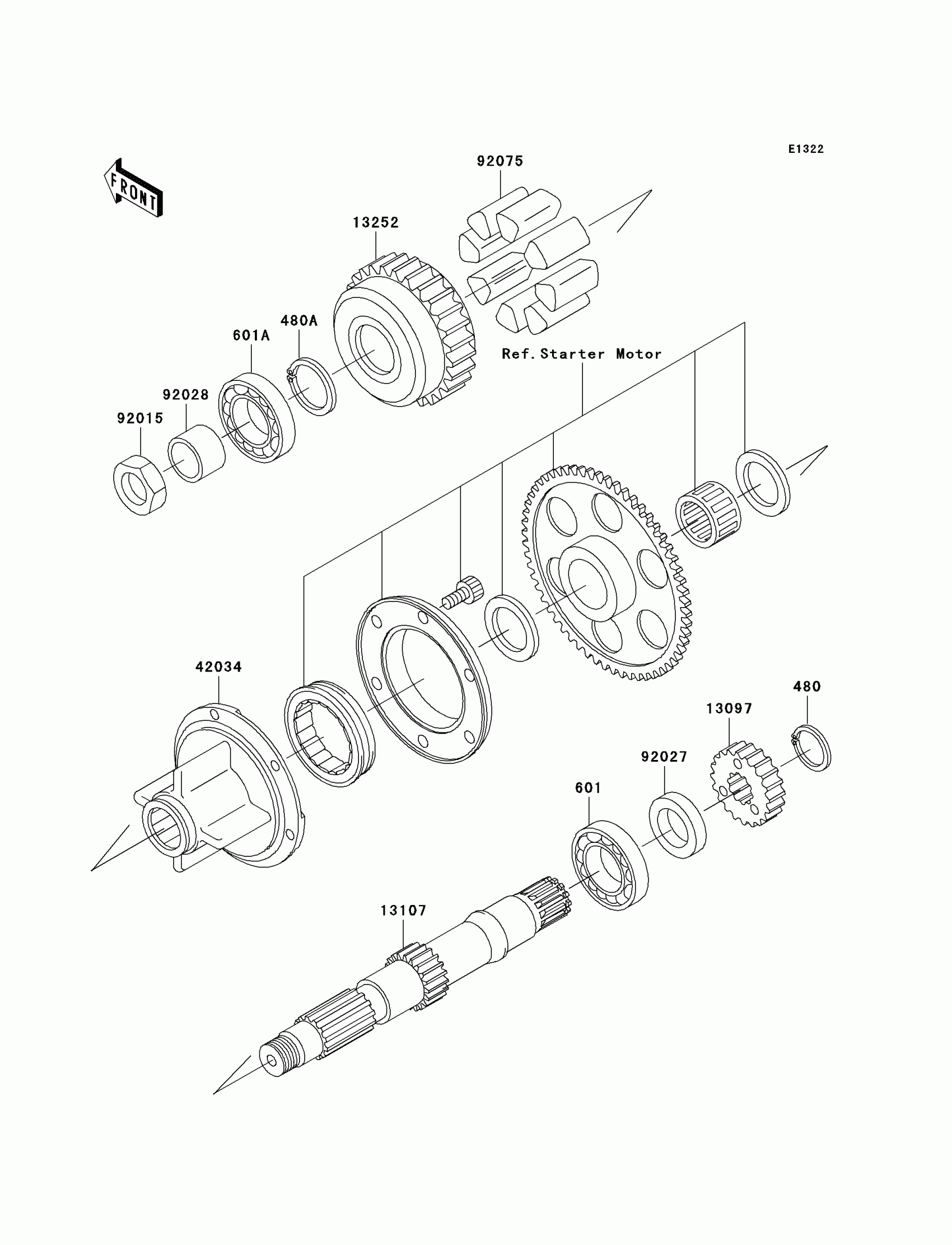

Kawasaki ZR-7S (Canada Only) Secondary Shaft Diagram

Description

Price

480

CIRCLIP-TYPE-C,22MM

480J2200

$5.00

480A

CIRCLIP-TYPE-C,28MM

480J2800

$4.70

601

BEARING-BALL,#6305

601A6305

$18.63

601A

BEARING-BALL,#6205C3

601B6205

$19.57

13097

GEAR,SECONDARY SHAFT,29T

13097-1345

$128.82

13107

SHAFT,SECONDARY

13107-1426

$317.64

13252

COUPLING,OUTER,SECONDARY SHAFT

13252-001

$276.49

42034

COUPLING

42034-1151

$291.97

92015

NUT,18MM

92015-019

$7.22

92027

COLLAR,23X46X4.5

92027-263

$6.15

92028

BUSHING,20X25X16.6

92028-1037

$31.84

92075

DAMPER

92075-1227

$7.62
