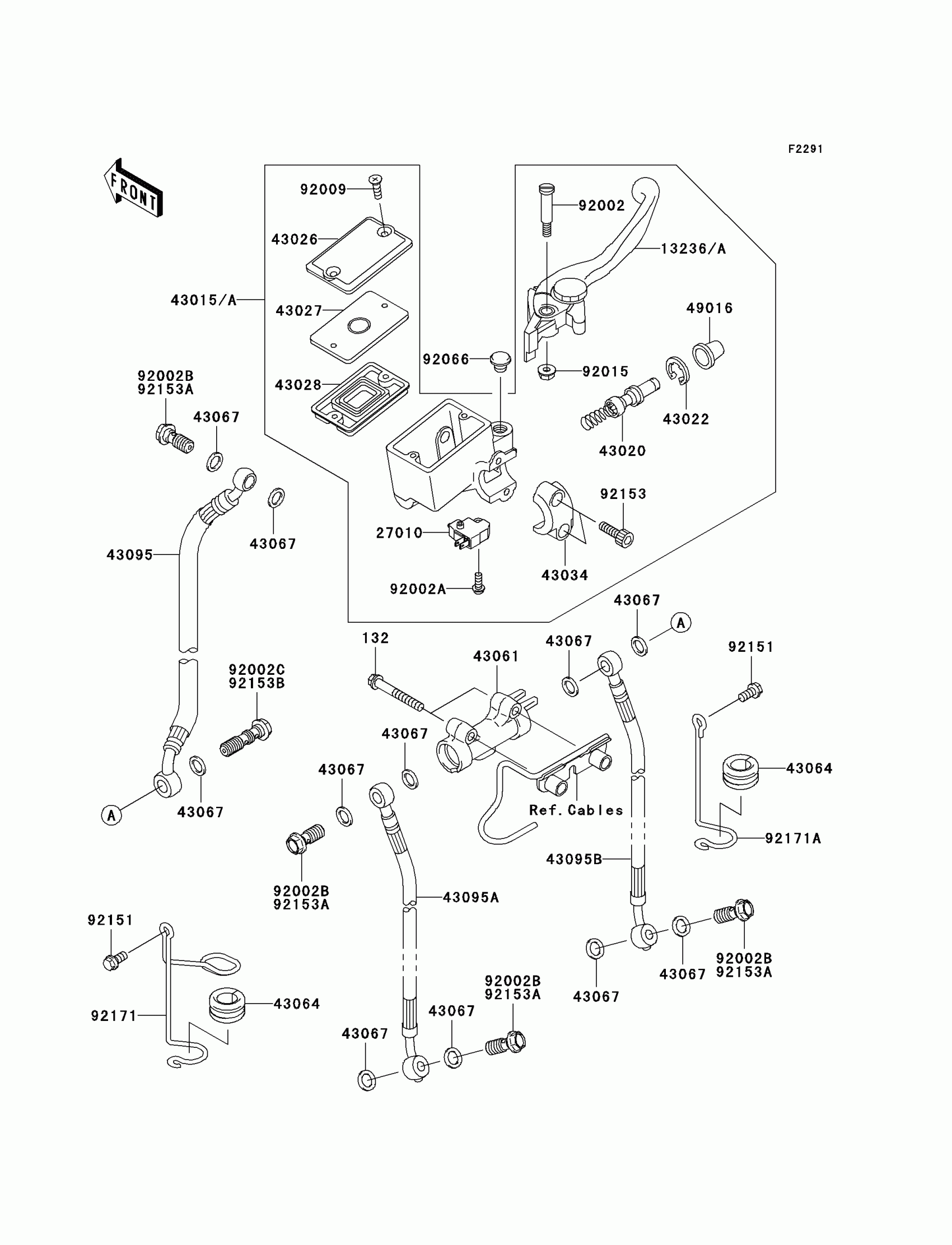

Kawasaki ZR-7S (Canada Only) Front Master Cylinder Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL

132J0645

$4.44

13236A

LEVER-COMP,FRONT BRAKE

13236-1337

$64.34

27010

SWITCH,BRAKE

27010-0025

$35.04

43015

CYLINDER-ASSY-MASTER,FR

43015-0011

$454.17

43020

PISTON-COMP-BRAKE,FR

43020-1054

$65.22

43022

STOPPER-BRAKE,PISTON

43022-1010

$4.65

43026

CAP-BRAKE

43026-1076

$42.62

43027

PLATE-DIAPHRAGM

43027-1055

$7.81

43028

DIAPHRAGM,MASTER CYLINDER

43028-1058

$22.90

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1053

$35.87

43061

JOINT-BRAKE

43061-1002

$72.14

43064

GROMMET,HOSE CLAMP

43064-007

$5.52

43067

WASHER,10.5X15X1.5

43067-001

$2.15

43095

HOSE-BRAKE,FR,UPP

43095-1149

$93.34

43095A

HOSE-BRAKE,FR,LWR,LH

43095-1150

$93.34

43095B

HOSE-BRAKE,FR,LWR,RH

43095-1151

$93.34

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$8.68

92002

BOLT,LEVER SET,BLACK

92002-1322

$11.71

92002A

BOLT,SCREW,4X12

92002-1323

$3.92

92009

SCREW,4MM

92009-1458

$3.21

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92066

PLUG,9.5X8,POLYETHYLENE

92066-1077

$4.65

92151

BOLT,6X12

92151-1133

Unavailable

92153

BOLT,SOCKET,6X20

92153-0417

$7.65

92153A

BOLT,OIL,L=23

92153-0627

$5.48

92153B

BOLT,OIL,L=37

92153-0628

$11.83

92171

CLAMP,LH,HOSE&CABLE

92171-1221

$21.65

92171A

CLAMP,RH,HOSE

92171-1222

$18.81
