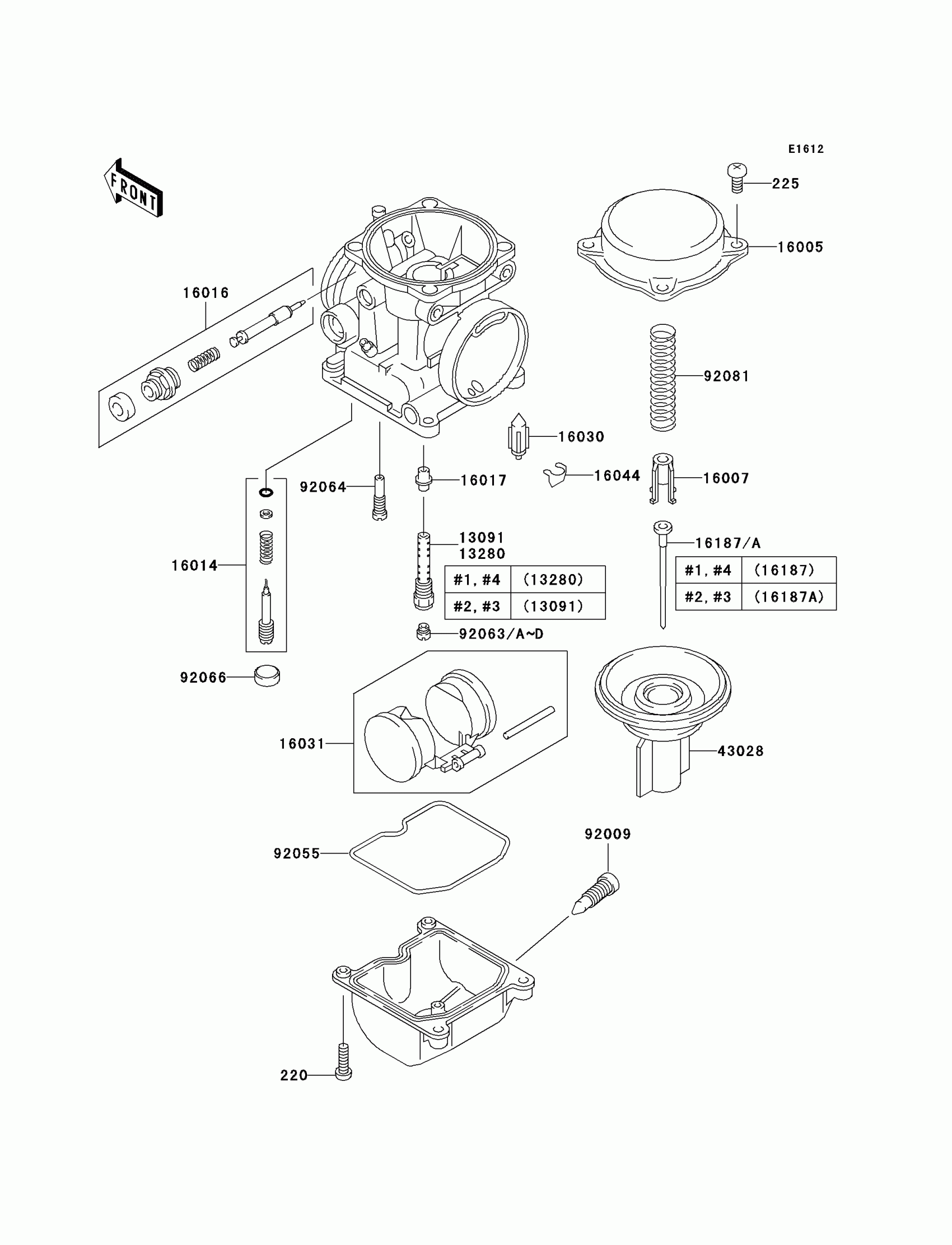

Kawasaki ZR-7S (Canada Only) Carburetor Parts Diagram

Description

Price

220

SCREW-PAN-CROS,4X14

220D0414

$4.60

225

SCREW-PAN-WSP-CROS,4X18

225C0418

$4.01

13091

HOLDER,NEEDLE JET,0.6X18

13091-1925

$30.79

13280

HOLDER,NEEDLE JET,0.7X14

13280-1176

$34.95

16005

TOP-CHAMBER,MIXING

16005-1056

$68.90

16007

SEAT-SPRING,THROTTLE VALVE

16007-1120

$26.23

16014

SCREW-PILOT AIR

16014-1092

$19.15

16016

PLUNGER,STARTER

16016-1090

$66.52

16017

JET-NEEDLE,#6

16017-1409

$51.06

16030

VALVE-FLOAT

16030-1057

$47.13

16031

FLOAT

16031-1077

$53.59

16044

CLAMP,FLOAT VALVE

16044-007

$7.91

16187

NEEDLE-JET,N6NC

16187-1117

$38.74

16187A

NEEDLE-JET,N4MD

16187-1118

$38.74

43028

DIAPHRAGM,VALVE

43028-1080

$200.34

92009

SCREW,DRAIN,M6X0.75

92009-1551

$9.91

92055

RING-O,FLOAT CHAMBER

92055-1222

$17.44

92063

JET-MAIN,#110

92063-1007

Unavailable

92063A

JET-MAIN,#105

92063-1009

Unavailable

92063B

JET-MAIN,#102

92063-1090

Unavailable

92063C

JET-MAIN,#108

92063-1116

$14.79

92063D

JET-MAIN,#112

92063-1117

Unavailable

92064

JET-PILOT,#35

92064-1035

$19.04

92066

PLUG,PILOT AIR SCREW,6.9X2

92066-1051

$5.05

92081

SPRING,VACUUM VALVE

92081-1925

$24.61
