Description

Price

236

SCREW-PAN-WSP-CROS

236B0540

$4.09

411

WASHER-PLAIN,5MM,BLACK

411F0500

$0.83

702

TUBE-RUBBER,7X10X45

702A0745

$7.27

11010

FILTER-ASSY-AIR,RR

11010-1692

$245.59

11010A

FILTER-ASSY-AIR,FR

11010-1705

$213.11

11013

ELEMENT-AIR FILTER

11013-1157

$48.14

14069

BREATHER

14069-1051

$10.19

14073

DUCT,CARBURETOR

14073-1211

$36.68

16126

VALVE,AIR SWITCH

16126-1005

$191.61

39161

SILENCER-ASSY-INTAKE

39161-1078

$72.29

49006

BOOT,BREATHER

49006-1267

$8.72

92009

SCREW,TAPPING,5X20

92009-1399

$2.80

92037

CLAMP,TUBE

92037-1076

$7.22

92037A

CLAMP,HOSE CLIP

92037-1460

$10.81

92037B

CLAMP,TUBE

92037-147

$7.34

92037C

CLAMP

92037-1712

$5.00

92037D

CLAMP,TUBE

92037-1972

$4.31

92037E

CLAMP,TUBE

92037-213

$4.31

92055

RING-O,91X6

92055-1137

$9.57

92055A

RING-O,AIR FILTER CAP

92055-1457

$9.57

92066

PLUG,DRAIN

92066-1211

$8.51

92071

GROMMET,AIR FILTER

92071-1028

$7.27

92144

SPRING,AIR FILTER DUCT

92144-1771

$12.95

92160

DAMPER

92160-1183

$3.57

92161

DAMPER

92161-1082

Unavailable

92191

TUBE,AIR SWITCH

92191-1408

$10.51

92191A

TUBE,BREATHER

92191-1431

$12.50

92191B

TUBE,AIR FILTER

92191-1432

$15.24

92191C

TUBE,SWITCH-CLEANER

92191-1444

$16.78

92191D

TUBE,3 WAY-CARBURETOR

92191-1445

$14.14

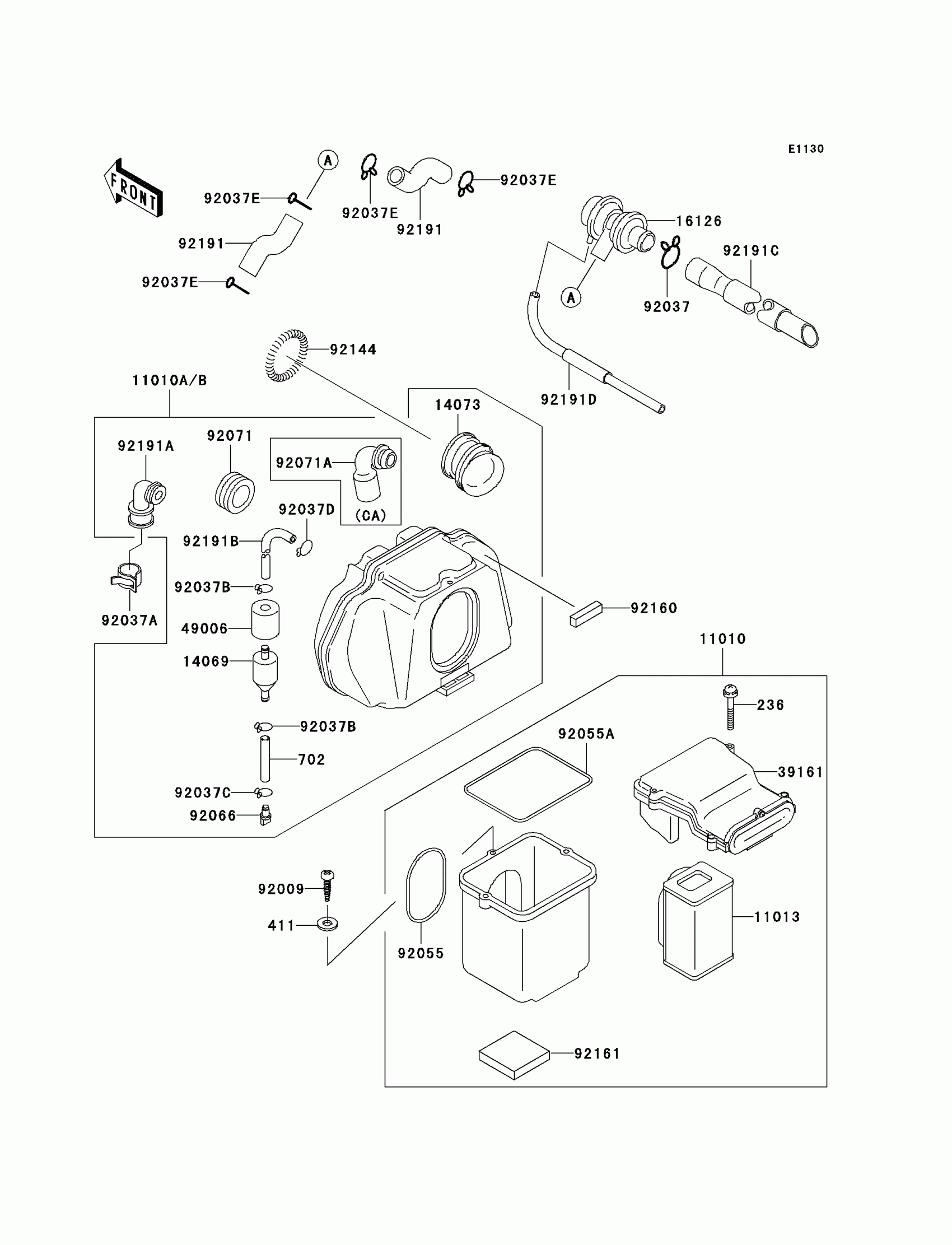

Kawasaki ZR-7S (Canada Only) Air Cleaner Diagram

SCREW-PAN-WSP-CROS

WASHER-PLAIN,5MM,BLACK

TUBE-RUBBER,7X10X45

FILTER-ASSY-AIR,RR

FILTER-ASSY-AIR,FR

ELEMENT-AIR FILTER

BREATHER

DUCT,CARBURETOR

VALVE,AIR SWITCH

SILENCER-ASSY-INTAKE

BOOT,BREATHER

SCREW,TAPPING,5X20

CLAMP,TUBE

CLAMP,HOSE CLIP

CLAMP,TUBE

CLAMP

CLAMP,TUBE

CLAMP,TUBE

RING-O,91X6

RING-O,AIR FILTER CAP

PLUG,DRAIN

GROMMET,AIR FILTER

SPRING,AIR FILTER DUCT

DAMPER

DAMPER

TUBE,AIR SWITCH

TUBE,BREATHER

TUBE,AIR FILTER

TUBE,SWITCH-CLEANER

TUBE,3 WAY-CARBURETOR
