2000 Kawasaki ZR-7 Swingarm Diagram

← All diagrams

Find the part on the Swingarm diagram for your 2000 Kawasaki ZR-7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

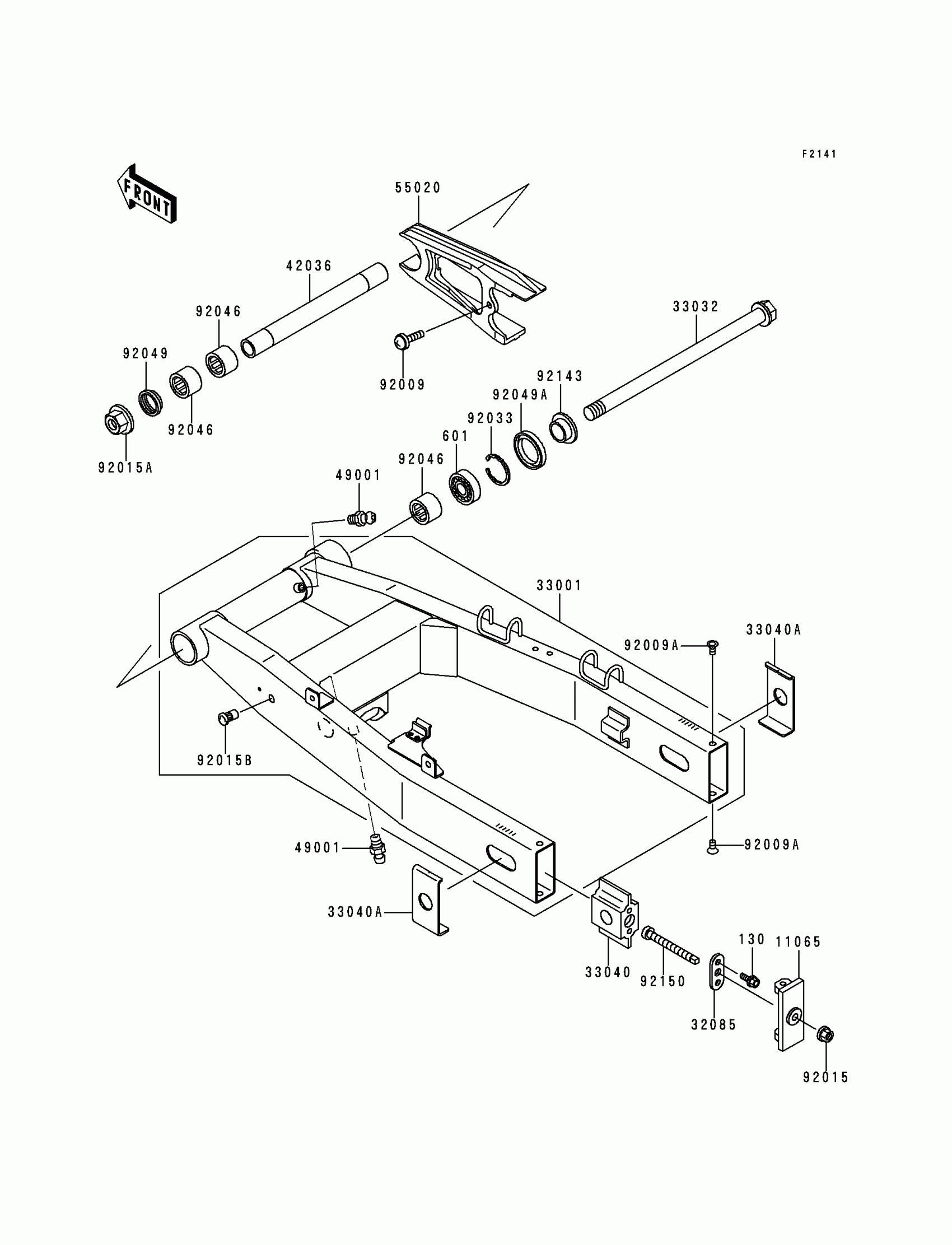

2000 Kawasaki ZR-7 Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

1

$1.53

In stock

601

1

$9.42

In stock

11065

1

$38.44

In stock

32085

1

$4.87

In stock

33001

ARM-COMP-SWING,SILVER

33001-1569-CE

1
Out of stock

33032

SHAFT-SWING ARM

33032-1142

1

$107.05

In stock

33040

1

$50.78

In stock

33040A

ADJUSTER-CHAIN,OUTER,RH

33040-1143

1
Out of stock

42036

1

$75.03

In stock

49001

NIPPLE-GREASE

49001-1051

1

$2.44

In stock

55020

GUARD,CHAIN

55020-1690

1

$49.65

In stock

92009

SCREW

92009-1664

1
Out of stock

92009A

SCREW,6X12

92009-1894

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1406

1

$3.53

In stock

92015A

NUT,FLANGED,20MM

92015-1724

1

$14.14

In stock

92015B

NUT,POP,6MM,L=15

92015-1791

1

$3.72

In stock

92033

RING-SNAP,42MM

92033-1041

1

$4.88

In stock

92046

BEARING-NEEDLE,BM2817

92046-1111

1
Out of stock

92049

SEAL-OIL,28X34X5.7

92049-1181

1
Out of stock

92049A

SEAL-OIL,TC28426.5

92049-1185

1
Out of stock

92143

1

$18.34

In stock

92150

BOLT,CHAIN ADJUSTER

92150-1285

1

$7.18

In stock
