2000 Kawasaki ZR-7 Suspension/shock Absorber Diagram

← All diagrams

Find the part on the Suspension/shock Absorber diagram for your 2000 Kawasaki ZR-7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

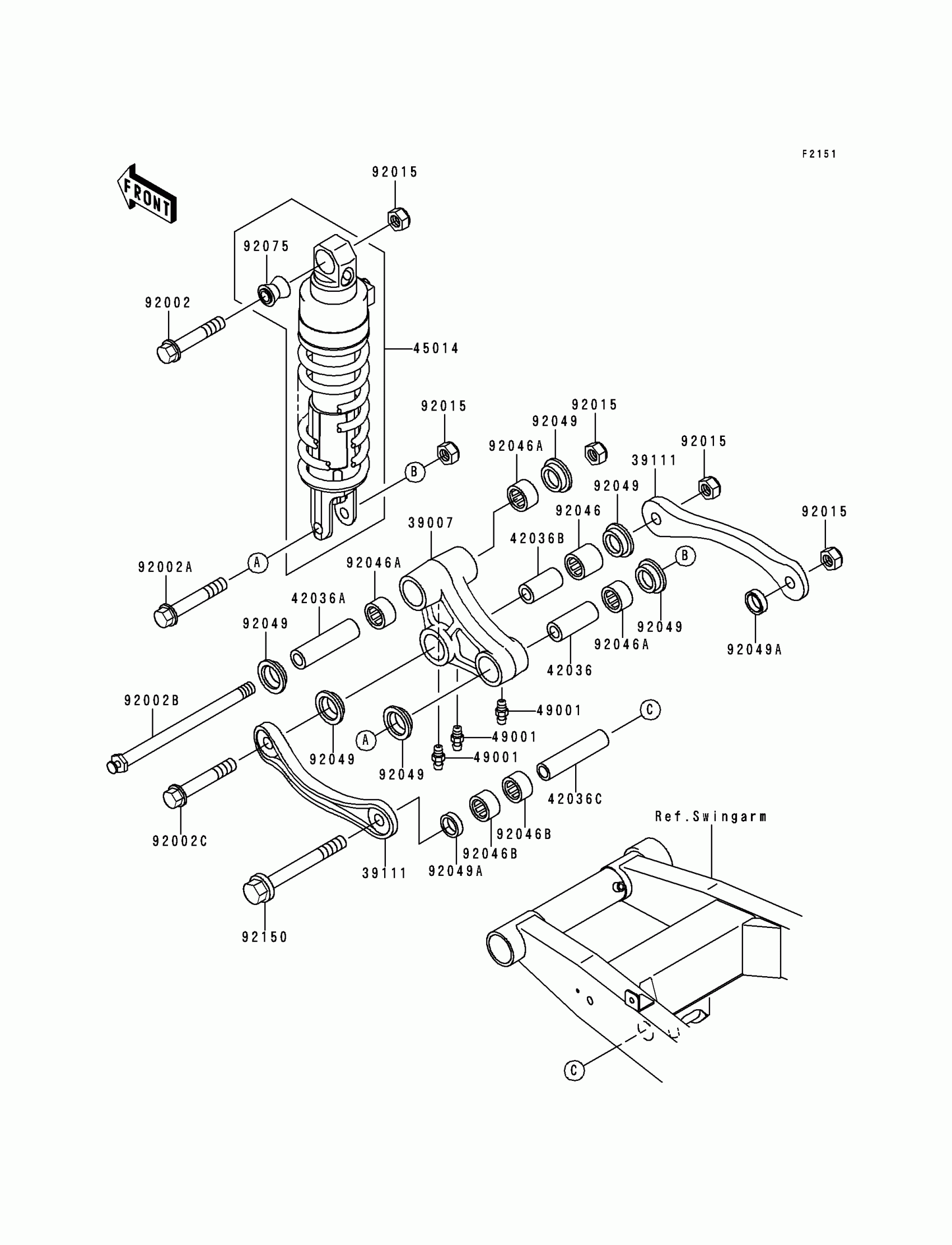

2000 Kawasaki ZR-7 Suspension/shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39007

ARM-SUSP,UNI TRAK

39007-1281

1
Out of stock

39111

ROD-TIE,SUSPENSION

39111-1142

1
Out of stock

42036

SLEEVE,12.1X20X32

42036-1077

1
Out of stock

42036A

SLEEVE,12.1X20X70

42036-1079

1
Out of stock

42036B

SLEEVE,12.1X20X50

42036-1111

1
Out of stock

42036C

SLEEVE,12.1X18X82

42036-1231

1
Out of stock

45014

SHOCKABSORBER,F.RED

45014-1722-CD

1
Out of stock

49001

NIPPLE-GREASE

49001-1051

1
Out of stock

92002

BOLT,12X48

92002-1052

1
Out of stock

92002A

BOLT,FLANGED,12X60

92002-1464

1
Out of stock

92002B

BOLT,SUSPENSION ARM,12MM

92002-1784

1
Out of stock

92002C

BOLT,SUSPENSION ARM,12MM

92002-1785

1
Out of stock

92015

NUT,LOCK,12MM,BLACK

92015-1190

1
Out of stock

92046

BEARING-NEEDLE,BM202726

92046-1110

1
Out of stock

92046A

BEARING-NEEDLE,BM202715

92046-1112

1
Out of stock

92046B

BEARING-NEEDLE,18BM2416

92046-1144

1
Out of stock

92049

SEAL-OIL,ARM

92049-1109

1
Out of stock

92049A

SEAL-OIL,KCR MF018N1

92049-1493

1
Out of stock

92075

DAMPER,SHOCKABSORBER

92075-1654

1
Out of stock

92150

BOLT,FLANGED,12X110

92150-1088

1
Out of stock
